Aiwa-DX700-cd-维修说明书手册含电器原理图

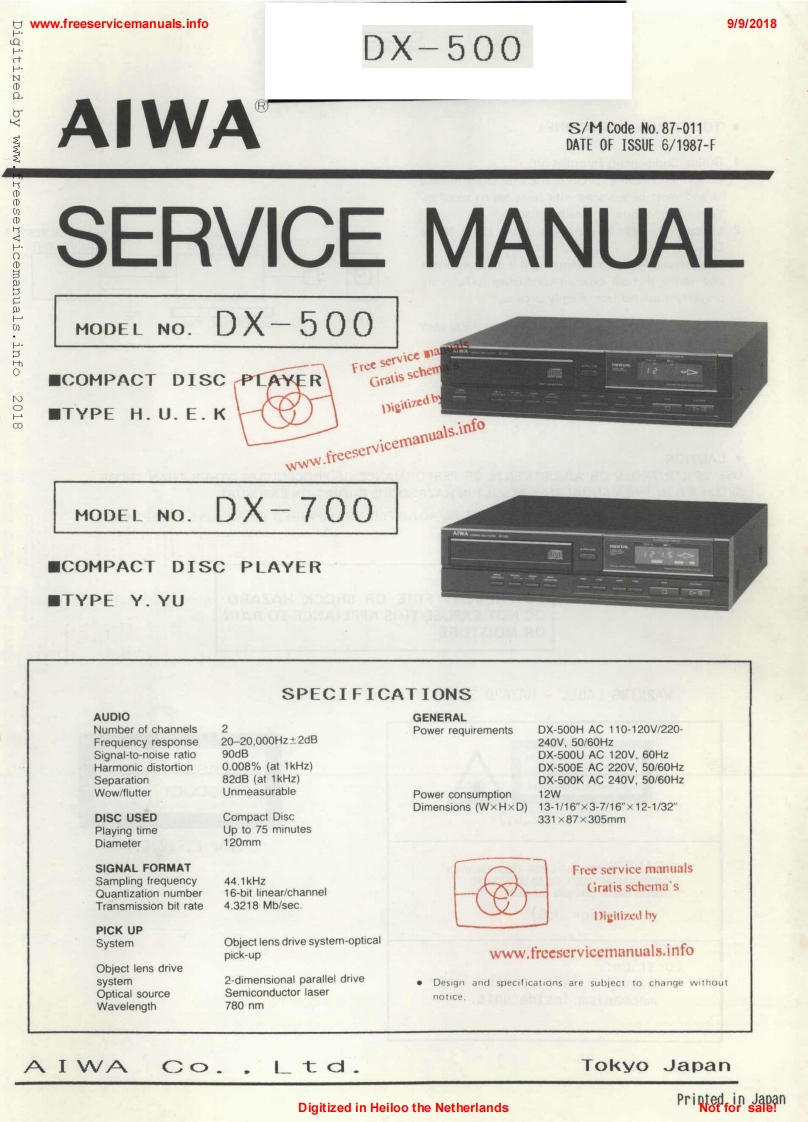

9/9/2018DX-500AIWAS/M Code No.87-011DATE OF ISSUE 6/1987-FeesrvicemanuaSERVICE MANUALMODEL NO.DX-500infoFree service ma■COMPACTDISCLAYERGratis schem■TYPE H.U.E.KDigitized bywww.freeservicemanuals.infoMODEL NO.DX-700■COMPACT DISC PLAYER■TYPE Y.YUSPECIFICATIONSAUDIOGENERALNumber of channels2Power requirementsDX-500HAC110-120V/220Frequency response20-20.000Hz±2dB240V.50/60HzSignal-to-noise ratio90dBDX-500U AC 120V,60HzHarmonic distortion0.008%(at1kHz】DX-500EAC220V,50/60HzSeparation82dB (at 1kHz)DX-500KAC240V,50/60HzWow/flutterUnmeasurablePower consumption12WDimensions (WxHxD)13-1/16×3-7/16"×12-1/32DISC USEDCompact Disc331×87×305mmPlaying timeUp to 75 minutesDiameter120mmSIGNAL FORMATFree service manualsSampling frequency44.1kHzQuantization number16-bit linear/channelGratis schema'sTransmission bit rate4.3218 Mb/sec.Digitized hyPICK UPSystemObject lens drive system-opticalpick-upwww.freeservicemanuals.infoObject lens drivesystem2-dimensional parallel drive.Design and specifications are subject to change withoutOptical sourceSemiconductor lasernotice.Wavelength780nmA IWA○○.L t d.Tokyo JapanDigitized in Heiloo the NetherlandsPrineo
