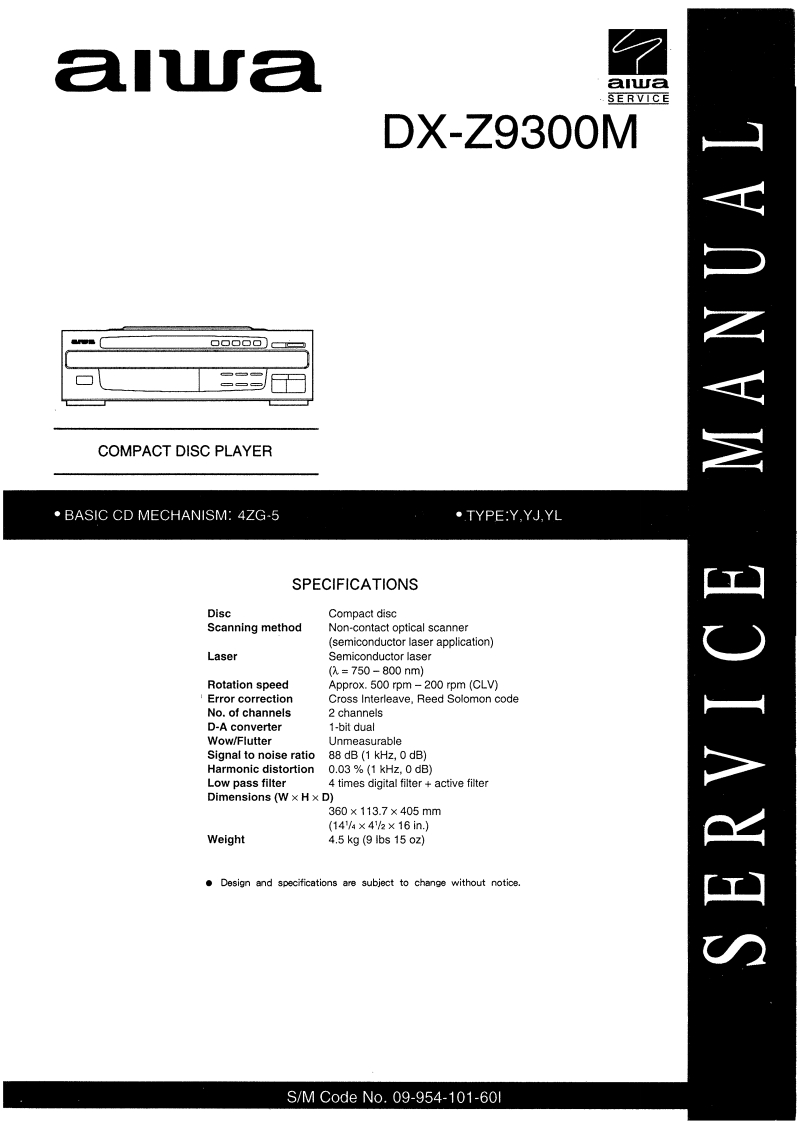

auaalwaSERVICEDX-Z9300MTYONYACOMPACT DISC PLAYERBASIC CD MECHANISM:4ZG-5·TYPE:Y,YJ,YLSPECIFICATIONSDiscCompact discScanning methodNon-contact optical scanner(semiconductor laser application)LaserSemiconductor laser(0=750-800nm)Rotation speedApprox.500 rpm-200 rpm (CLV)Error correctionCross Interleave,Reed Solomon codeNo.of channels2 channelsD-A converter1-bit dualWow/FlutterUnmeasurableSignal to noise ratic88 dB (1 kHz,0 dB)Harmonic distortion0.03%(1kHz.0dBLow pass filter4 times digital filter active filterDimensions(W×HxD)360×113.7×405mm(14/4×42×16in.)Weight4.5kg(9bs15oz）Design and specifications are subject to change without notice.HOIANISS/M Code No.09-954-101-60l
