Aiwa-HE501-htss-维修说明书手册含电器原理图

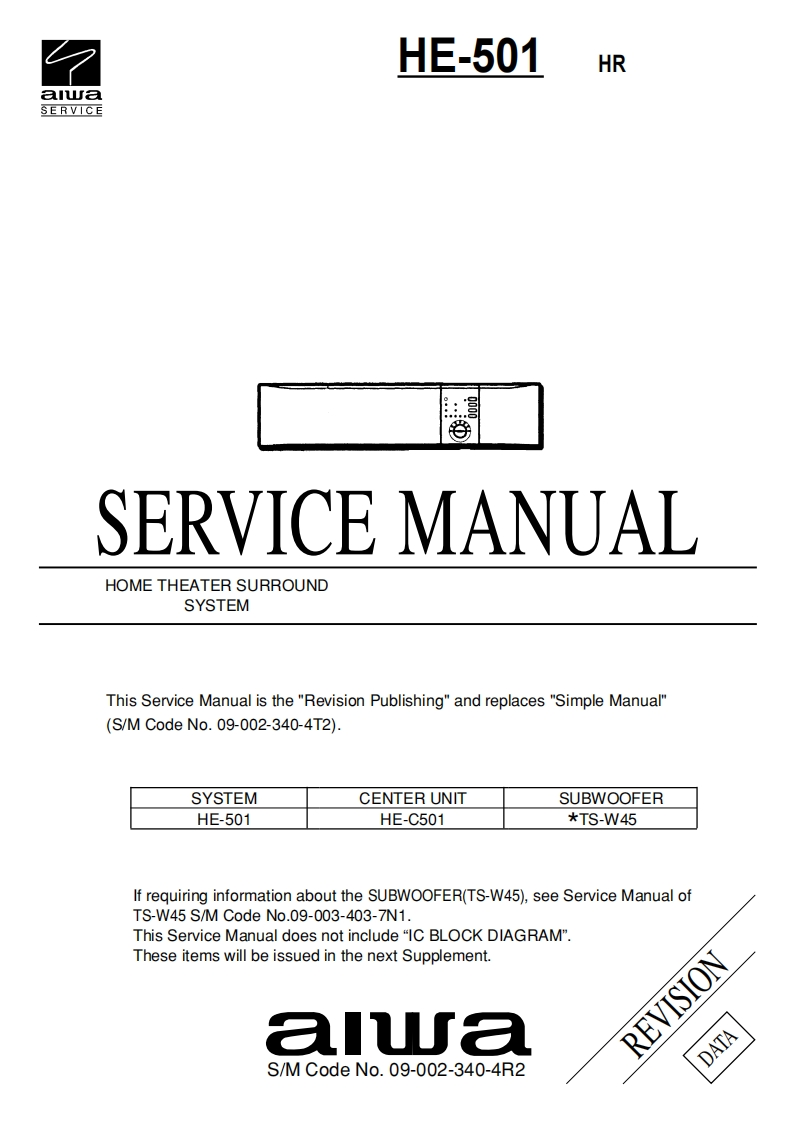

HE-501HRaiwaSERVICE爸SERVICE MANUALHOME THEATER SURROUNDSYSTEMThis Service Manual is the "Revision Publishing"and replaces "Simple Manual"(S/M Code No.09-002-340-4T2).SYSTEMCENTER UNITSUBWOOFERHE-501HE-C501*TS-W45If requiring information about the SUBWOOFER(TS-W45),see Service Manual ofTS-W45S/M Code No.09-003-403-7N1.This Service Manual does not include "IC BLOCK DIAGRAM".These items will be issued in the next Supplement.auaREVISIONDATAS/M Code No.09-002-340-4R2
