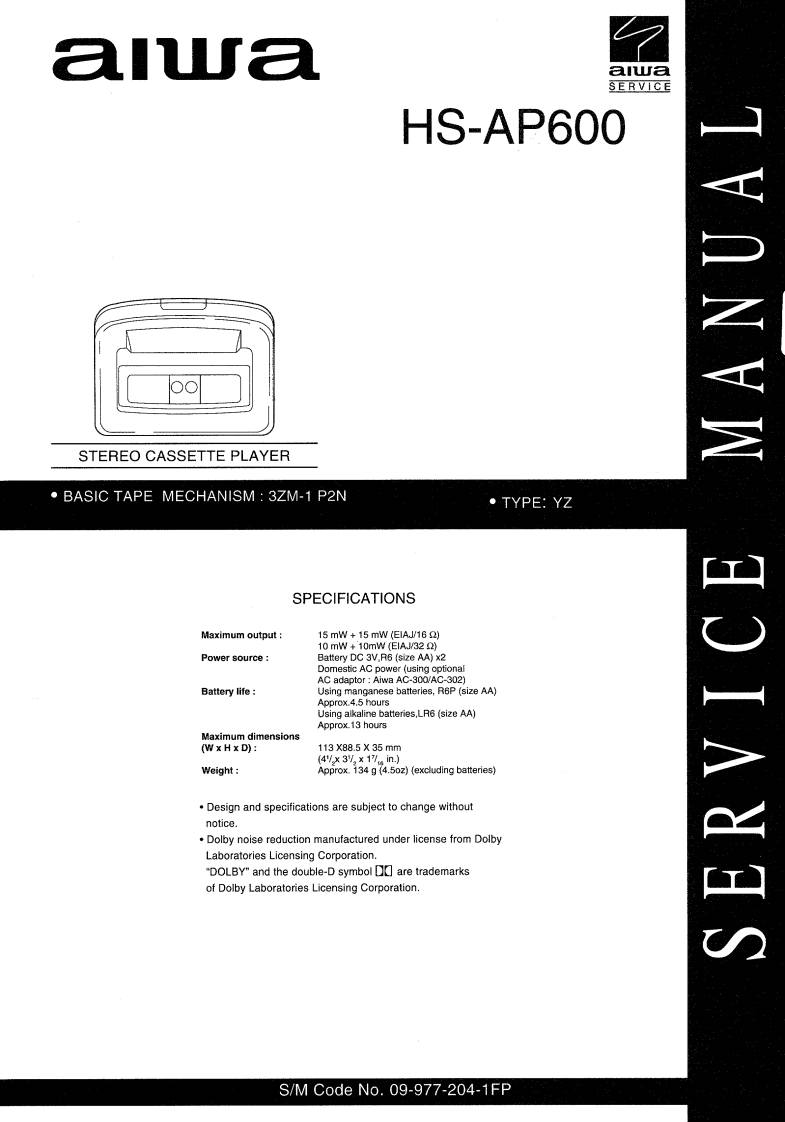

aluaaiwaSERVICEHS-AP600STEREO CASSETTE PLAYERBASIC TAPE MECHANISM:3ZM-1 P2N·TYPE:YZSPECIFICATIONSMaximum output15mw+15mW(EAJ/162)10 mW+10mW (EIAJ/32Power source:Battery DC 3V.R6 (size AA)x2Domestic AC power (using optionalAC adaptor Aiwa AC-300/AC-302)Battery life:Using manganese batteries,R6P(size AA)Approx.4.5 hoursUsing alkaline batteries,LR6 (size AA)Approx.13 hours113X88.5X35mm(4%x 3%x 1 in-)Weight:(4.5oz)(excluding batteries)Design and specifications are subject to change withoutnotice.Dolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation"DOLBY"and the double-D symbol are trademarksHOIANESof Dolby Laboratories Licensing Corporation.S/M Code No.09-977-204-1FP
