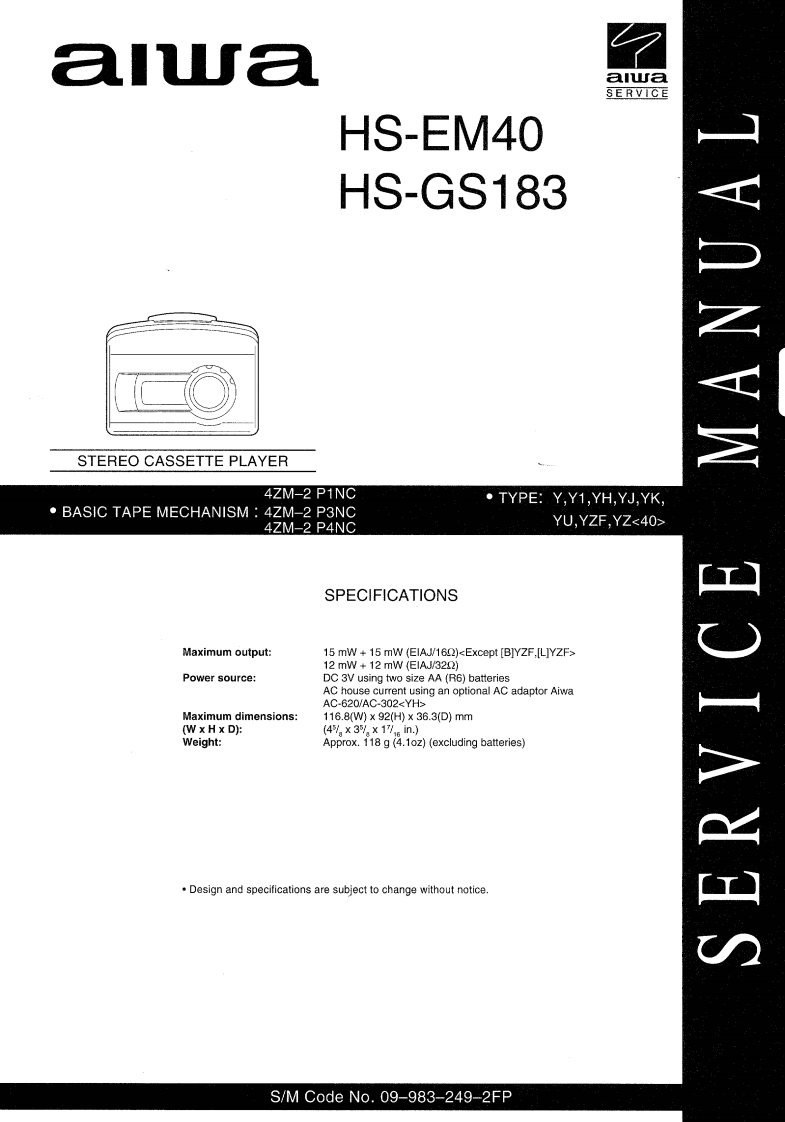

auaaiwaSERVICEHS-EM40HS-GS183IVANVWSTEREO CASSETTE PLAYER4ZM-2 P1NCTYPE:Y,Y1,YH,YJ,YK,BASIC TAPE MECHANISM 4ZM-2 P3NC4ZM-2 P4NCYU,YZF.YZ<40>SPECIFICATIONSMaximum output:15 mW +15 mW (EIAJ/160)12 mW+12 mW (EIAJ/320)Power source:DC 3V using two size AA(R6)batteriesAC house current using an optional AC adaptor AiwaAC-620/AC-302Maximum dimensions:116.8(WX92HX36.3D)mm(WxHx D):(4/.X3X11ein.)Weight:Approx.118g(4.1oz)(excluding batteries)Design and specifications are subject to change without notice.HOI ANaSS/M Code No.09-983-249-2FP
