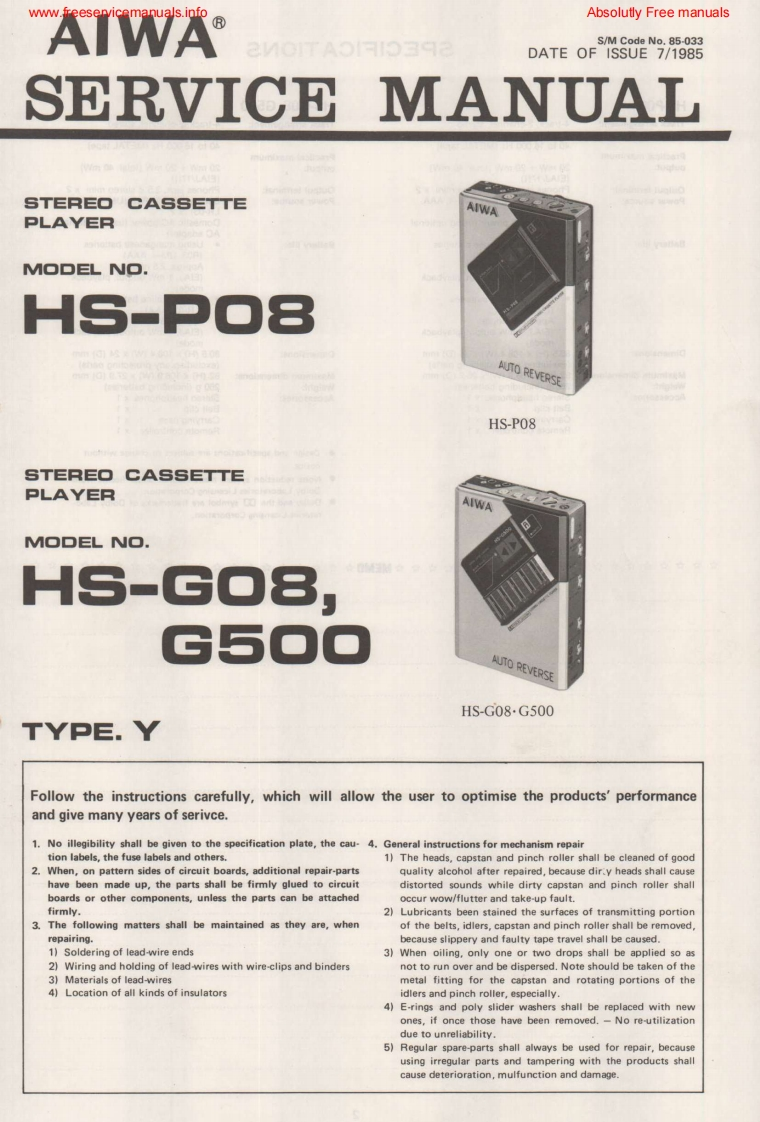

Absolutly Free manualsAIWAS/M Code No.85-033DATE OF ISSUE 7/1985SERVICEMANUALSTEREO CASSETTEAIWAPLAYERMODEL NO.HS-PO8AUTO REVERSEHS-P08STEREO CASSETTEPLAYERAIWAMODEL NO.HS-G08,G5OOAUTO REVERSEHS-G08·G500TYPE.YFollow the instructions carefully,which will allow the user to optimise the products'performanceand give many years of serivce.1.No illegibility shall be given to the specification plate,the cau-4.General instructions for mechanism repairtion labels,the fuse labels and others.1)The heads,capstan and pinch roller shall be cleaned of good2.When,on pattern sides of circuit boards,additional repair-partsquality alcohol after repaired,because dir.y heads shall causehave been made up,the parts shall be firmly glued to circuitdistorted sounds while dirty capstan and pinch roller shallboards or other components,unless the parts can be attachedoccur wow/flutter and take-up fault.firmly.2)Lubricants been stained the surfaces of transmitting portion3.The following matters shall be maintained as they are,whenof the belts,idlers,capstan and pinch roller shall be removed,repairing.because slippery and faulty tape travel shall be caused.1)Soldering of lead-wire ends3)When oiling,only one or two drops shall be applied so as2)Wiring and holding of leadwires with wire-clips and bindersnot to run over and be dispersed.Note should be taken of the3)Materials of lead-wiresmetal fitting for the capstan and rotating portions of the4)Location of all kinds of insulatorsidlers and pinch roller,especially.4)E-rings and poly slider washers shall be replaced with newones,if once those have been removed.-No re-utilizationdue to unreliability.5)Regular spare-parts shall always be used for repair,becauseusing irregular parts and tampering with the products shallcause deterioration,mulfunction and damage.
