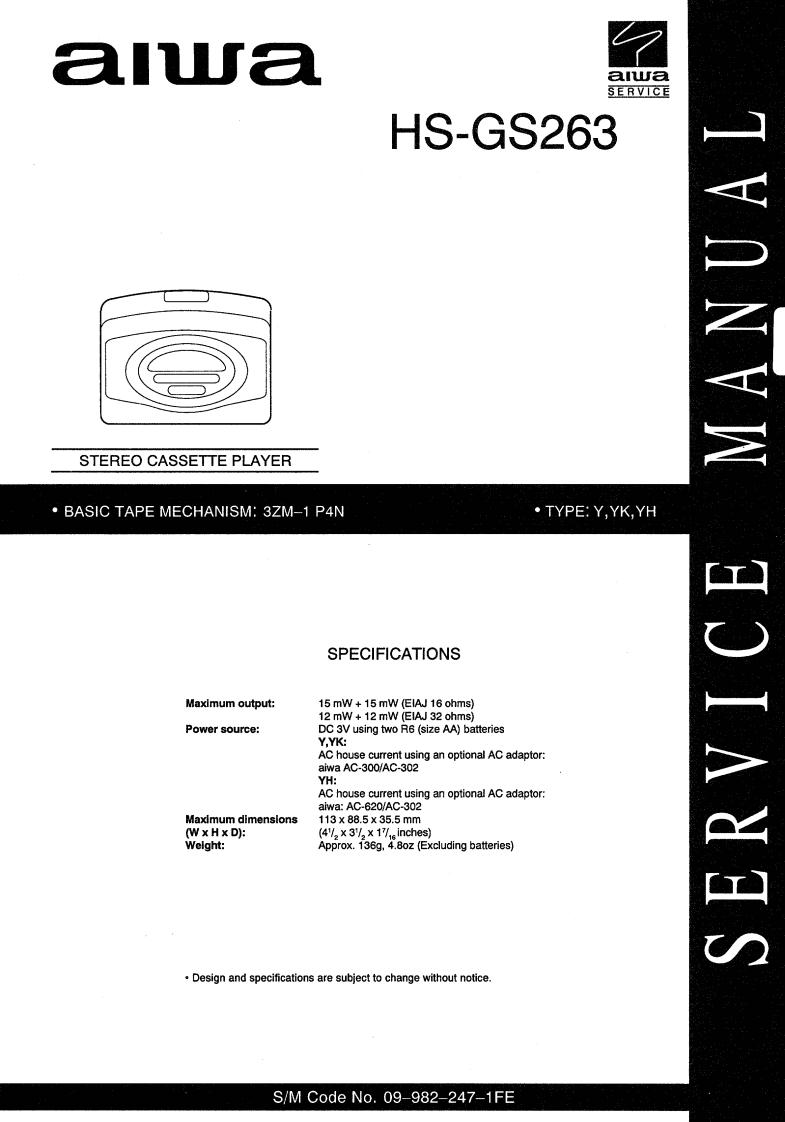

auaalaSERVICEHS-GS263TVO NVWSTEREO CASSETTE PLAYERBASIC TAPE MECHANISM:3ZM-1 P4N·TYPE:Y,YK,YHSPECIFICATIONSMaximum output:15 mW 15 mW (EIAJ 16 ohms)12mW+12mW但lAJ32ohmsPower source:DC 3V using two R6(size AA)batteriesY.YK:AC house current using an optional AC adaptor:aiwa AC-300/AC-302YH:AC house current using an optional AC adaptor:aiwa:AC-620/AC-302Maximum dimensions113X88.5X35.5mm%6Xo咖(4%x 3/2 x 1 inches)Approx.136g,4.8oz (Excluding batteries)Design and specifications are subject to change without noticeS/M Code No.09-982-247-1FE
