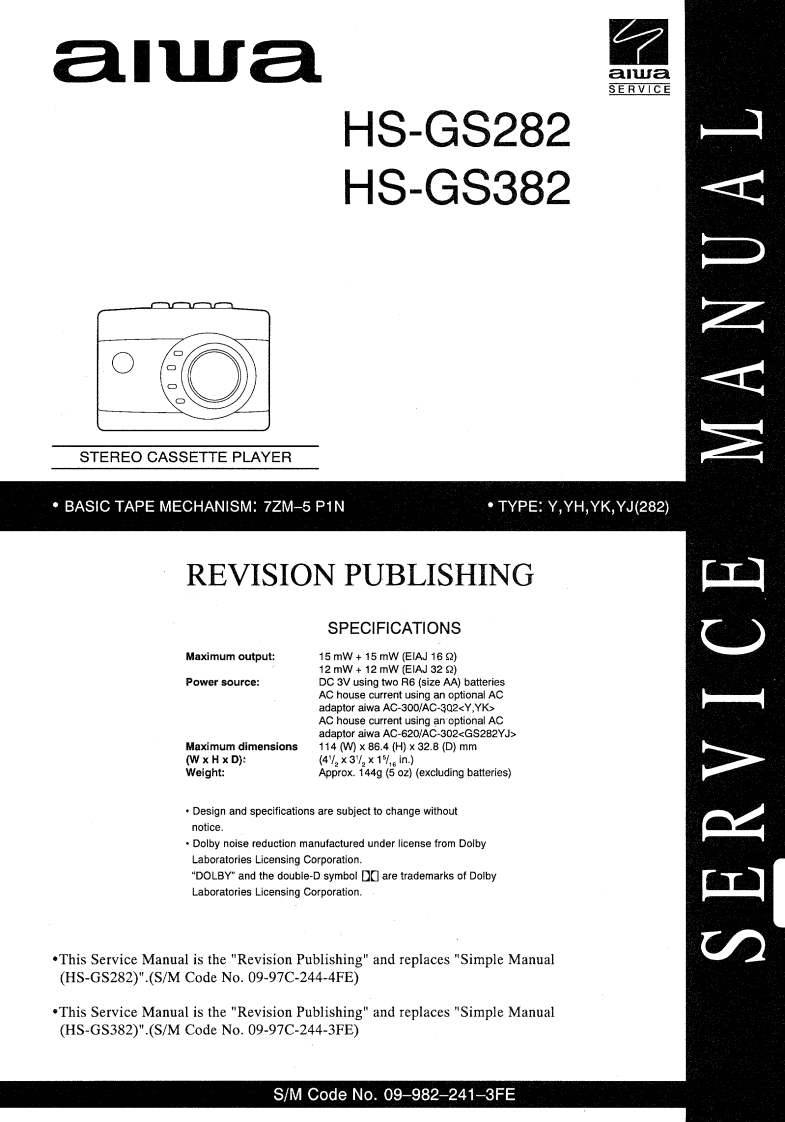

aluaaI山aSERVICEHS-GS282HS-GS382TV O N V WSTEREO CASSETTE PLAYERBASIC TAPE MECHANISM:7ZM-5 P1N.TYPE:Y,YH,YK,YJ(282)REVISION PUBLISHINGSPECIFICATIONSMaximum output:15 mW 15 mW (EIAJ 16 2)12 mW 12 mW (EIAJ 32Power source:DC 3V using two R6(size AA)batteriesAC house current using an optional ACadaptor aiwa AC-300/AC-302AC house current using an optional ACadaptor aiwa AC-620/AC-302Maximum dimensions114WMX86.4(H×32.8(D)mmWxHxD)咔4y2×3/2×11,sln)Weight:Approx.144g (5 oz)(excluding batteries)Design and specifications are subject to change withoutnotice.Dolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation."DOLBY"and the double-D symbol are trademarks of DolbyLaboratories Licensing Corporation..This Service Manual is the "Revision Publishing"and replaces "Simple Manual(HS-GS282)".(S/M Code No.09-97C-244-4FE).This Service Manual is the "Revision Publishing"and replaces "Simple Manual(HS-GS382)".(S/M Code No.09-97C-244-3FE)S/M Code No.09-982-241-3FE
