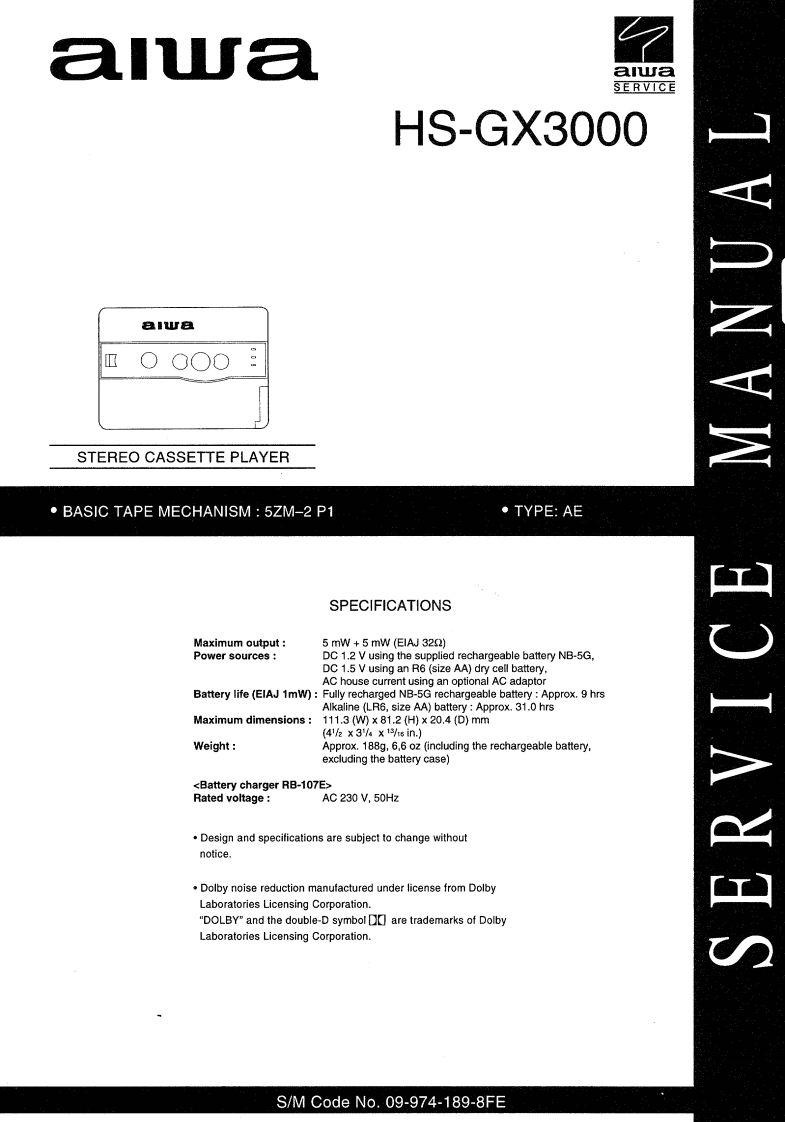

auaaiwaSERVICEHS-GX3000aM山aO0○OTV ONVWSTEREO CASSETTE PLAYERBASIC TAPE MECHANISM:5ZM-2 P1·TYPE:AESPECIFICATIONSMaximum output5 mW +5 mW (EIAJ 320)Power sourcesDC 1.2 V using the supplied rechargeable battery NB-5G,DC 1.5 V using an R6(size AA)dry cell battery.AC house current using an optional AC adaptorBattery life(EIAJ 1mW):Fully recharged NB-5G rechargeable battery:Approx.9 hrsAlkaline (LR6,size AA)battery Approx.31.0 hrsMaximum dimensions1113(W0x81.2H)x20.4(D)mm(41/2 x 3%/x 13/t6 in.)Weight:Approx.188g,6,6 oz (including the rechargeable battery,excluding the battery case)Rated voltageAC 230 V,50HzDesign and specifications are subject to change withoutnotice.Dolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation'DOLBY"and the double-D symbol D are trademarks of DolbyLaboratories Licensing Corporation.S/M Code No.09-974-189-8FE
