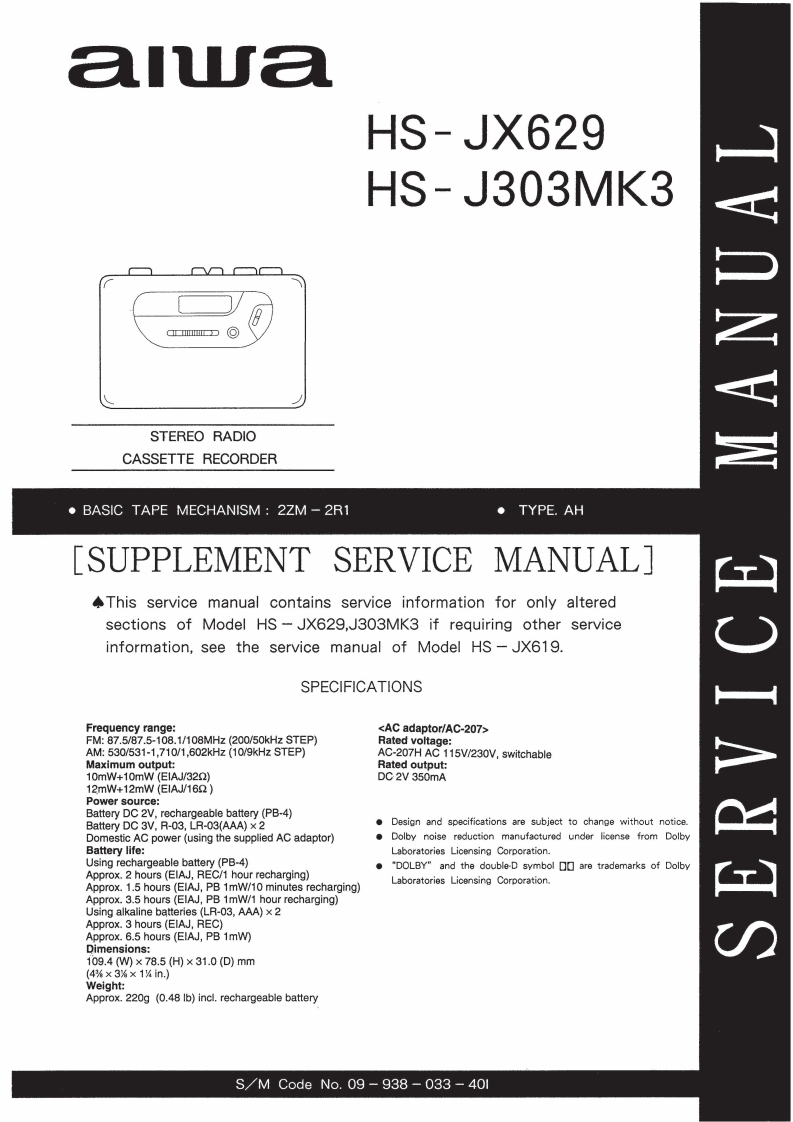

aaHS-JX629HS-J303MK3arOTVONVNSTEREO RADIOCASSETTE RECORDERBASIC TAPE MECHANISM:2ZM-2R1·TYPE.AH「SUPPLEMENT SERVICEMANUALIThis service manual contains service information for only alteredsections of Model HS-JX629,J303MK3 if requiring other serviceinformation,see the service manual of Model HS-JX619.SPECIFICATIONSFrequency range:FM87.5/87.5-108.1/108MHz(200/50 kHz STEP)Rated voltage:At:530/531-1,710/1,602kHz(10/9 KHz STEP)AC-207H AC 115V/230V,switchableMaximum output:Rated output10mW+10mW(EIAJ/322)DC 2V 350mA12mW+12mW (EIAJ/162Power source:Battery DC 2V,rechargeable battery (PB-4)Battery DC 3V,R-03,LR-03(AAA)x 2Design and specifications are subject to change without notice.Domestic AC power (using the supplied AC adaptor)Dolby noise reduction manufactured under license from DolbyBattery life:Laboratories Licensing Corporation.Using rechargeable battery (PB-4)"DOLBY"and the double-D symbol o are trademarks of DolbyApprox.2 hours (EIAJ,REC/1 hour recharging)Laboratories Licensing Corporation.H0IAHSApprox.1.5 hours(EIAJ,PB 1mW/10 minutes recharging)Approx.3.5 hours(EIAJ,PB 1mW/1 hour recharging)Using alkaline batteries (LR-03,AAA)x 2Approx.3 hours (EIAJ,REC)Approx.6.5 hours (ELAJ,PB 1mW)Dimensions:109.4W0×78.5(H)×31.0(D)mm(4⅓×3%×1%in.)】Weight:Approx.220g (0.48 Ib)incl.rechargeable batteryS/M Code No.09-938-033-401
