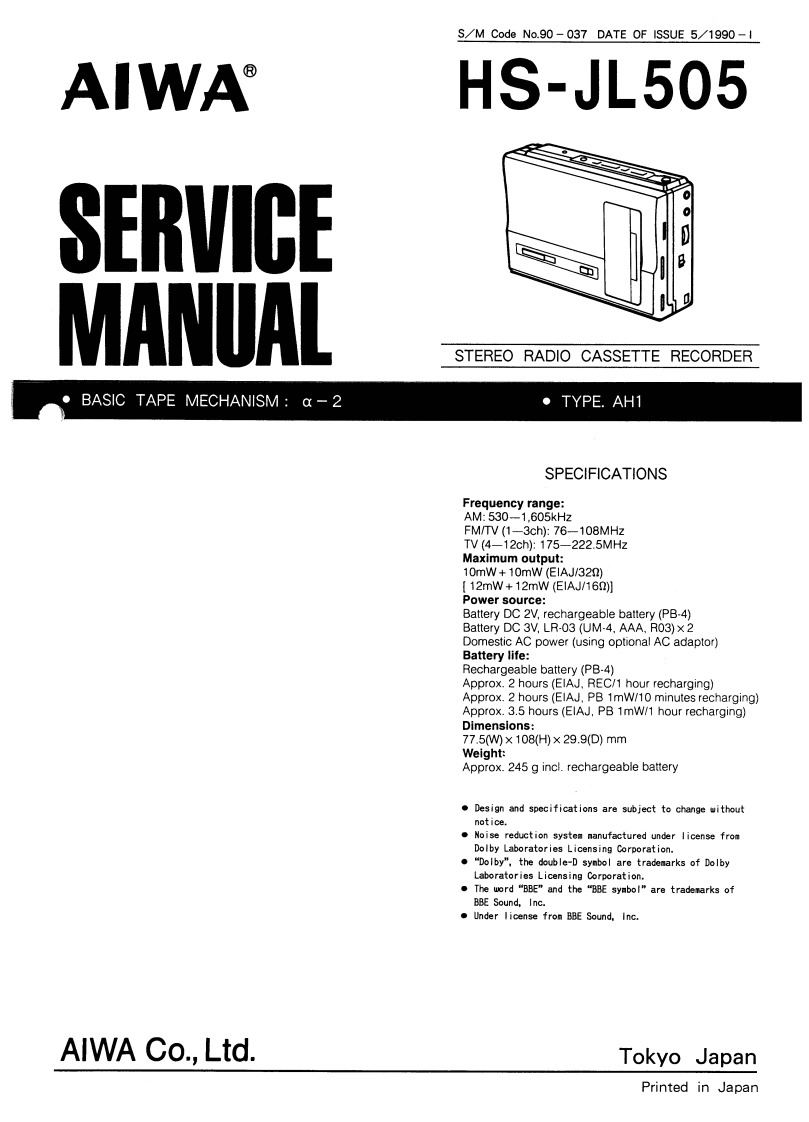

S/M Code No.90-037 DATE OF ISSUE 5/1990-1AIWAHS-JL505SERVICEMANUALSTEREO RADIO CASSETTE RECORDER●BASIC TAPE MECHANISM:a -2◆TYPE.AH1SPECIFICATIONSFrequency range:AM:530-1.605kHzFM/TV (1-3ch):76-108MHzTV(4-12chy:175-222.5MHzMaximum output:10mW+10mW(E1AJ/32)【12mW+12mW(E1AJ/16叨Power source:Battery DC 2V,rechargeable battery (PB.4)Battery DC 3V,LR-03 (UM-4,AAA,R03)x 2Domestic AC power (using optional AC adaptor)Battery life:Rechargeable battery (PB-4)Approx.2 hours (EIAJ.REC/1 hour recharging)Approx.2 hours(EIAJ.PB 1mW/10 minutes recharging)Approx.3.5 hours (EIAJ,PB 1mW/1 hour recharging)Dimensions:77.5W0×108H×29.9(D)mmWeight:Approx.245 g incl.rechargeable batteryDesign and specifications are subject to change withoutnotice.Noise reduction system nanufactured under license fromDolby Laboratories Licensing Corporation."Dolby",the double-D symbol are trademarks of DolbyLaboratories Licensing Corporation.The word "BBE"and the "BBE symbol"are traderarks ofBBE Sound,Inc..Under license from BBE Sound,Inc.AIWA Co.,LtdTokyo JapanPrinted in Japan
