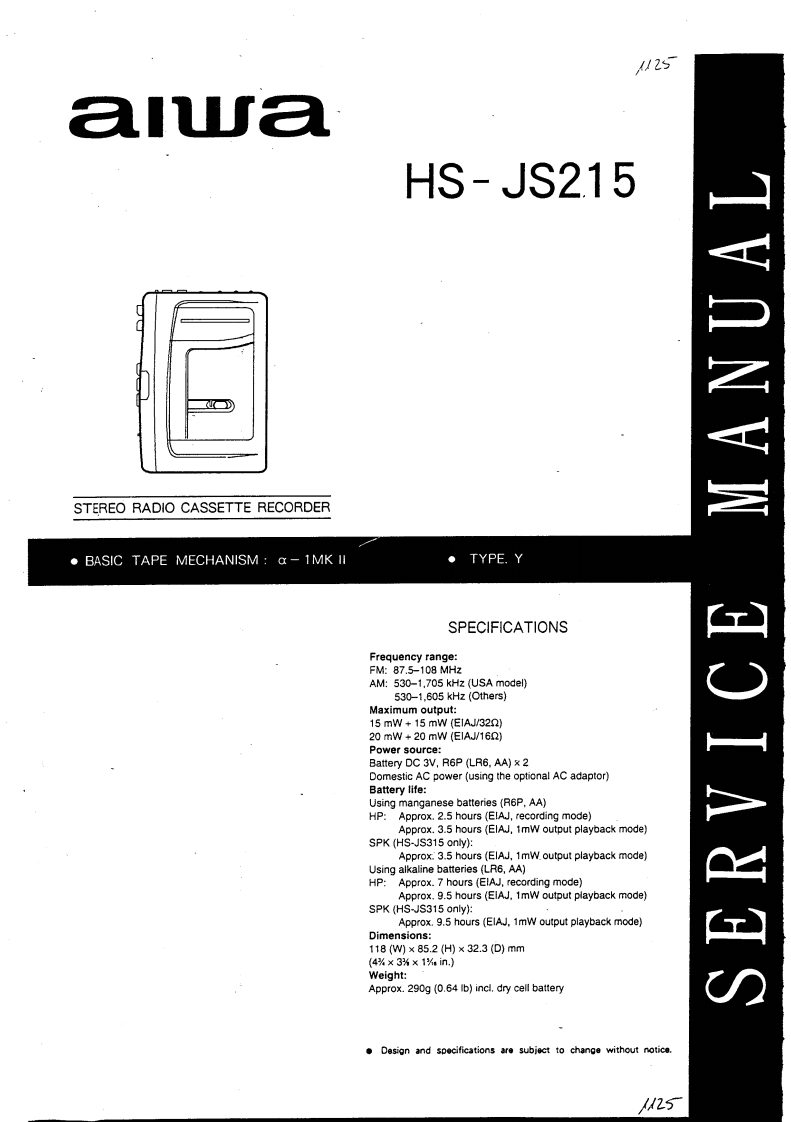

12saluaHS-JS215、IVON V NSTEREO RADIO CASSETTE RECORDERBASIC TAPE MECHANISM a-1MK IITYPE.YSPECIFICATIONSFrequency range:FM:87.5-108MHzAM:530-1,705 kHz (USA model)530-1.605kHz(0 thers)Maximum output:15 mW +15 mW (EIAJ/32Q)20 mW+20 mW (EIAJ/16Q)Power source:Battery DC 3V,R6P (LR6.AA)x 2Domestic AC power (using the optional AC adaptor)Battery life:Using manganese batteries (R6P.AA)HP:Approx.2.5 hours (EIAJ,recording mode)Approx.3.5 hours (EIAJ,1mW output playback mode)SPK (HS-JS315 onty):Approx.3.5 hours (EIAJ,1mW.output playback mode)Using alkaline batteries (LR6,AA)HP.Approx.7 hours (EIAJ,recording mode)Approx.9.5 hours (EIAJ.1mW output playback mode)SPK (HS-JS315 only):Approx.9.5 hours (EIAJ,1mW output playback mode)d01AHaSDimensions:118(W)×85.2(H)×32.3(Dymm(4%×3%×14.in.)Weight:Approx.290g (0.64 Ib)incl.dry cell batteryDesign and specifications are subject tochangewithout notice1A25
