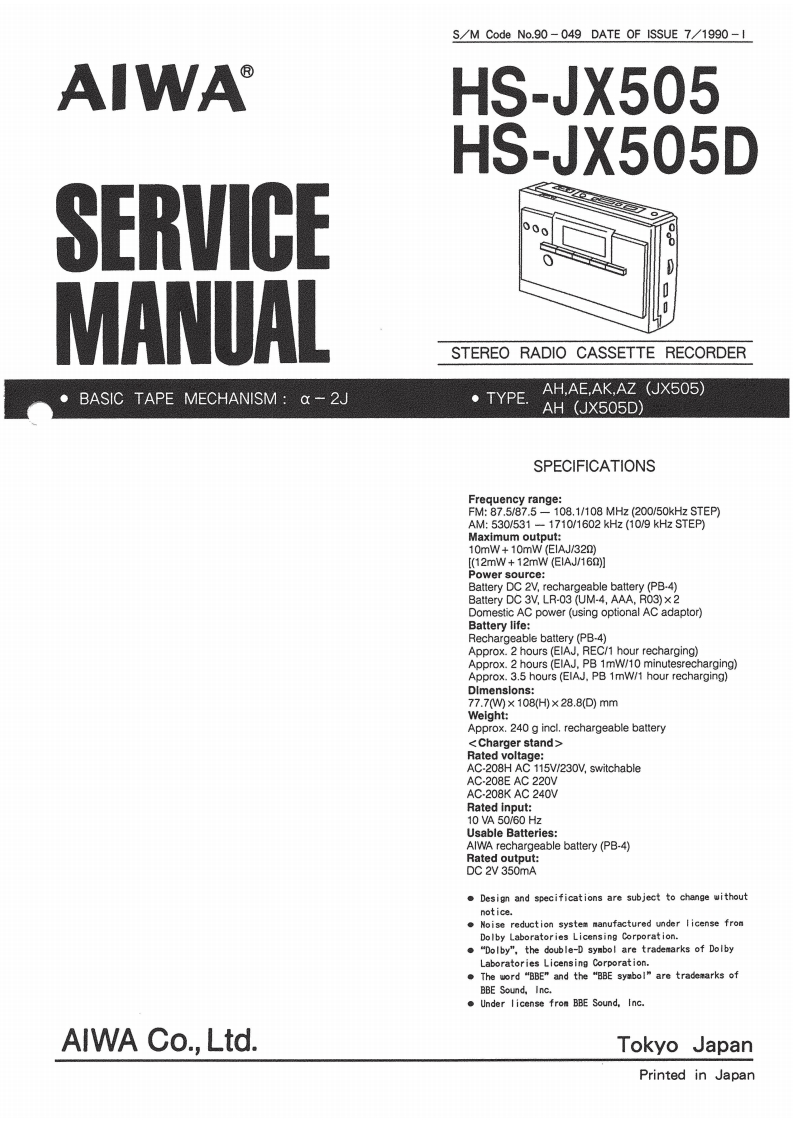

S/M Code No.90-049 DATE OF ISSUE 7/1990-1AIWAHS-JX505HS-JX505DSERVICEMANLALSTEREO RADIO CASSETTE RECORDERBASIC TAPE MECHANISM:a-2JAH,AE,AK,AZ (JX505)·TYPE.AH (JX505D)SPECIFICATIONSFrequency range:FM:87.5/87.5-108.1/108MHz(200/50 kHz STEP)AM:530/531-1710/1602kHz(10/9 kHz STEP)Maximum output:10mW+10mW (EIAJ/320)[(12mw+12mW(EIAJ/16)Power source:Battery DC 2V,rechargeable battery (PB-4)Battery DC 3V,LR-03 (UM-4,AAA,R03)x2Domestic AC power (using optional AC adaptor)Battery life:Rechargeable battery (PB-4)Approx.2 hours (EIAJ.REC/1 hour recharging)Approx.2 hours(EIAJ.PB 1mW/10 minutesrecharging)Approx.3.5 hours (EIAJ.PB 1mW/1 hour recharging)Dlmenslons:77.7WM0×108(H)×28.8(D)mmWeight由Approx.240 g incl.rechargeable batteryRated voltage:AC-208H AC 115V/230V,switchableAC-208E AC 220VAC-208K AC 240VRated input:10VA50/60HzUsable Batteries:AlWA rechargeable battery (PB-4)Rated output:DC 2V 350mA.Design and specifications are subject to change withoutnotice..Noise reduction system manufactured under license fromDolby Laboratories Licensing Corporation."Dolby",the double-D symbol are trademarks of DolbyLaboratories Licensing Corporation.The word "BBE"and the "BBE syabol"are tradesarks ofBBE Sound,Inc.Under license from BBE Sound,IncAIWA Co.,Ltd.Tokyo JapanPrinted in Japan
