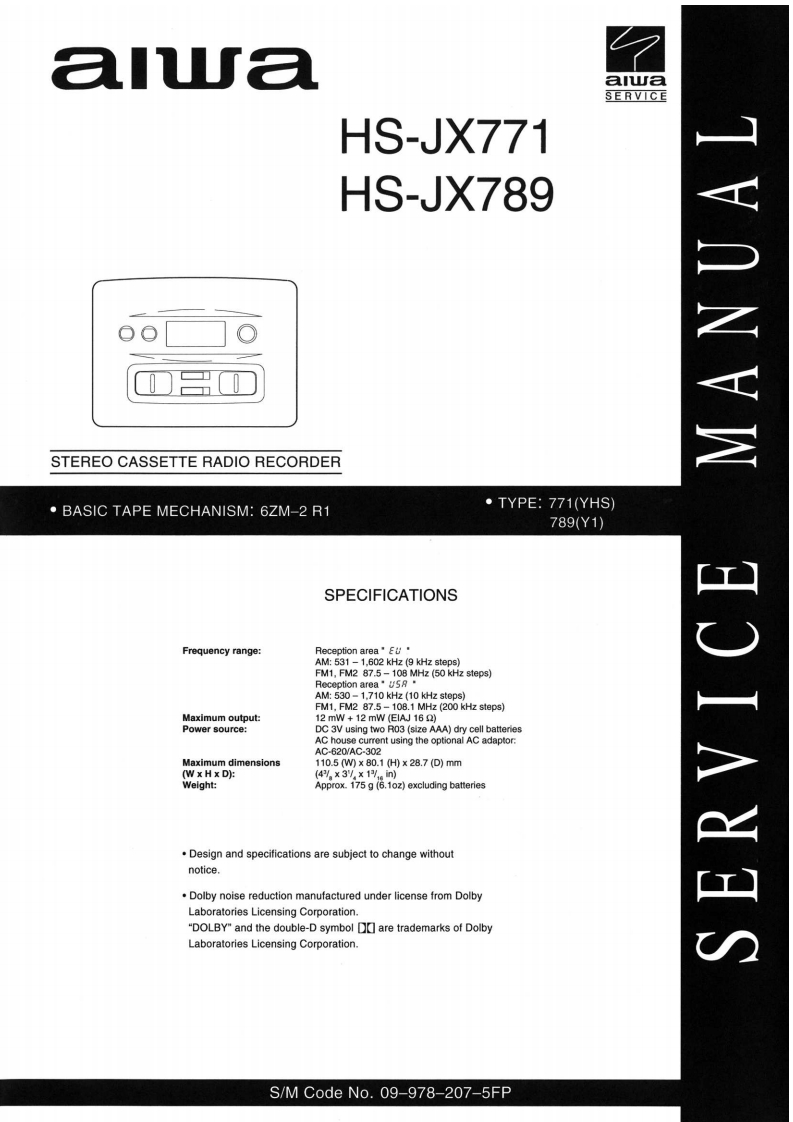

aluaaI山aSERVICEHS-JX771HS-JX789TVONVWSTEREO CASSETTE RADIO RECORDERBASIC TAPE MECHANISM:6ZM-2 R1·TYPE:771(YHS)789(Y1)SPECIFICATIONSFrequency range:Reception area"EU·AM:531-1,602 kHz (9 KHz steps)FM1,FM2 87.5-108 MHz (50 kHz steps)日c0 otion area5月"AM:530-1,710kH(10kH5tepS)FM1,FM2 87.5-108.1 MHz(200 kHz steps)12mW+12mw(EAW16到DC 3V using two R03(size AAA)dry cell batteriesAC house current using the optional AC adaptor:AC-620AC-302Maximum dimensions110.5WMx80.1H)×28.7(D)mm4%x3到x1以Weight:Approx.175 g(6.1oz)excluding batteriesDesign and specifications are subject to change withoutnotice.HoIANaSDolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation."DOLBY"and the double-D symbol are trademarks of DolbyLaboratories Licensing CorporationS/M Code No.09-978-207-5FP
