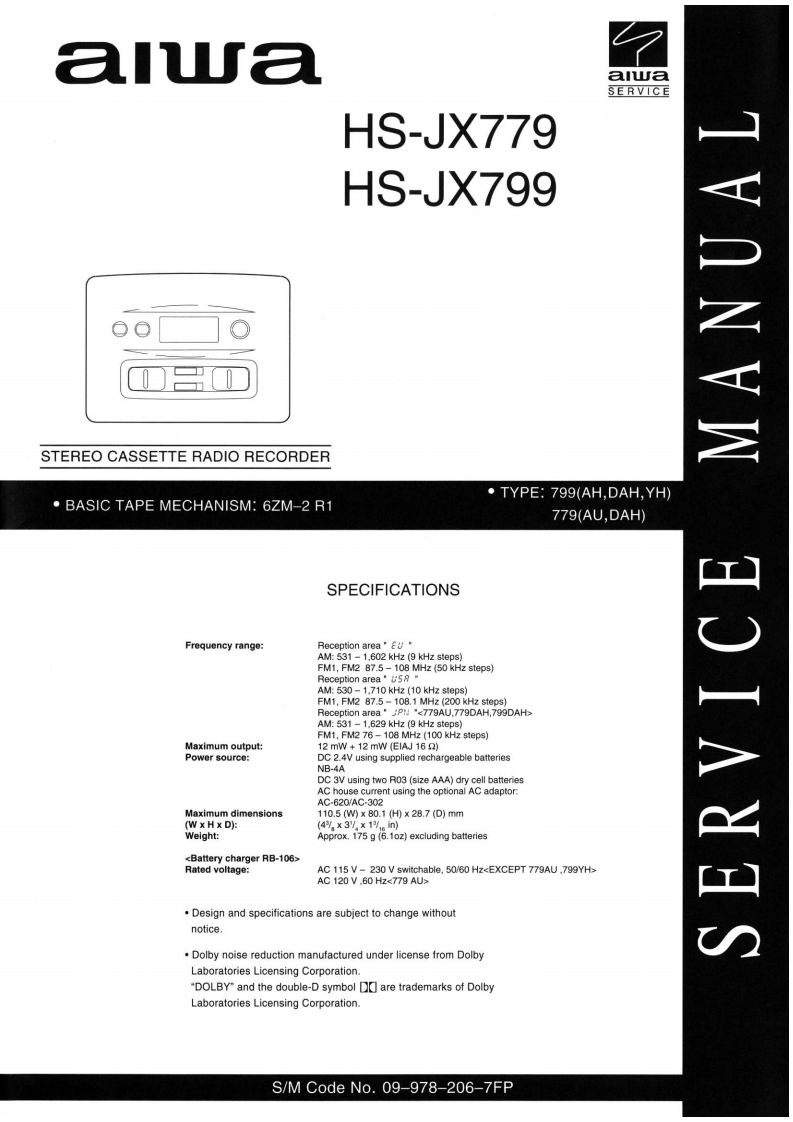

aiwaSERVICEHS-JX779HS-JX799TVONYWSTEREO CASSETTE RADIO RECORDERTYPE:799(AH,DAH,YH)BASIC TAPE MECHANISM:6ZM-2 R1779(AU,DAH)SPECIFICATIONSFrequency range:Reception area'E()Reception area·USRAM530-1,710k(10kH2seps)FM1,FM2 87.5-108.1 MHz (200 kHz steps)Reception area PN*<779AU.779DAH.799DAH>AM:531-1,629 kHz (9 kHz steps)FM1,FM2 76-108 MHz (100 kHz steps)12 mW +12 mW (EIAJ 16 Q)DC 2.4V using supplied rechargeable batteriesNB-4ADC 3V using two R03(size AAA)dry cell batteriesAC house current using the optional AC adaptor:AC-620/AC-302Maximum dimensions110.5(W0X80.1Hx28.7(D)mmAC 115 V-230 V switchable,50/60 HzAC120V.60Hz<779AU>A01AdASDesign and specifications are subject to change withoutnoticeDolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation."DOLBY"and the double-D symbol Do are trademarks of DolbyLaboratories Licensing CorporationS/M Code No.09-978-206-7FP
