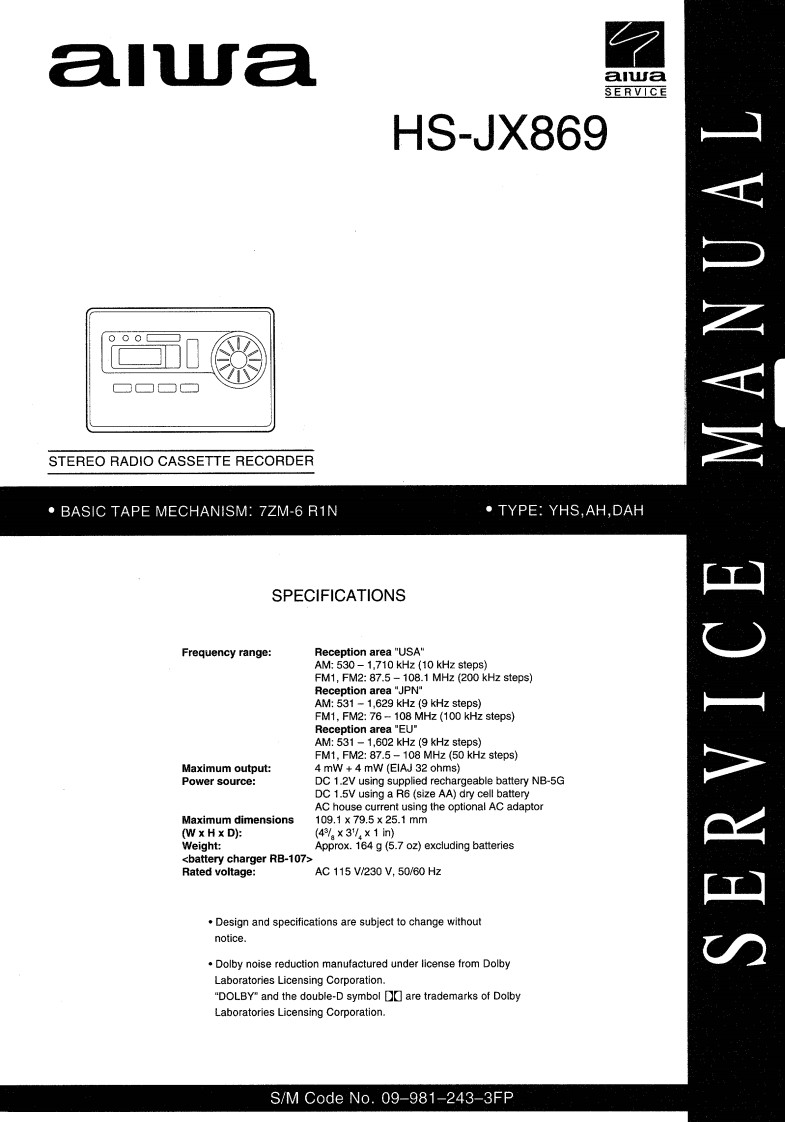

auaaiwaSERVICEHS-JX869TVO NVWSTEREO RADIO CASSETTE RECORDERBASIC TAPE MECHANISM:7ZM-6 R1N·TYPE:YHS,AH,DAHSPECIFICATIONSFrequency range:Reception area "USA"AM:530-1,710 kHz (10 kHz steps)FM1,FM2:87.5-108.1 MHz (200 kHz steps)Reception area"JPN"AM:531 -1,629 kHz (9 kHz steps)FM1,FM2:76-108 MHz (100 kHz steps)Reception area "EU"AM:531-1,602 kHz (9 kHz steps)FM1,FM2:87.5-108 MHz(50 kHz steps)Maximum output:4 mW+4 mW(EIAJ 32 ohms)Power source:DC 1.2V using supplied rechargeable battery NB-5GDC 1.5V using a R6(size AA)dry cell batteryAC house current using the optional AC adaptorMaximum dimensions109.1x79.5×25.1mm(W x H X D):(4a×3'y,×1n)Weight:Approx.164 g(5.7 oz)excluding batteriesRated voltage:AC115V230V,50/60HzHOIANaSDesign and specifications are subject to change withoutnotice.Dolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation'DOLBY"and the double-D symbol Do are trademarks of DolbyLaboratories Licensing CorporationS/M Code No.09-981-243-3FP
