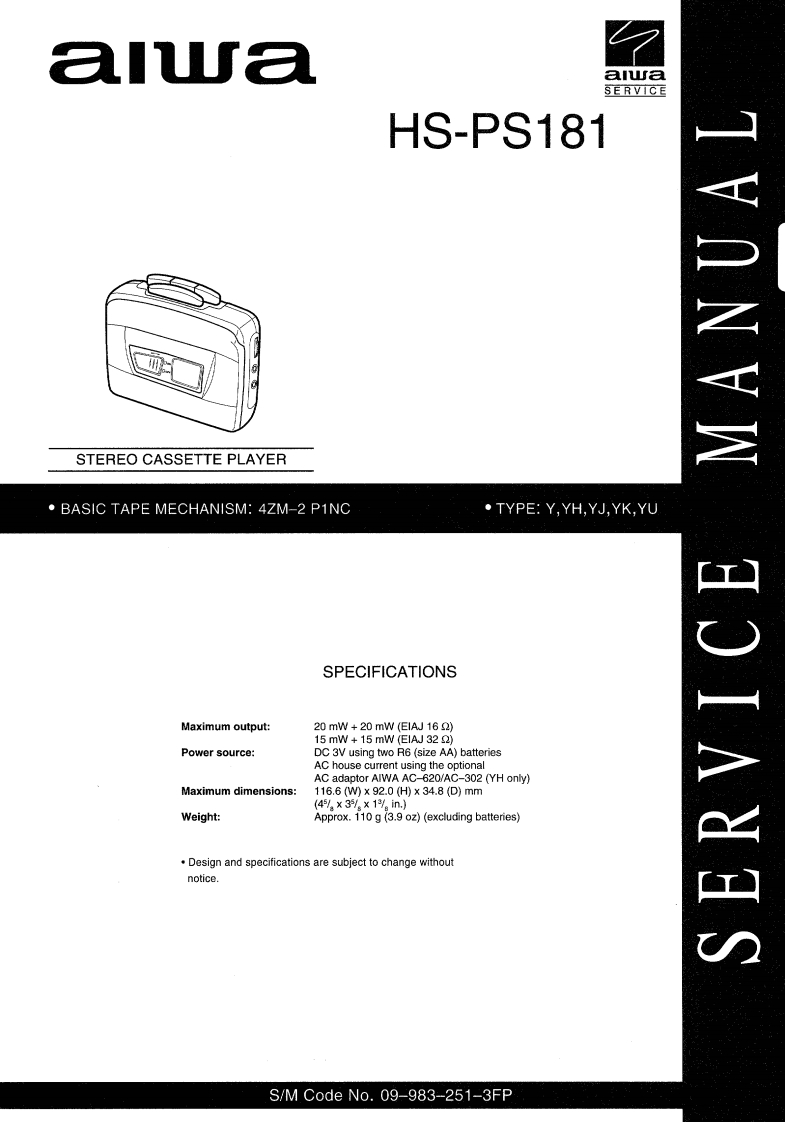

auaaI山aSERVICEHS-PS181TVONVWSTEREO CASSETTE PLAYERBASIC TAPE MECHANISM:4ZM-2 P1NC·TYPE:Y,YH,YU,YK,YUSPECIFICATIONSMaximum output:20 mW +20 mW (EIAJ 1615 mW +15 mW(EIAJ 32 Q)Power source:DC 3V using two R6 (size AA)batteriesAC house current using the optionalAC adaptor AIWA AC-620/AC-302 (YH only)Maximum dimensions:116.6(W0X92.0H)X34.8(D)mm(45/×3到。×1y。in.)Weight:Approx.110g(3.9 oz)(excluding batteries)Design and specifications are subject to change withoutnoticeHOIANSS/M Code No.09-983-251-3FP
