Aiwa-HSPS191-tape-维修说明书手册含电器原理图

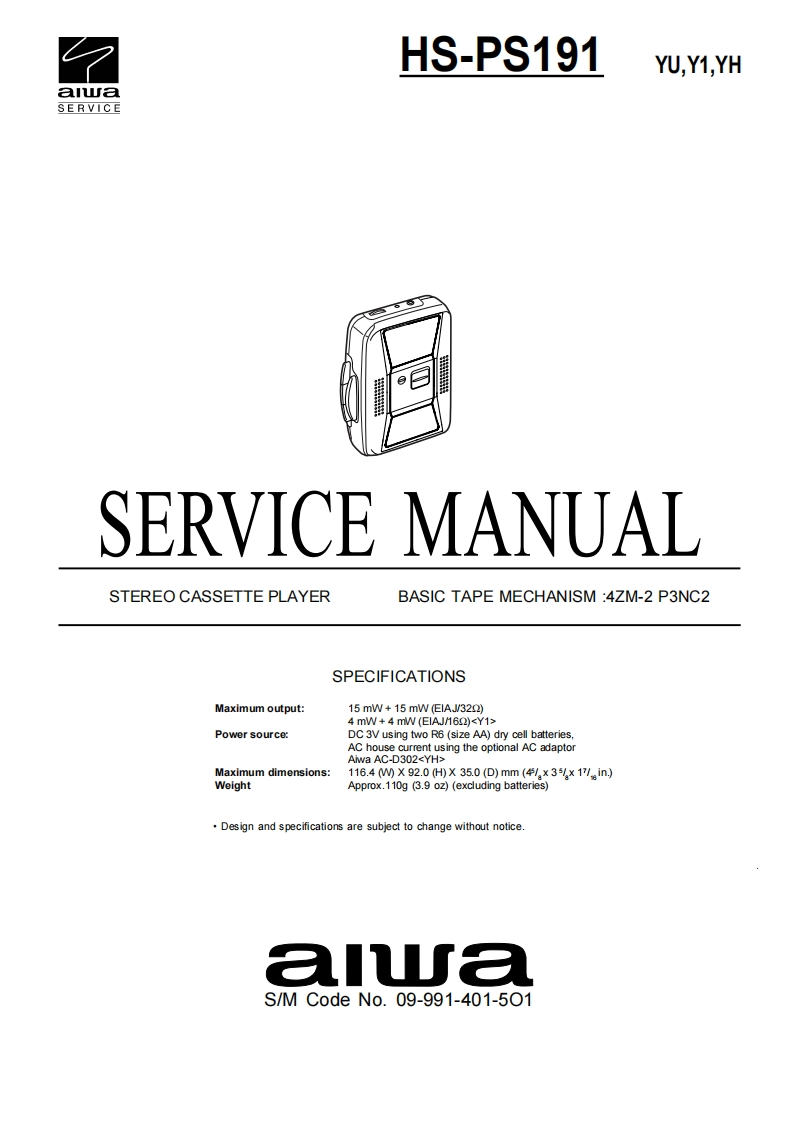

HS-PS191YU,Y1.YHaiwaSERVICESERVICE MANUALSTEREO CASSETTE PLAYERBASIC TAPE MECHANISM 4ZM-2 P3NC2SPECIFICATIONSMaximum output:15 mW+15 mW (EIAJ/322)4 mW+4 m (EIAJM62)Power source:DC 3V using two R6(size AA)dry cell batteries.AC house current using the optional AC adaptorAiwa AC-D302Maximum dimensions:116.40X92.0(HX35.0(D)mm($1.×35,x11.in)WeightApprox.110g (3.9 oz)(excluding batteries)Design and specifications are subject to change without notice.auaS/M Code No.09-991-401-501
