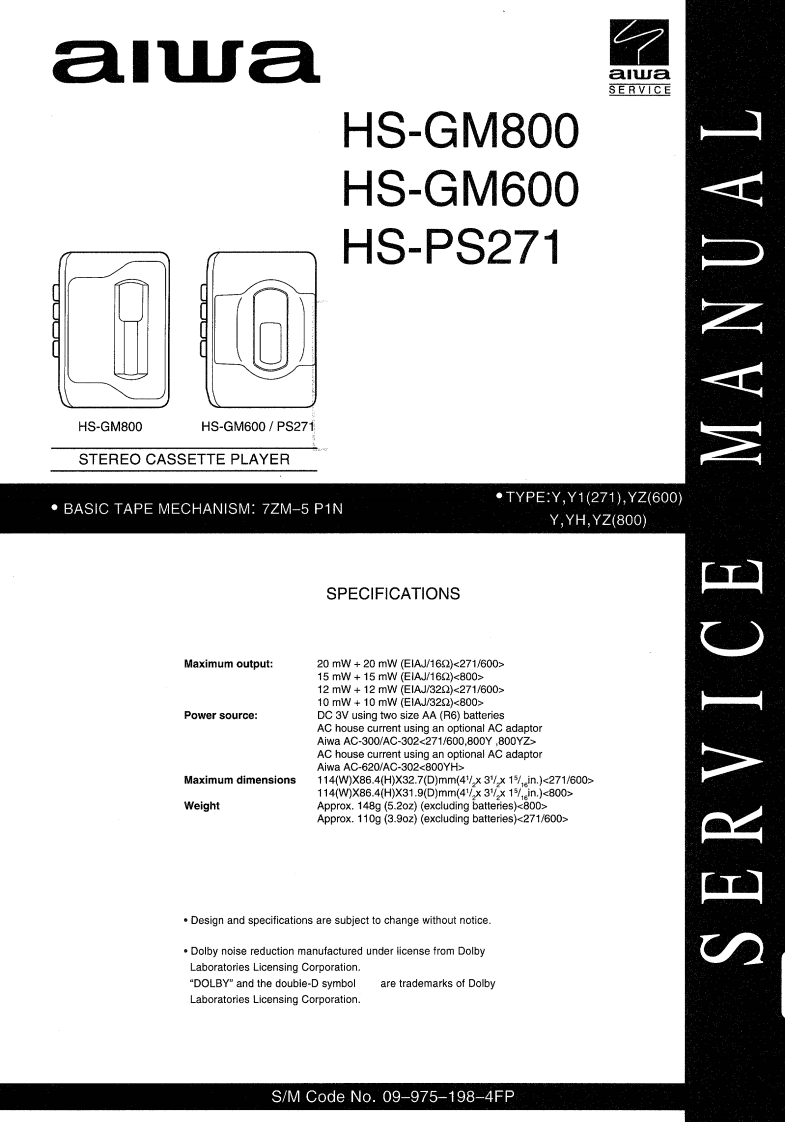

aluaaiwaSERVICEHS-GM800HS-GM600HS-PS271HS-GM800HS-GM600/PS271STEREO CASSETTE PLAYER·TYPE:Y,Y1(271),YZ(600)BASIC TAPE MECHANISM:7ZM-5 P1NY,YH,YZ(800)SPECIFICATIONSMaximum output:20mW+20mW(EIAJ/162)<271/600>15mW+15mW(EIAJ/162)<800:12mW+12mW(EIAJ/322)<271/600s10mW+10mW(EIAJ/322)e800>Power source:DC 3V using two size AA(R6)batteriesAC house current using an optional AC adaptorAiwa AC-300/AC-302<271/600.800Y.800YZAC house current using an optional AC adaptorAiwa AC-620/AC-302<800YH>Maximum dimensions114WX86.4H)X32.7(D)mm(4V×3yx1/,in.)<271/600>114(W0X86.4H)X31.9(D)mm(4Vx3yx1/,in.)<800>WeightApprox.148g (5.2oz)(excluding batteries)<800>Approx.110g (3.9oz)(excluding batteries)<271/600>Design and specifications are subject to change without notice.Dolby noise reduction manufactured under license from DolbyLaboratories Licensing Corporation."DOLBY"and the double-D symbolare trademarks of DolbyLaboratories Licensing CorporationS/M Code No.09-975-198-4FP
