Aiwa-LX50-tt-维修说明书手册含电器原理图

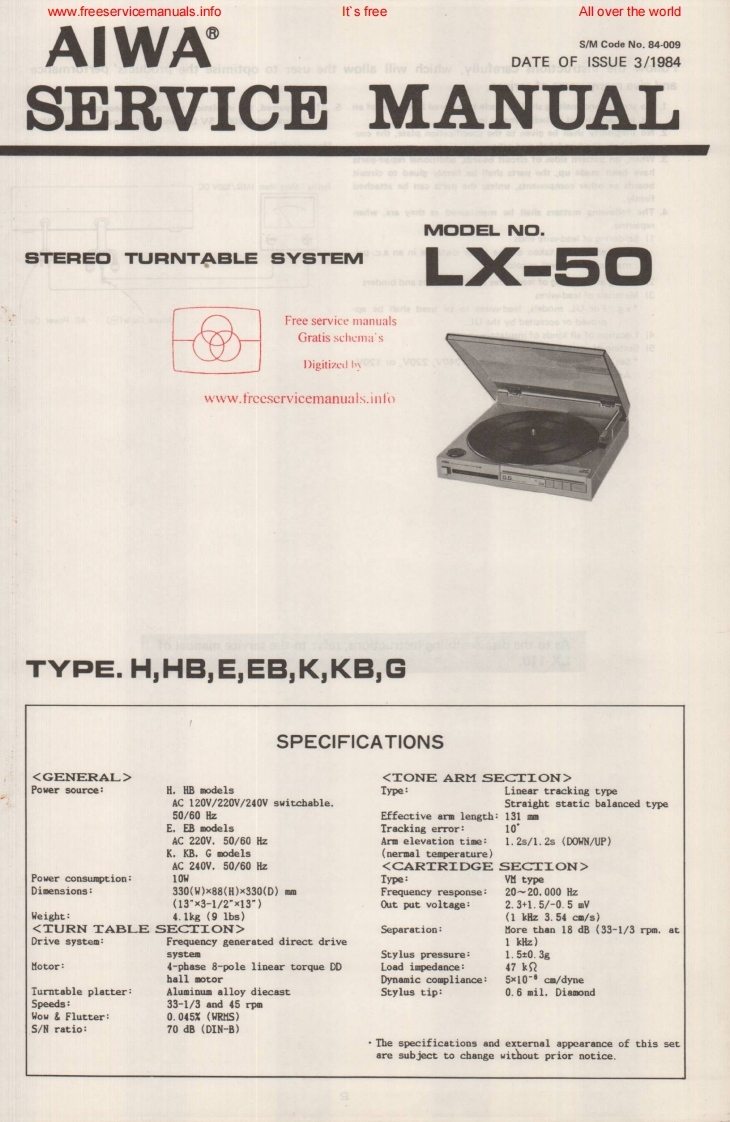

www.freeservicemanuals.infoIt's freeAll over the worldAIWAS/M Code No.84-009DATE OF ISSUE 3/1984SERVICE MANUALMODEL NO.STEREO TURNTABLE SYSTEMLX-5▣Free service manualsGratis schema'sDigitized bywww.frceservicemanuals.infoTYPE.H,HB,E,EB,K,KB,GSPECIFICATIONSPower source:H.HB modelsType:Linear tracking typeAC 120V/220V/240V switchable.Straight static balanced type50/60zEffective arm length:131 mmE.EB modelsTracking error:10°AC220V.50/60zArm elevation time:1.2s/1.2s(D0HN/UP)K.KB.G models(nermal temperature）AC240V.50/60zPower consumption:10MType:VH typeDisensions:330(W)×88(H)×330(D)mFrequency response:20-20.000z(13×3-1/2"×13")）Out put voltage:2.3+1.5/-0.5mVWeight:4.1kg(91bs)(1 kHz 3.54 cm/s)Separation:Hore than 18 dB (33-1/3 rpm.atDrive system:Frequency generated direct drive1k)systemStylus pressure:1.5±0.3gMotor:4-phase 8-pole linear torque DDLoad impedance:47khall motorDynamic compliance:5x10-cm/dyneTurntable platter:Aluminus alloy diecastStylus tip:0.6 mil.DiamondSpeeds:33-1/3 and 45 rpmWow Flutter0.045X (WRHS)S/N ratio:70 dB (DIN-B)The specifications and external appearance of this setare subject to change without prior notice.
