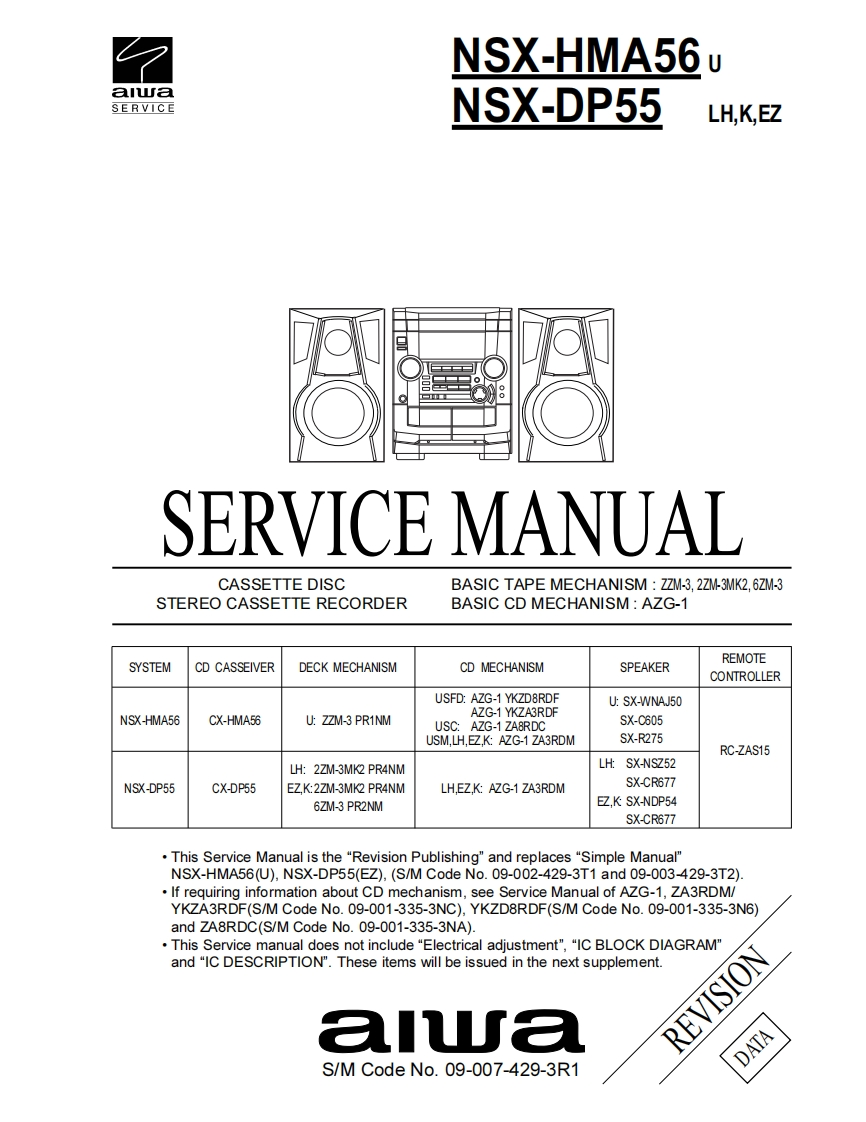

NSX-HMA56aI山aSERVICENSX-DP55LH,K,EZSERVICE MANUALCASSETTE DISCBASIC TAPE MECHANISM ZZM-3,2ZM-3MK2,6ZM-3STEREO CASSETTE RECORDERBASIC CD MECHANISM:AZG-1CD CASSEIVERSPEAKERREMOTESYSTEMDECK MECHANISMCD MECHANISMCONTROLLERUSFD:AZG-1 YKZD8RDFU:SX-WNAJ50AZG-1 YKZA3RDFNSX-HMA56CX-HMA56U:ZZM-3 PR1NMUSC:AZG-1 ZA8RDCSX-0605USM.LH,EZ.K:AZG-1 ZA3RDMSX-R275RC-ZAS15LH:2ZM-3MK2 PR4NMLH:SX-NSZ52NSX-DP55CX-DP55EZ,K:2ZM-3MK2 PR4NMLH.EZ.K:AZG-1 ZA3RDMSX-CR6776ZM-3 PR2NMEZ,K:SX-NDP54SX-CR677This Service Manual is the "Revision Publishing"and replaces "Simple Manual"NSX-HMA56U),NSX-DP55(EZ),(S/M Code No.09-002-429-3T1and09-003-429-3T2).If requiring information about CD mechanism,see Service Manual of AZG-1,ZA3RDM/YKZA3RDF(S/M Code No.09-001-335-3NC),YKZD8RDF(S/M Code No.09-001-335-3N6)and ZA8RDC(S/M Code No.09-001-335-3NA).This Service manual does not include "Electrical adjustment","IC BLOCK DIAGRAM"and "IC DESCRIPTION".These items will be issued in the next supplement.auaREVISIONDATAS/M Code No.09-007-429-3R1
