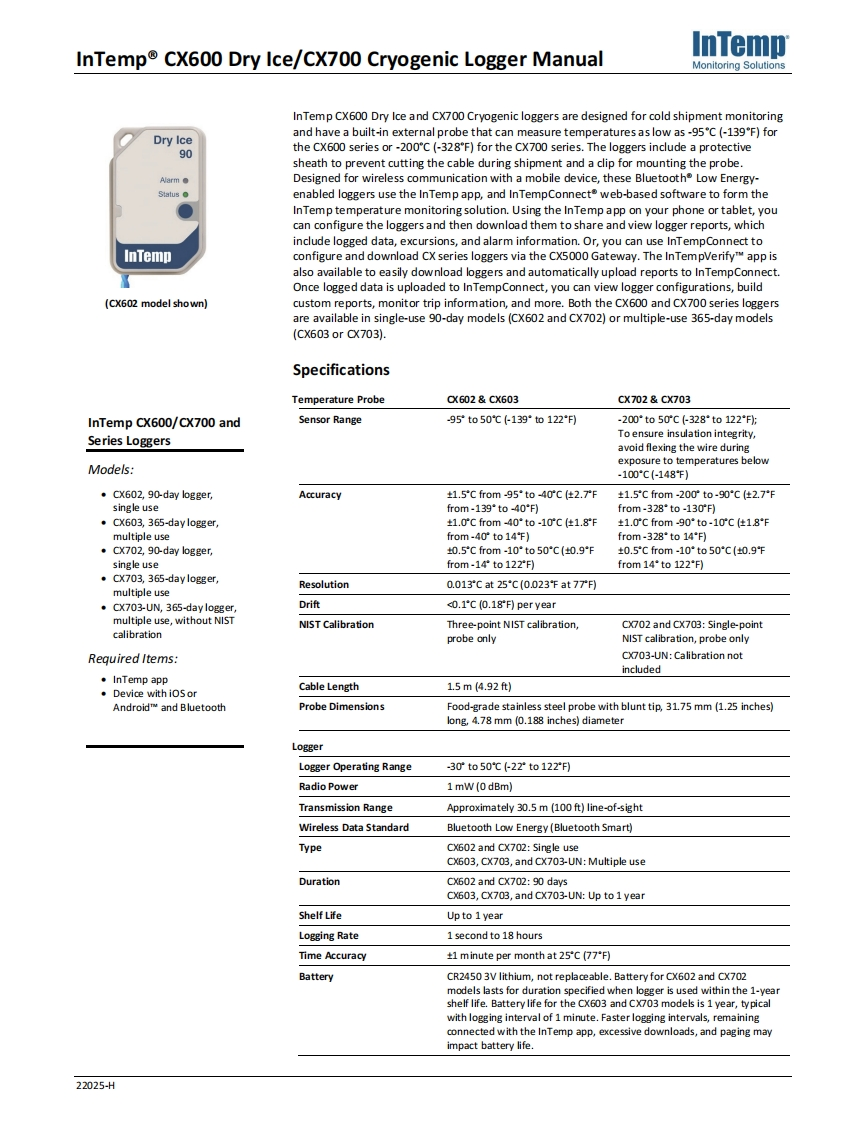

InTemp CX600 Dry Ice/CX700 Cryogenic Logger ManualInTempMonitoring SolutionsInTemp CX600 Dry Ice and CX700 Cryogenic loggers are designed for cold shipment monitoringand have a built-in external probe that can measure temperaturesaslow as-95'C(-139F)forDry Ice90the CX600 series or-200C(-328"F)for the CX700 series.The loggers include a protectivesheath to prevent cutting the cable during shipment and a clip for mounting the probe.rm●Designed for wireless communication with a mobile device,these Bluetooth Low Energy-enabled loggers use the InTemp app,and InTempConnect web-based software to form theInTemp temperature monitoring solution.Using the InTemp app on your phone or tablet,youcan configure the loggers and then download them to share and view logger reports,whichinclude logged data,excursions,and alarm information.Or,you can use InTempConnect toInTempconfigure and download CX series loggers via the CX5000 Gateway.The InTempVerify"M app isalso available to easily download loggers and automatically upload reports to InTempConnect.Once logged data is uploaded to InTempConnect,you can view logger configurations,build(CX602 model shown)custom reports,monitor trip information,and more.Both the CX600 and CX700 series loggersare available in single-use 90-day models (CX602 and CX702)or multiple-use 365-day models(CX603orCX703).SpecificationsTemperature ProbeCx602&CX603CX702&CX703InTemp CX600/CX700 andSensor Range95t050*℃(139°to122*F)-200°to50C(328to122F:Series LoggersTo ensure insulation integrity,avoid flexing the wire duringexposure to temperatures belowModels:-100°℃(-148℉).CX602,90-day logger,Accuracy1.5 C from95to40C(仕2.7T℉±1.5℃from-200°to-90C(住2.7fsingle usefrom-139°to-40F)from-328°to-130F).CX603,365-day logger,1.0 C from40°to-10C(住1.8F±1.0℃from-90°to-10c(仕1.8Fmultiple usefom-40°to14午)from-328°to14F).CX702,90-day logger,40.5'C from -10*to 50*C(0.9"F0.5 C from-10°to50C(0.9℉single usefrom-14*to 122F)from14°to122F).CX703,365-day logger,Resolution0.013Ct25℃(0.023℉at77F)multiple use.CX703-UN,365-day logger,Drift<0.1'C (0.18*F)peryearmultiple use,without NISTNIST CalibrationThree-point NIST calibrationCX702 and CX703:Single-pointcalibrationprobe onlyNIST calibration,probe onlyRequired Items:CX703-UN:Calibration notincludedInTemp appCable Length.Device withioSor1.5m(4.92ft)Android"M and BluetoothProbe DimensionsFood-grade stainless steel probe with blunt tip,31.75 mm (1.25 inches)long,4.78 mm(0.188 inches)diameterLoggerLogger Operating Range-30to50℃（22”to122*F)Radio Power1mW(0dBm)Transmission RangeApproximately 30.5 m (100 ft)line-of-sightWireless Data StandardBluetooth Low Energy(Bluetooth Smart)TypeCX602 and CX702:Single useCX603,CX703,and CX703-UN:Multiple useDurationCX602 and CX702:90 daysCX603,CX703,and CX703-UN:Up to 1yearShelf LifeUpto 1yearLogging Rate1 second to 18 hoursTime Accuracy1minute per month at 25'C(77*F)BatteryCR2450 3V lithium,not replaceable.Battery for CX602 and CX702models lasts for duration specified when logger is used within t
