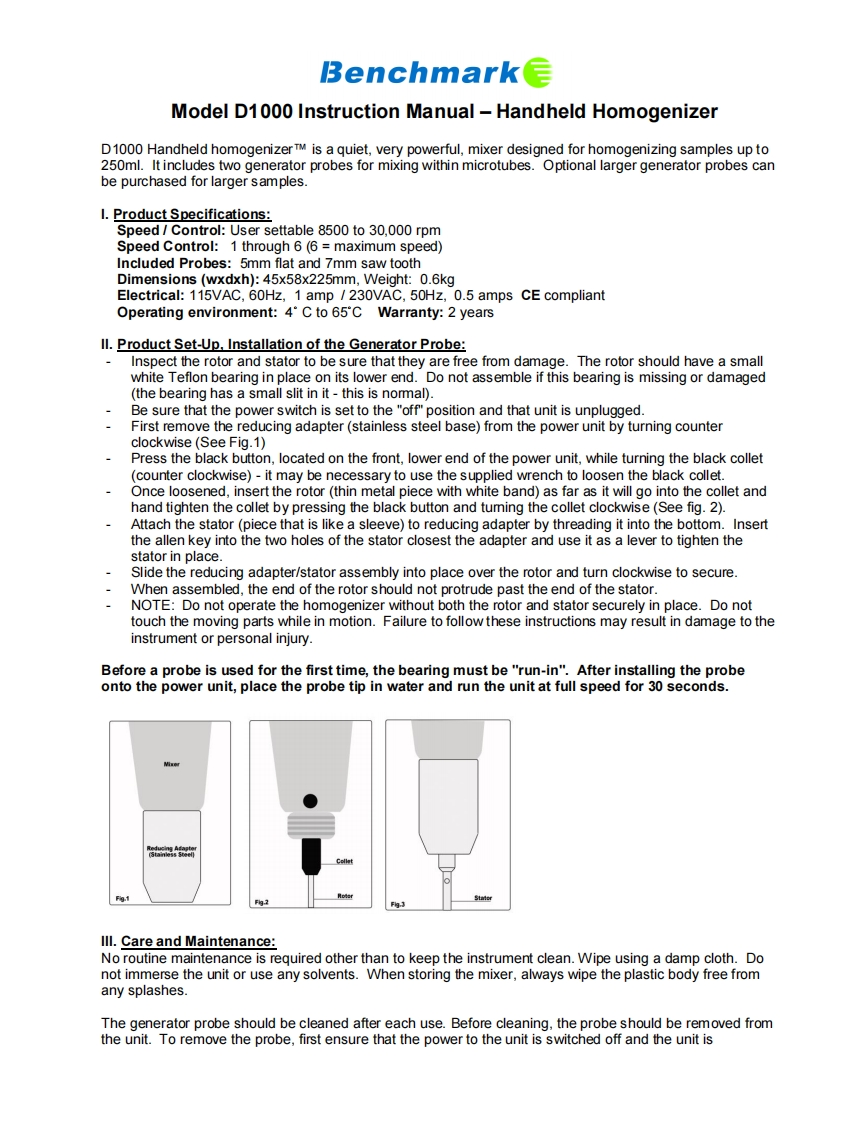

Benchmark目Model D1000 Instruction Manual-Handheld HomogenizerD1000 Handheld homogenizer TM is a quiet,very powerful,mixer designed for homogenizing samples up to250ml.It includes two generator probes for mixing within microtubes.Optional larger generator probes canbe purchased for larger samples.I.Product Specifications:Speed Control:User settable 8500 to 30,000 rpmSpeed Control:1 through 6(6 maximum speed)Included Probes:5mm flat and 7mm saw toothDimensions (wxdxh):45x58x225mm,Weight:0.6kgElectrical:115VAC.60Hz.1 amp 230VAC.50Hz.0.5 amps CE compliantOperating environment:4'C to 65'C Warranty:2 yearsll.Product Set-Up,Installation of the Generator Probe:Inspect the rotor and stator to be sure that they are free from damage.The rotor should have a smallwhite Teflon bearing in place on its lower end.Do not assemble if this bearing is missing or damaged(the bearing has a small slit in it-this is nommal).Be sure that the power switch is set to the "off"position and that unit is unplugged.First remove the reducing adapter(stainless steel base)from the power unit by turning counterclockwise(See Fig.1)Press the black button,located on the front,lower end of the power unit,while turning the black collet(counter clockwise)-it may be necessary to use the supplied wrench to loosen the black collet.Once loosened,insert the rotor (thin metal piece with white band)as far as it will go into the collet andhand tighten the collet by pressing the black button and tuming the collet clockwise(See fig.2).Attach the stator(piece that is like a sleeve)to reducing adapter by threading it into the bottom.Insertthe allen key into the two holes of the stator closest the adapter and use it as a lever to tighten thestator in place.Slide the reducing adapter/stator assembly into place over the rotor and turn clockwise to secure.When assembled,the end of the rotor should not protrude past the end of the stator.NOTE:Do not operate the homogenizer without both the rotor and stator securely in place.Do nottouch the moving parts while in motion.Failure to follow these instructions may result in damage to theinstrument or personal injury.Before a probe is used for the first time,the bearing must be "run-in".After installing the probeonto the power unit,place the probe tip in water and run the unit at full speed for 30 seconds.3的2StaterFilg:3Ill.Care and Maintenance:No routine maintenance is required other than to keep the instrument clean.Wipe using a damp cloth.Donot immerse the unit or use any solvents.When storing the mixer,always wipe the plastic body free fromany splashes.The generator probe should be cleaned after each use.Before cleaning,the probe should be removed fromthe unit.To remove the probe,first ensure that the power to the unit is switched off and the unit is
