Aiwa-NSXRV15-cs-维修说明书手册含电器原理图

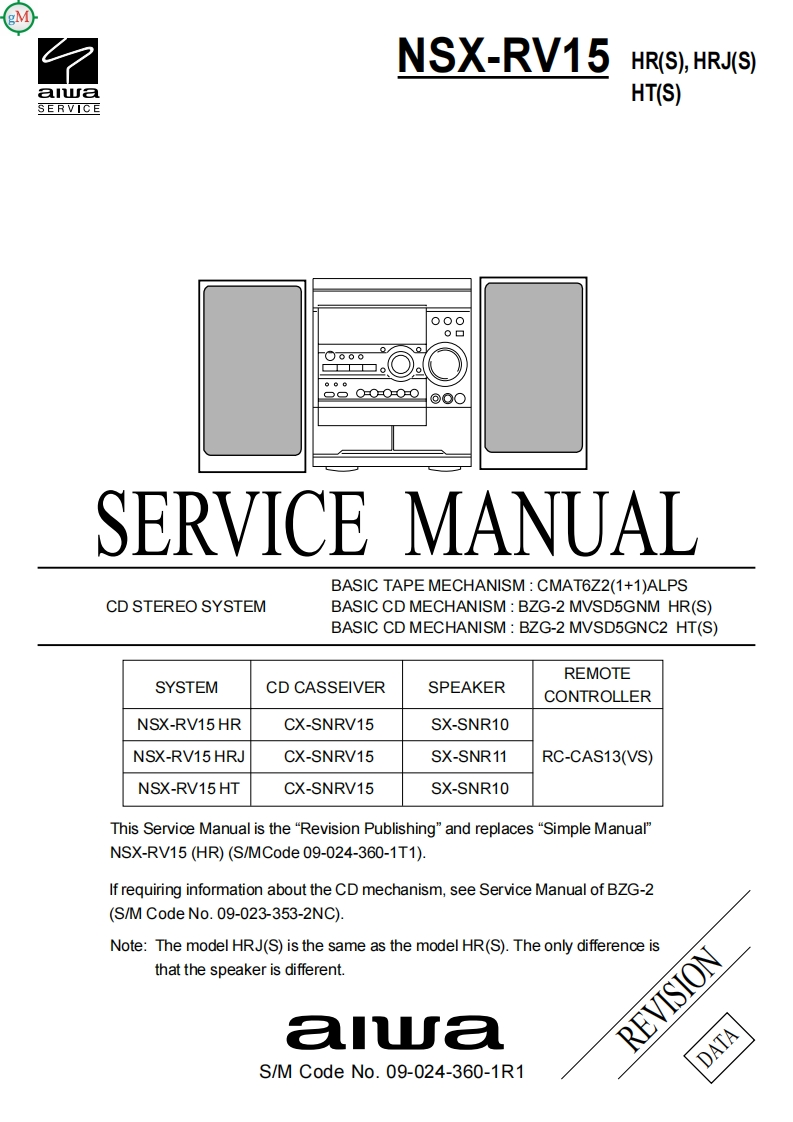

gMNSX-RV15HR(S),HRJ(S)aiwaHT(S)SERVICE0000▣⊙○SERVICE MANUALBASIC TAPE MECHANISM:CMAT6Z2(1+1)ALPSCD STEREO SYSTEMBASIC CD MECHANISM:BZG-2 MVSD5GNM HR(S)BASIC CD MECHANISM:BZG-2 MVSD5GNC2 HT(S)REMOTESYSTEMCD CASSEIVERSPEAKERCONTROLLERNSX-RV15HRCX-SNRV15SX-SNR10NSX-RV15 HRJCX-SNRV15SX-SNR11RC-CAS13(VS)NSX-RV15 HTCX-SNRV15SX-SNR10This Service Manual is the "Revision Publishing"and replaces "Simple Manual"NSX-RV15(HR)(S/MCode09-024-360-1T1).If requiring information about the CD mechanism,see Service Manual of BZG-2(S/M Code No.09-023-353-2NC).Note:The model HRJ(S)is the same as the model HR(S).The only difference isthat the speaker is differentauaREVISIONDATAS/M Code N0.09-024-360-1R1
