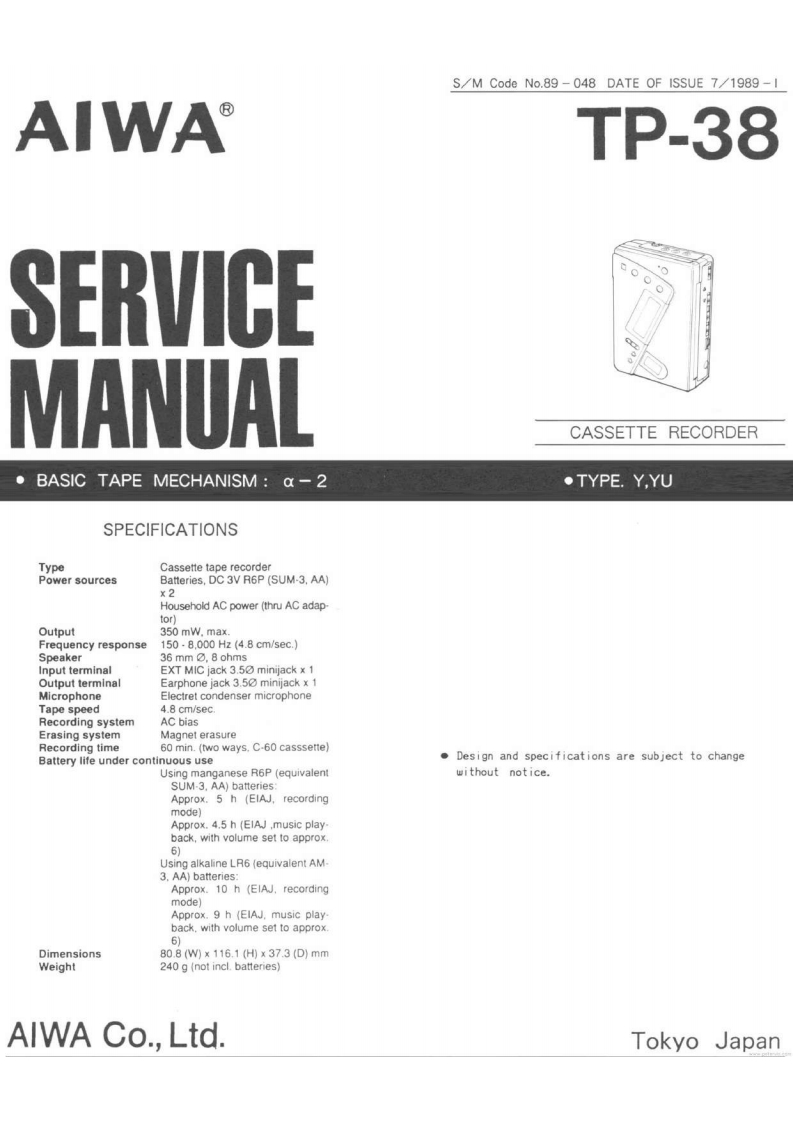

S/M Code No.89-048 DATE OF ISSUE 7/1989-1AIWATP.38SERVICEMANUALCASSETTE RECORDER●BASIC TAPE MECHANISM:a-2●TYPE.Y,YUSPECIFICATIONSTypeCassette tape recorderPower sourcesBatteries,DC 3V R6P (SUM-3.AA)x2Household AC power (thru AC adaptor)Output350 mW.max.Frequency response150.8.000Hz(4.8cm/sec.】Speaker36mm☑.8ohmsInput terminalEXT MIC jack 3.5 minijack x 1Output terminalEarphone jack 3.50 minijack x 1MicrophoneElectret condenser microphoneTape speed4.8 cm/secRecording systemAC biasErasing systemMagnet erasureRecording time60 min.(two ways.C-60 casssette)Battery life under continuous use.Design and specifications are subject to changeUsing manganese R6P(equivalentwithout notice.SUM-3.AA)batteries:Approx.5 h (EIAJ,recordingmode】Approx.4.5 h (EIAJ ,music play-back,with volume set to approx.6)Using alkaline LR6 (equivalent AM.3.AA)batteriesApprox.10 h (EIAJ.recordingmode)Approx.9 h (EIAJ.music playback.with volume set to approx6)Dimensions80.8(W×116.1Hx37.3(D)mmWeight240 g (not incl.batteries)AIWA Co.,Ltd.Tokyo Japan
