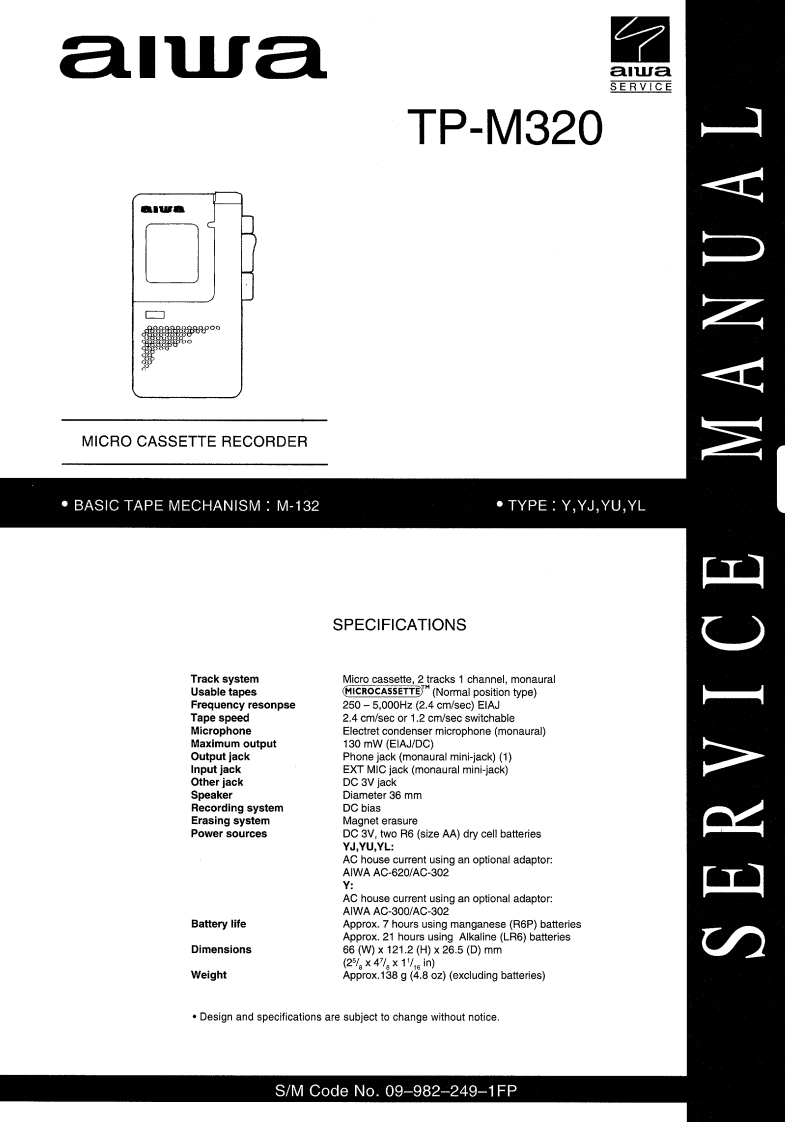

auaaiwaSERVICETP-M320IVONVWMICRO CASSETTE RECORDERBASIC TAPE MECHANISM M-132·TYPE:Y,YJ,YU,YLSPECIFICATIONSTrack systemMicro cassette,2 tracks 1 channel,monauralUsable tapes(MICROCASSETTE"(Normal position type)Frequency resonpse250-5,000Hz (2.4 cm/sec)EIAJTape speed2.4 cm/sec or 1.2 cm/sec switchableMicrophoneElectret condenser microphone (monaural)Maximum output130 mW (EIAJ/DC)Output jackPhone jack (monaural mini-jack)(1)Input jackEXT MIC jack(monaural mini-jack)Other jackDC 3V jackSpeakerDiameter 36 mmRecording systemDC biasErasing systemMagnet erasurePower sourcesDC 3V,two R6 (size AA)dry cell batteriesYJ,YU.YL:AC house current using an optional adaptor:AIWA AC-620/AC-302OIANaSY:AC house current using an optional adaptor:AIWA AC-300/AC-302Battery lifeApprox.7 hours using manganese(R6P)batteriesApprox.21 hours using Alkaline (LR6)batteriesDimensions66W0×121,2(H)×26.5(D)mrm(2/.x47ax1/ein)WeightApprox.138 g (4.8 oz)(excluding batteries)Design and specifications are subject to change without noticeS/M Code No.09-982-249-1FP
