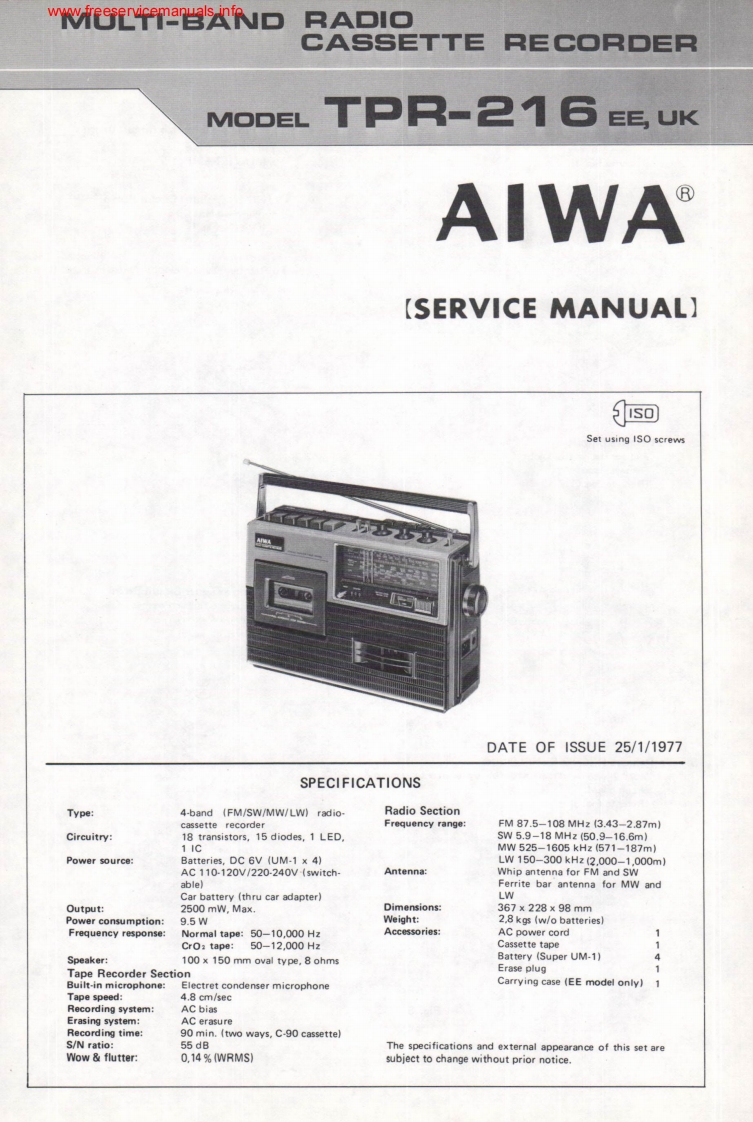

WWIESMTNDRA▣IOCASSETTE RECORDERMODEL TPR-216EEUKAIWA(SERVICE MANUAL】soSet using ISO screwsDATE OF ISSUE 25/1/1977SPECIFICATIONSType:4-band (FM/SW/MW/LW)radio-Radio Sectioncassette recorderFrequency range:FM87.5-108MHz3.43-2.87mlCircuitry:18 transistors,15 diodes,1 LEDSW5.9-18MHz(50.9-16.6m)1 ICMW525-1605kHz(571-187m)Power source:Batteries,DC 6V (UM-1 x 4)LW150-300kHz(2.000-1.000m)AC110-120V/220-240V(switchAntenna:Whip antenna for FM and SWable)Ferrite bar antenna for MW andCar battery (thru car adapter)LWOutput:2500mW.Ma×Dimensions:367×228×98mmPower consumption:9.5wWeight:2.8 kgs (w/o batteries)Frequency response:Normal tape:50-10,000 HzAccessories:AC power cord1CrO:tape:50-12,000HzCassette tapeSpeaker:100 x 150 mm oval type.8 ohmsBattery(Super UM-1】4Tape Recorder SectionErase plug1Built-in microphone:Electret condenser microphoneCarrying case (EE model only)1Tape speed:4.8 cm/secRecording system:AC biasErasing system:AC erasureRecording time:90 min.(two ways,C-90 cassette)S/N ratio:55 dBThe specifications and external appearance of this set areWow flutter:0.14%(WRMS)subject to change without prior notice.
