Aiwa-TPR910-tape-维修说明书手册含电器原理图

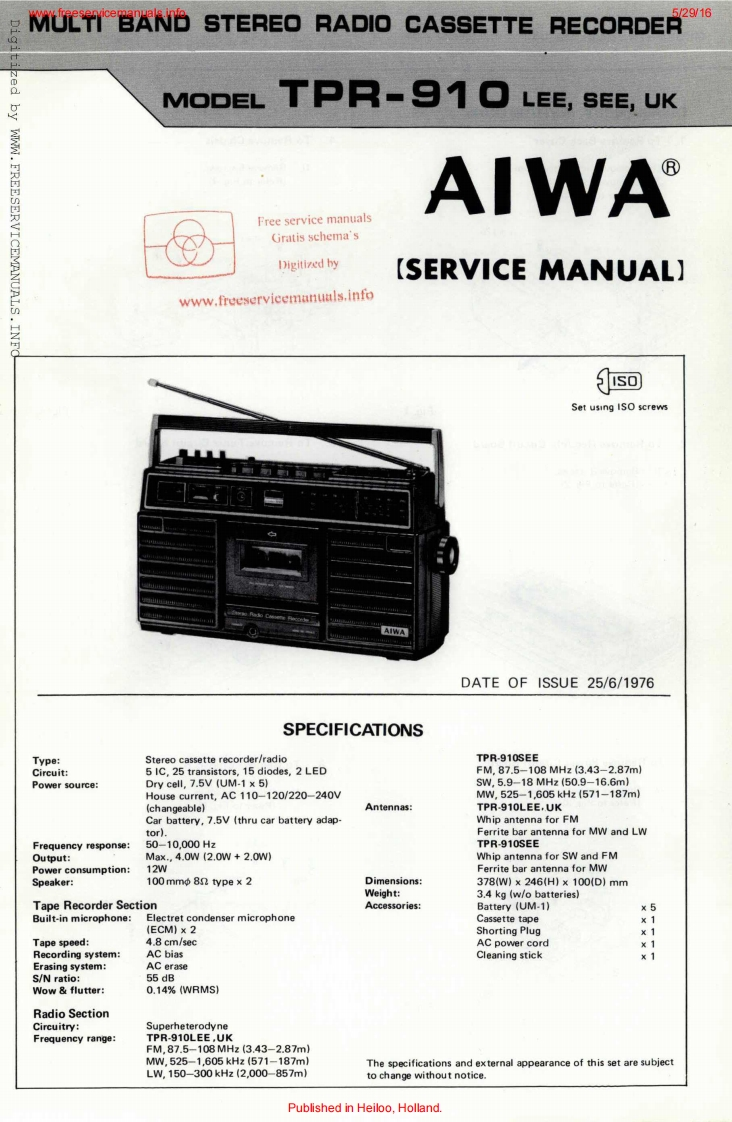

MULTI BAND STEREO RADIO CASSETTE RECORDER十MODEL TPR-910 LEE,SEE,UKWWW.FREESERVICEMANUALS.INFCAIWAFree service manualsGratis schema'sDigitized by(SERVICE MANUAL】www.freeservicemanuals.infos可Set using ISO screwsAIWADATE OF ISSUE 25/6/1976SPECIFICATIONSType:Stereo cassette recorder/radioTPR-910SEECircuit:5 IC,25 transistors,15 diodes,2 LEDFM.87.5-108MHz3.43-2.87m】Power source:Dry cell,7.5V (UM-1 x 5)Sw.5.9-18MHz(50.9-16.6mlHouse current,AC 110-120/220-240VMw.525-1605kHz571-187ml(changeable)Antennas:TPR-910LEE.UKCar battery,7.5V (thru car battery adapWhip antenna for FMtor).Ferrite bar antenna for MW and LWFrequency response:50-10.000HzTPR-910SEEOutput:Max.4.0w(2.0W+2.0W0Whip antenna for SW and FMPower consumption:12WFerrite bar antenna for MWSpeaker:100mmo8 2 type×2Dimensions:378W)×246(H)×100(D)mmWeight:3.4 kg (w/o batteries)Tape Recorder SectionAccessories:Battery (UM-1)×5Built-in microphone:Electret condenser microphoneCassette tapex 1(ECM)x 2Shorting PlugTape speed:4.8 cm/secAC power cordRecording system:AC biasCleaning stick1Erasing system:AC eraseS/N ratio:55 dBWow flutter:0.14%WRMS】Radio SectionCircuitry:SuperheterodyneFrequency range:TPR-910LEE.UKFM.87.5-108MHz(3.43-2.87m】MW.525-1,605kHz(571-187mlThe specifications and external appearance of this set are subjectLW.150-300kHz(2.000-857m】to change without notice.Published in Heiloo,Holland.
