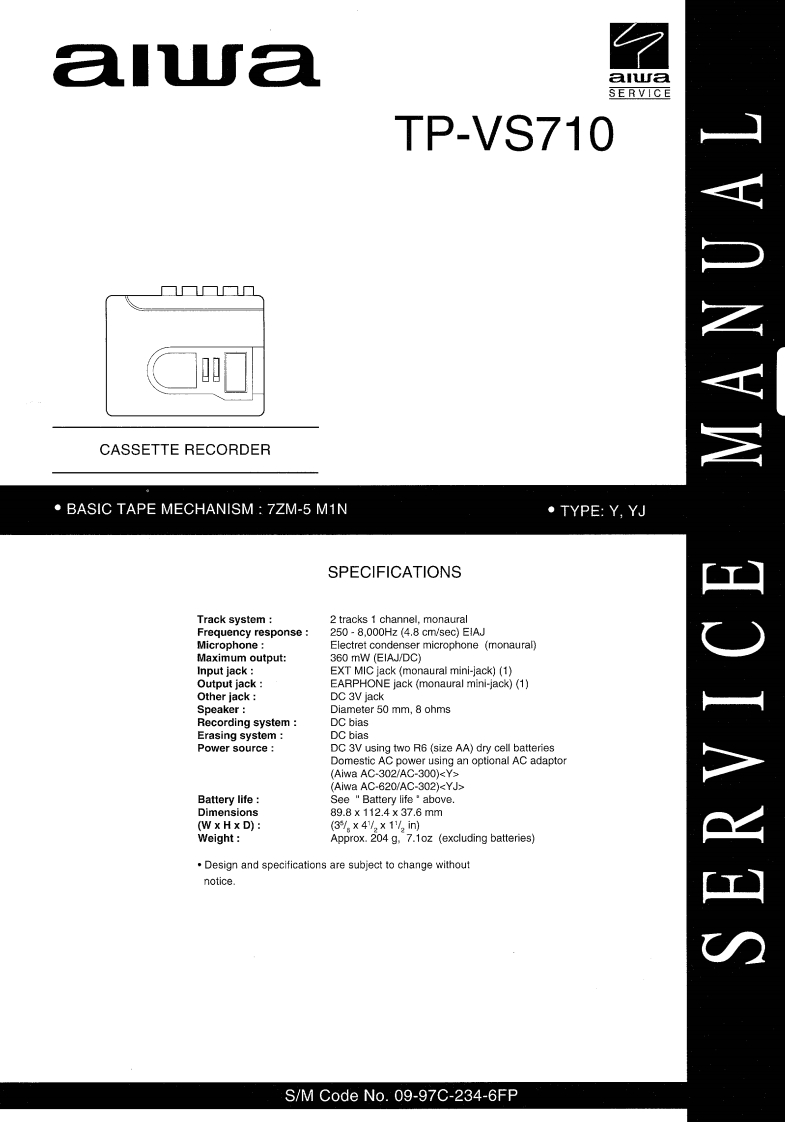

auaalwaSERVICETP-VS710IVONYWCASSETTE RECORDERBASIC TAPE MECHANISM:7ZM-5 M1N·TYPE:Y,YJSPECIFICATIONSTrack system2 tracks 1 channel,monauralFrequency response250-8,000Hz (4.8 cm/sec)EIA.JMicrophoneElectret condenser microphone (monaural)Maximum output:360 mW (EIAJ/DC)Input jackEXT MIC jack (monaural mini-jack)(1)Output jackEARPHONE jack (monaural mini-jack)(1)Other jackDC 3V jackSpeakerDiameter 50 mm,8 ohmsRecording systemDC biasErasing systemDC biasPower sourceDC 3V using two R6(size AA)dry cell batteriesDomestic AC power using an optional AC adapto(Aiwa AC-302/AC-300)(Aiwa AC-620/AC-302)Battery lifeSee Battery life'above.Dimensions89.8X112.4x37.6mm(W x Hx D)(3。×412X12in)WeightApprox.204 g.7.1oz (excluding batteries)Design and specifications are subject to change withoutnoticeHOIANESS/M Code No.09-97C-234-6FP
