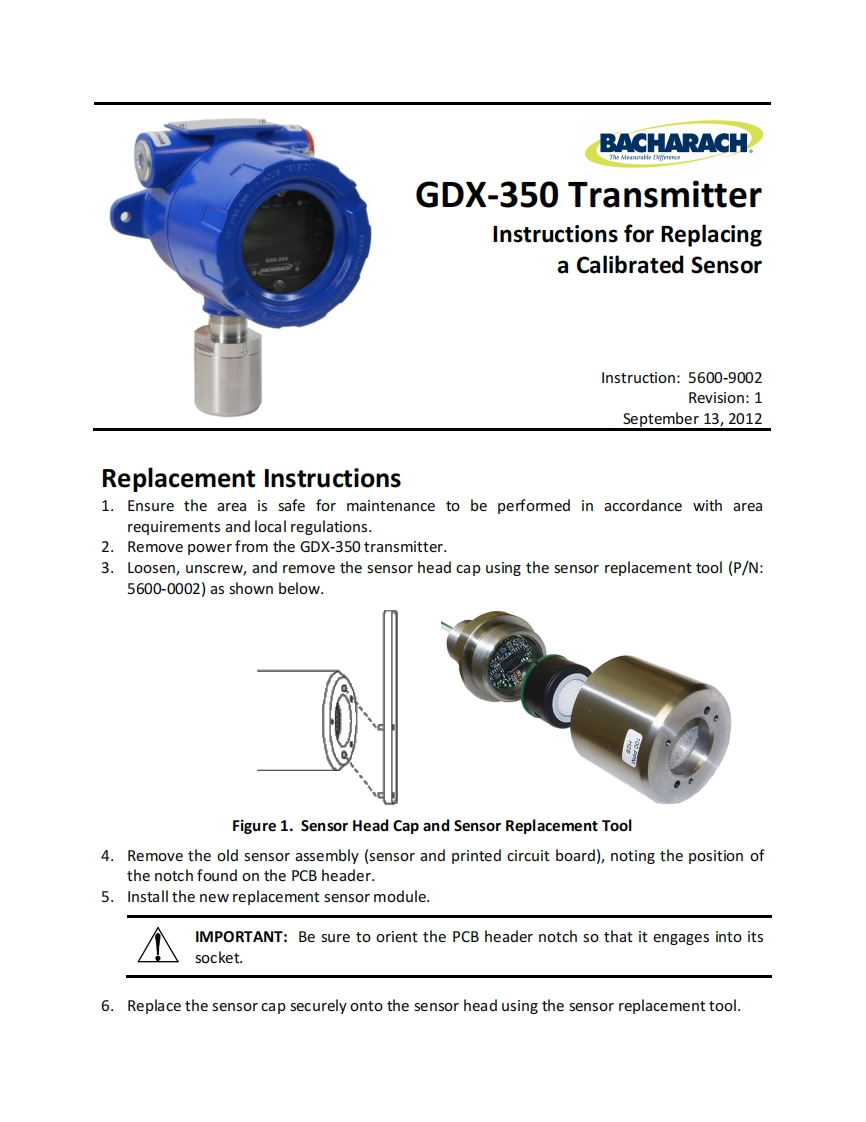

BACHARACHGDX-350 TransmitterInstructions for Replacinga Calibrated SensorInstruction:5600-9002Revision:1September 13,2012Replacement Instructions1.Ensure the area is safe for maintenance to be performed in accordance with arearequirements and local regulations.2.Remove power from the GDX-350 transmitter.3.Loosen,unscrew,and remove the sensor head cap using the sensor replacement tool (P/N:5600-0002)as shown below.Figure 1.Sensor Head Cap and Sensor Replacement Tool4.Remove the old sensor assembly (sensor and printed circuit board),noting the position ofthe notch found on the PCB header.5.Install the new replacement sensor module.IMPORTANT:Be sure to orient the PCB header notch so that it engages into itssocket.6.Replace the sensor cap securely onto the sensor head using the sensor replacement tool.
