Aiwa-XRH1100-cs-维修说明书手册含电器原理图

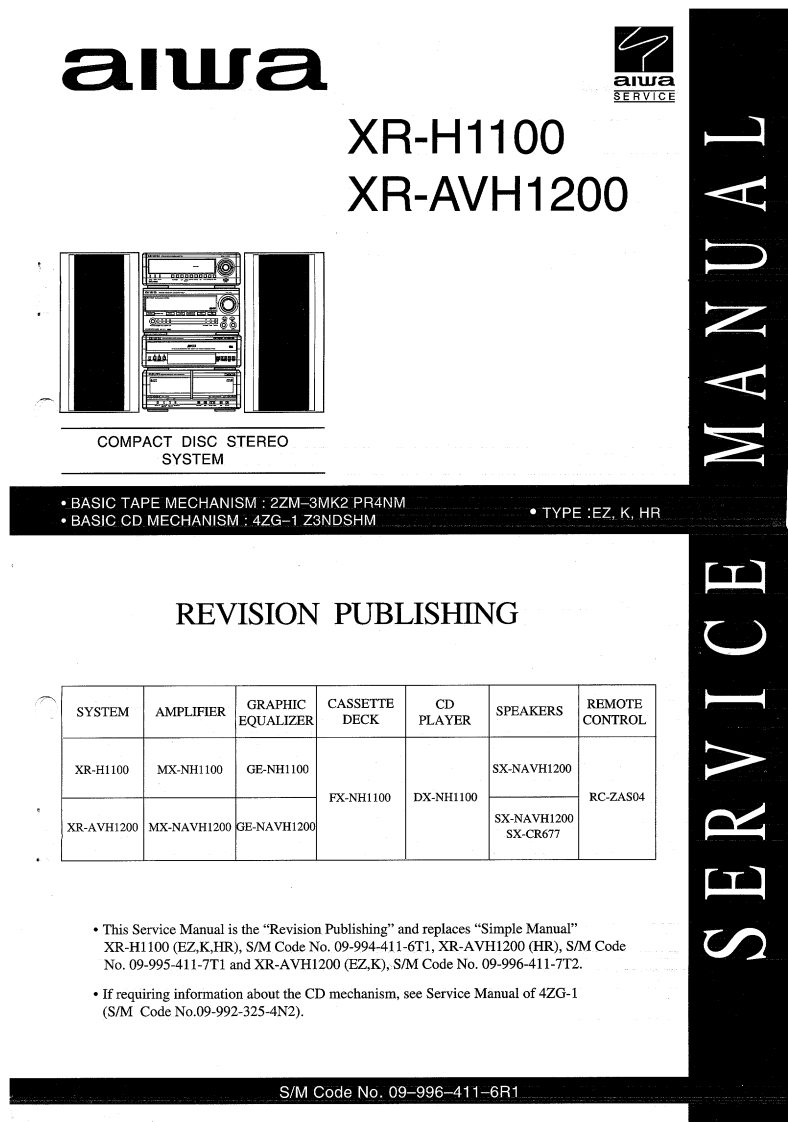

aluaaiwaSERVICEXR-H1100XR-AVH1200TVANYWCOMPACT DISC STEREOSYSTEM.BASIC TAPE MECHANISM 2ZM-3MK2 PR4NMBASIC CD MECHANISM:4ZG-1 Z3NDSHM·TYPE:EZ,K,HRREVISION PUBLISHINGCASSETTECDSYSTEMAMPLIFIERGRAPHICSPEAKERSREMOTEEQUALIZERDECKPLAYERCONTROLXR-H1100MX-NH1100GE-NH1100SX-NAVH1200FX-NH1100DX-NH1100RC-ZAS04SX-NAVH1200XR-AVH1200MX-NAVH1200GE-NAVH1200SX-CR677·This Service Manual is the“Revision Publishing”and replaces“Simple Manual''XR-H1100 (EZ,K,HR),S/M Code No.09-994-411-6T1,XR-AVH1200 (HR),S/M CodeNo.09-995-411-7T1 and XR-AVH1200(EZ,K),S/M Code No.09-996-411-7T2.If requiring information about the CD mechanism,see Service Manual of 4ZG-1(S/M Code No.09-992-325-4N2)S/M Code No.09-996-411-6R1
