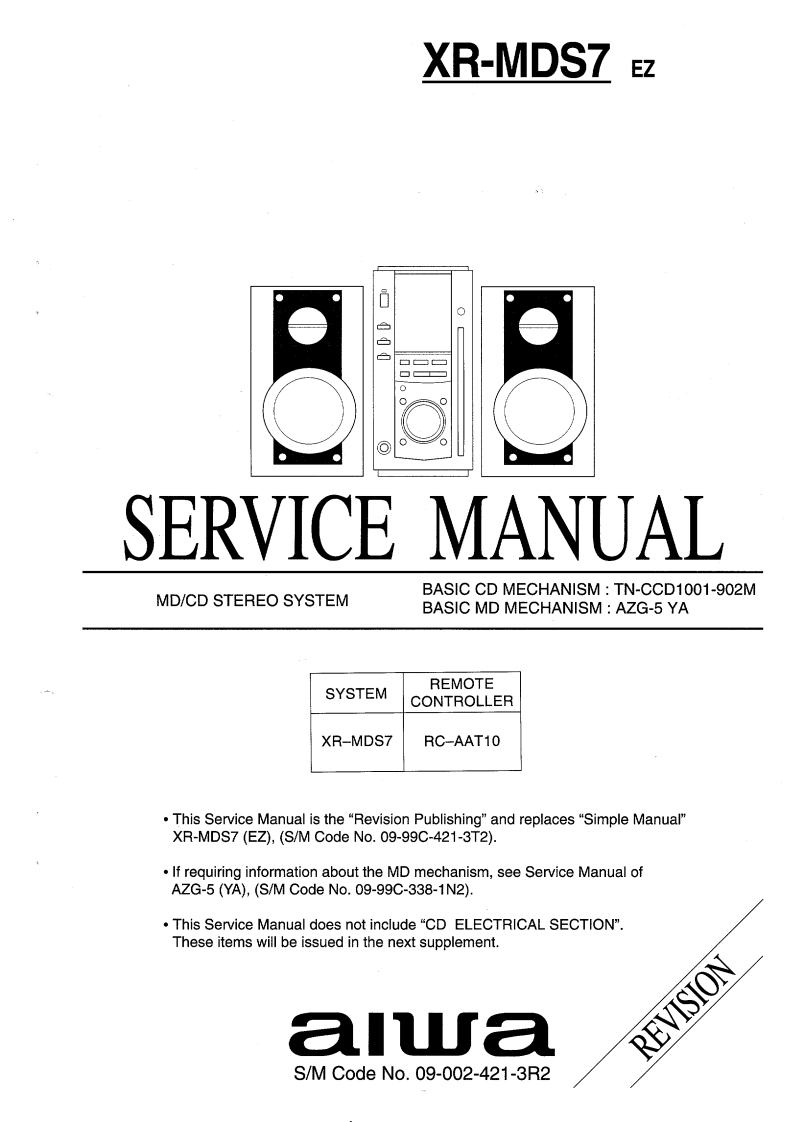

XR-MDS7 EZSERVICE MANUALBASIC CD MECHANISM:TN-CCD1001-902MMD/CD STEREO SYSTEMBASIC MD MECHANISM:AZG-5 YASYSTEMREMOTECONTROLLERXR-MDS7RC-AAT10This Service Manual is the "Revision Publishing"and replaces "Simple Manual"XR-MDS7(EZ),(S/M Code No.09-99C-421-3T2).If requiring information about the MD mechanism,see Service Manual ofAZG-5(YA),(S/M Code No.09-99C-338-1N2).This Service Manual does not include "CD ELECTRICAL SECTION".These items will be issued in the next supplement.auaREVISIONS/M Code No.09-002-421-3R2
