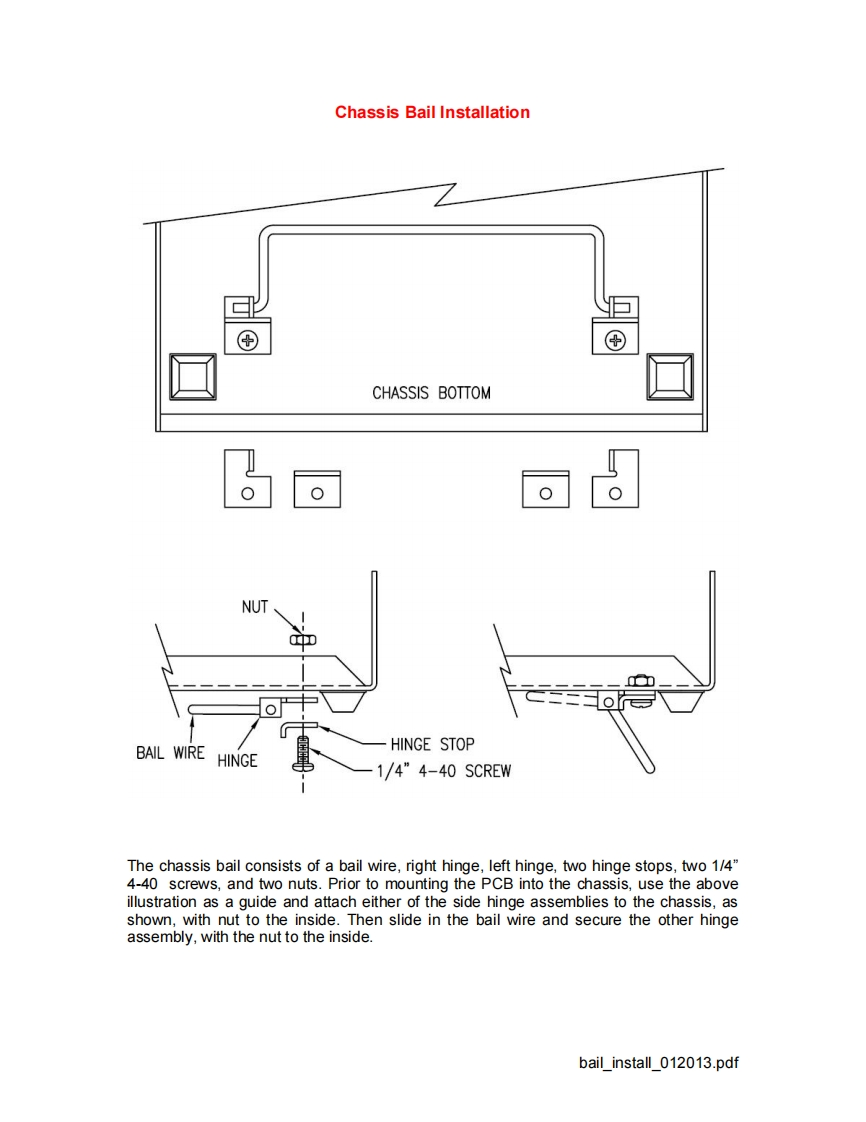

Chassis Bail Installation田®CHASSIS BOTTOMNUT、gupBAIL WIRE HINGEHINGE STOP1/4”4-40 SCREWThe chassis bail consists of a bail wire,right hinge,left hinge,two hinge stops,two 1/4"4-40 screws,and two nuts.Prior to mounting the PCB into the chassis,use the aboveillustration as a guide and attach either of the side hinge assemblies to the chassis,asshown,with nut to the inside.Then slide in the bail wire and secure the other hingeassembly,with the nut to the inside.bail_install_012013.pdf
