Aiwa-ZV610-cs-维修说明书手册含电器原理图

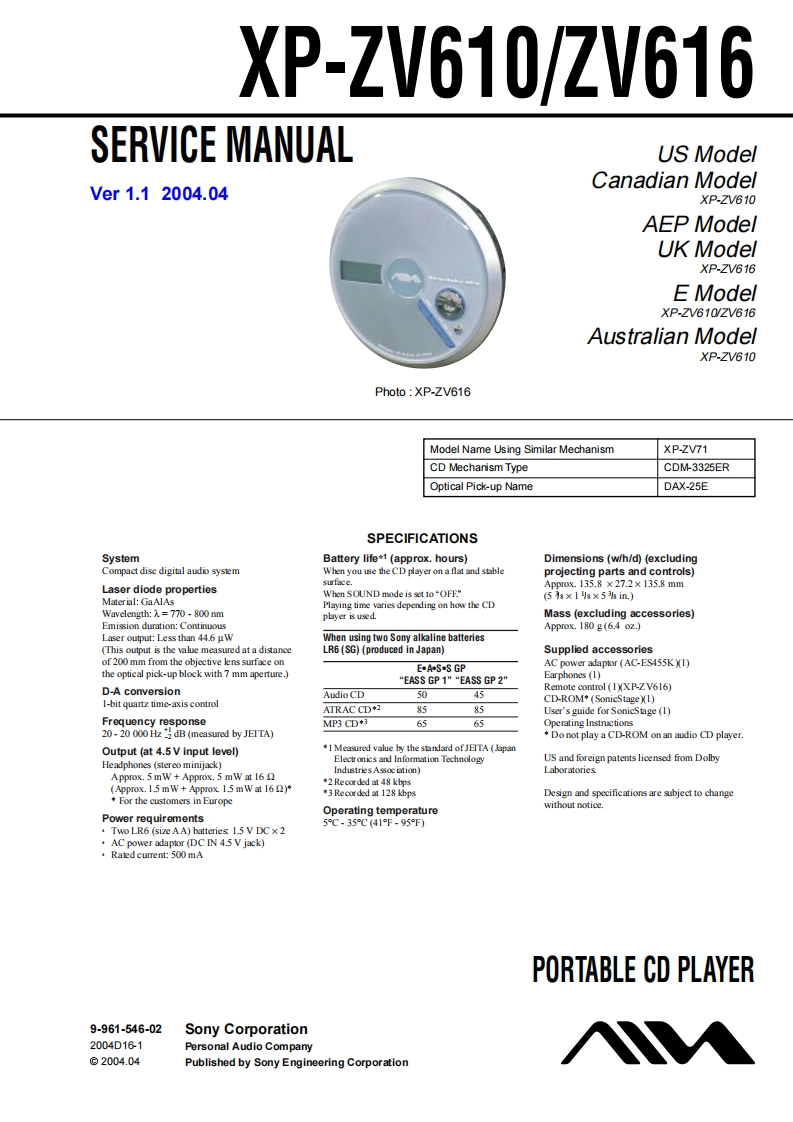

XP-ZV610/ZV616SERVICE MANUALUS ModelCanadian ModelVer1.12004.04XP-ZV610AEP ModelUK ModelXP-ZV616EModelXP-ZV610/ZV616Australian ModelXP-ZV610Photo XP-ZV616Model Name Using Similar MechanismXP-ZV71CD Mechanism TypeCDM-3325EROptical Pick-up NameDAX-25ESPECIFICATIONSSystemBattery life*1(approx.hours)Dimensions (w/h/d)(excludingCompact disc digital audio systemWhen you use the CD player on a flat and stableprojecting parts and controls)surface.Laser diode propertiesApprox..135.8×27.2×135.8mmWhen SOUND mode is set to -OFF."Material:GaAlAs(58×1s×54in.)Playing time varies depending on how the CDWavelength:770 -800 nmplryer is used.Mass (excluding accessories)Emission duration:ContinuousApprox.180 g(6.4 oz.)Laser output:Less than 44.6 uWWhen using two Sony alkaline batteries(This output is the value measured at a distanceLR6(SG)(produced in Japan)Supplied accessoriesof 200 mm from the objective lens surface onAC power adaptor (AC-ES455KX(1)the optical pick-up block with 7 mm aperture.)E.ASS GP“EASS GP1"“EASS GP2"Earphones(1)D-A conversionRemote control (1XP-ZV616)Audio CD50451-bit quartz time-axis controlCD-ROM(SonicStageX(1)ATRAC CD+28585User's guide for SonicStage (1)Frequency responseMP3 CD+36565Operating Instructions20-20 000 Hz dB (measured by JEITA)*Do not play a CD-ROM on an audio CD player.Output (at 4.5V input level)1 Measured value by the standard of JEITA (apanHeadphones(stereo minijack)Electronies and Information TechnologyUS and foreign patents licensed from DolbyIndustries Assoc iation)LaboratoriesApprox.5mW+Approx.5 mW at 16*2Recorded at 48 kbps(Approx.1.5 mW+Approx.1.5 mW at 16*3 Recorded at 128 kbpsFor the customers in EuropeDesign and specifications are subject to changewithout notice.Operating temperaturePower reguirements5℃-35℃(41℉-95℉)·TwoLR6(size AA)batteries I.5VDC×2AC power adaptor (DC IN 4.5 V jack)·Rated current:500mAPORTABLE CD PLAYER9-961-546-02Sony Corporation2004D161Personal Audio Company©2004.04Published by Sony Engineering Corporation
