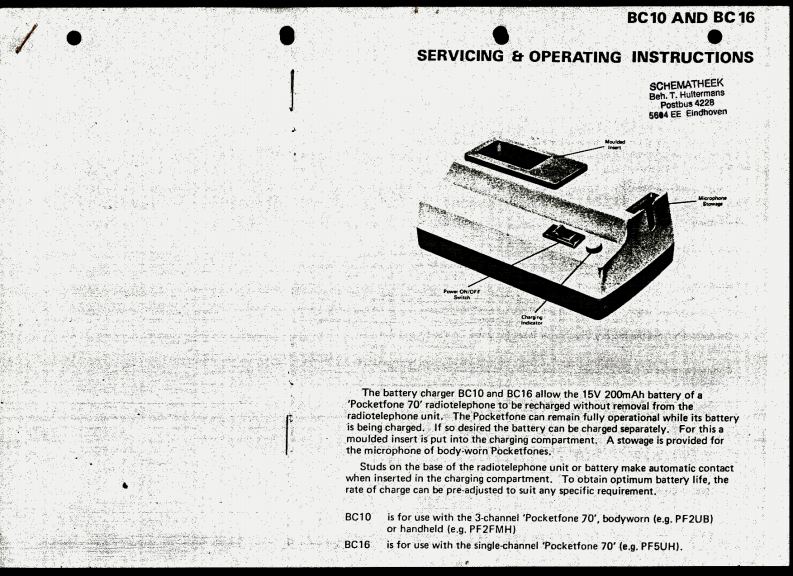

BC10 AND BC16SERVICING OPERATING INSTRUCTIONSSCHEMATHEEKBeh.T.HultermansPo5bu842265604 EE EindhovenThe battery charger BC10 and BC16 allow the 15V 200mAh battery of aPocketfone 70'radiotelephone to be recharged without removal from theradiotelephone unit.The Pocketfone can remain fully operational while its batteryis being charged.If so desired the battery can be charged separately.For this amoulded insert is put into the charging compartment.A stowage is provided forthe microphone of body-worn Pocketfones.Studs on the base of the radiotelephone unit or battery make automatic contactwhen inserted in the charging compartment.To obtain optimum battery life,therate of charge can be pre-adjusted to suit any specific requirement.BC10is for use with the 3-channel 'Pocketfone 70',bodyworn (e.g.PF2UB)or handheld (e.g.PF2FMH)BC16 is for use with the single-channel 'Pocketfone 70'(e.g.PF5UH).
