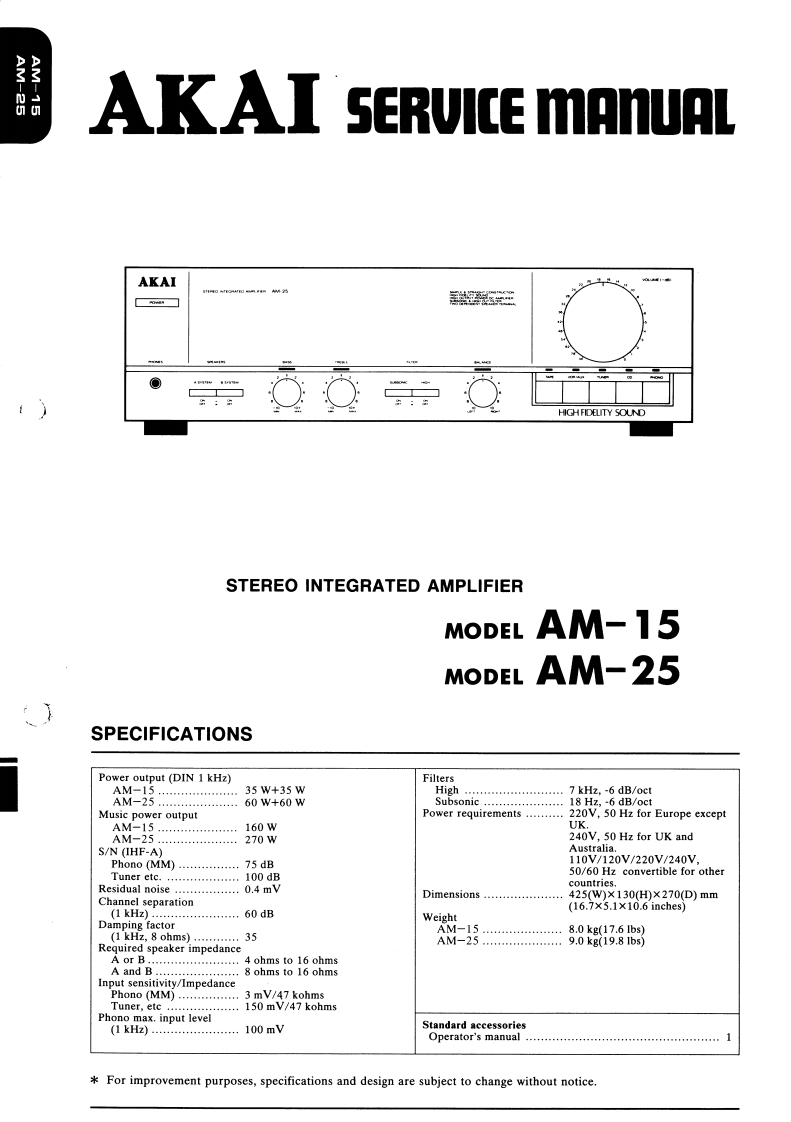

AM-15AM-2AKAI SERVICE mANUALAKAI☐巴品HIGH FIDEUTY SOUNDSTEREO INTEGRATED AMPLIFIERMODELAM-15MODELAM-25SPECIFICATIONSPower output(DIN 1 kHz)FiltersAM-1535W+35WHigh...7 kHz,-6 dB/octAM-25…60W+60wSubsonic18Hz,-6 dB/octMusic power outputPower requirements .........220V,50 Hz for Europe exceptAM-15160wUK.AM-25.270w240V,50 Hz for UK andS/N(IHF-A)AustraliaPhono (MM)...............75 dB110V/120V/220V/240V.Tuner etc........100dB50/60 Hz convertible for otherResidual noise .................0.4 mVcountries.Channel separationDimensions....425(w)×130(H)×270(D)mm(1kHz).(16.7×5.1×10.6 inches)60 dBWeightDamping factor(1kHz,8 ohms)............35AM-15.…8.0kg(17.61bs)AM-25Required speaker impedance…9.0kg(19.81b5)A or B..4ohms【0160hmsA and B......................8 ohms to 16 ohmsInput sensitivity/ImpedancePhono (MM)................3 mV/47 kohmsTuner,etc .........150 mV/47 kohmsPhono max.input level(1kHz）.100mVStandard accessoriesOperator's manualFor improvement purposes,specifications and design are subject to change without notice.
