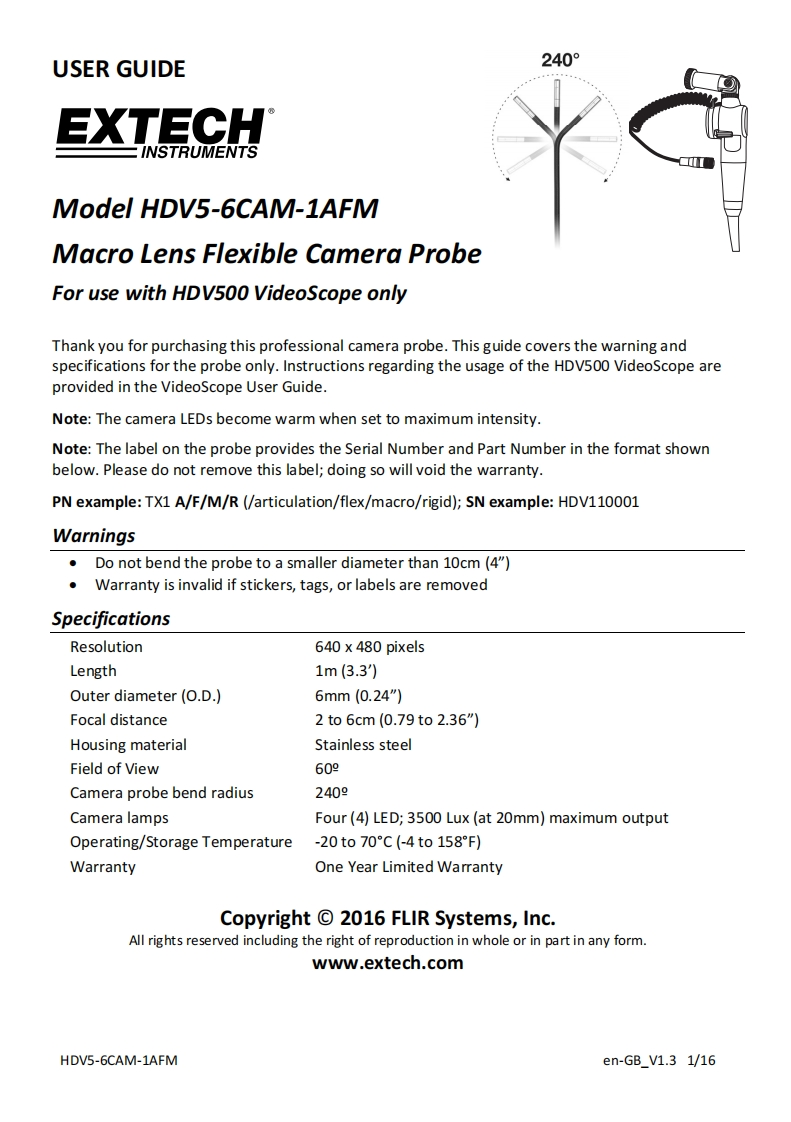

USER GUIDE240°EXTECH二INSTRUMENTSModel HDV5-6CAM-1AFMMacro Lens Flexible Camera ProbeFor use with HDV500 VideoScope onlyThank you for purchasing this professional camera probe.This guide covers the warning andspecifications for the probe only.Instructions regarding the usage of the HDV500 VideoScope areprovided in the VideoScope User Guide.Note:The camera LEDs become warm when set to maximum intensity.Note:The label on the probe provides the Serial Number and Part Number in the format shownbelow.Please do not remove this label;doing so will void the warranty.PN example:TX1 A/F/M/R (/articulation/flex/macro/rigid);SN example:HDV110001WarningsDo not bend the probe to a smaller diameter than 10cm(4")●Warranty is invalid if stickers,tags,or labels are removedSpecificationsResolution640 x 480 pixelsLength1m(3.3)Outer diameter(O.D.)6mm(0.24")Focal distance2to6cm(0.79to2.36")Housing materialStainless steelField of View609Camera probe bend radius2409Camera lampsFour(4)LED;3500 Lux (at 20mm)maximum outputOperating/Storage Temperature-20to70°℃(-4to158°F)WarrantyOne Year Limited WarrantyCopyright C 2016 FLIR Systems,Inc.All rights reserved including the right of reproduction in whole or in part in any form.www.extech.comHDV5-6CAM-1AFMen-GB_V1.31/16
