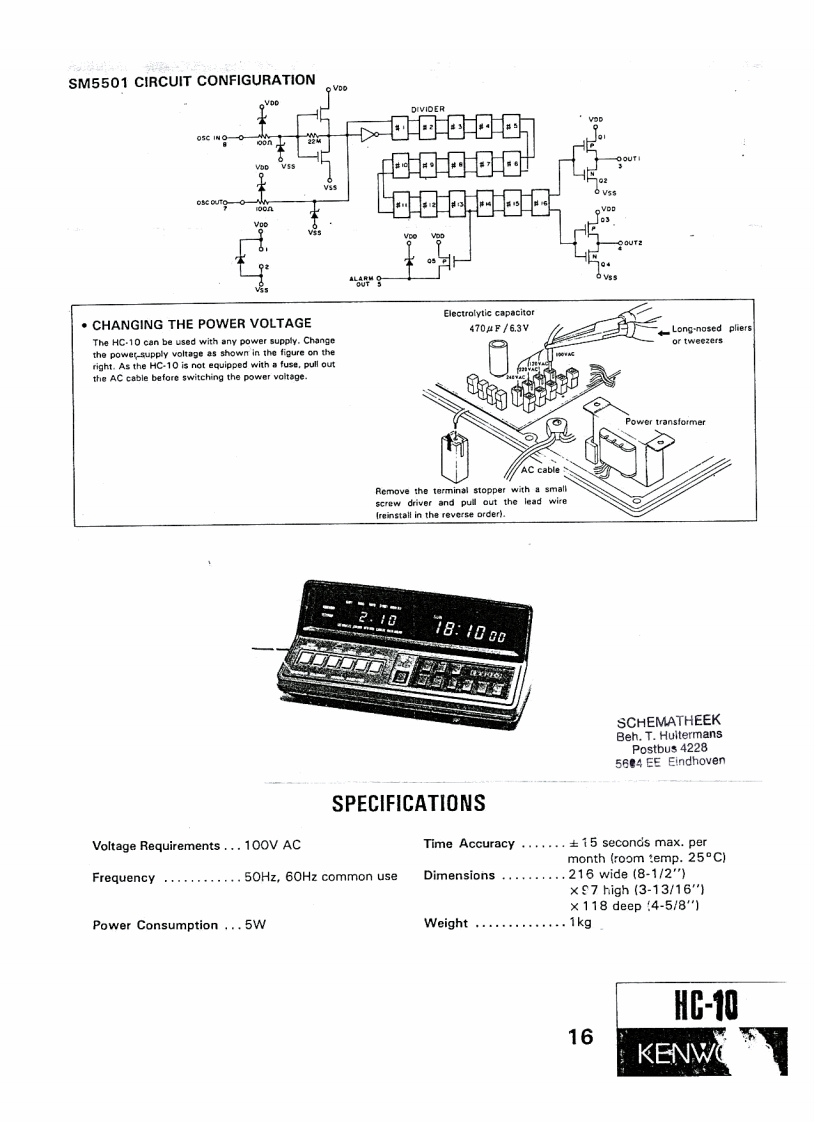

SM5501 CIRCUIT CONFIGURATION0⊙-00@H0EH@寸0-000090uT2gVssElectrolytic capacitorCHANGING THE POWER VOLTAGE4704F/6.3VLong-nosed pliersThe HC.10 can be used with any power supply.Changeor tweezersthe power-supply voltage as shown in the figure on theright.As the HC-10 is not equipped with a fuse,pull outthe AC cable before switching the power vaitagePower transformerAC cableRemove the terminal stopper with a smallscrew driver and pull out the lead wire(reinstall in the reverse order).78:108SCHEMATHEEKBeh.T.HuitermansPostbus 42285604 EE EindhovenSPECIFICATIONSVoltage Requirements...100V ACTime Accuracy.......+15 seconds max.permonth (room temp.25C)Frequency ............50Hz,60Hz common useDimensions..........216 wide (8-1/2")×S7high(3-13/16")×118deep(4-5/8“)Power Consumption...5WWeight ..............1kglC-1016KENWO
