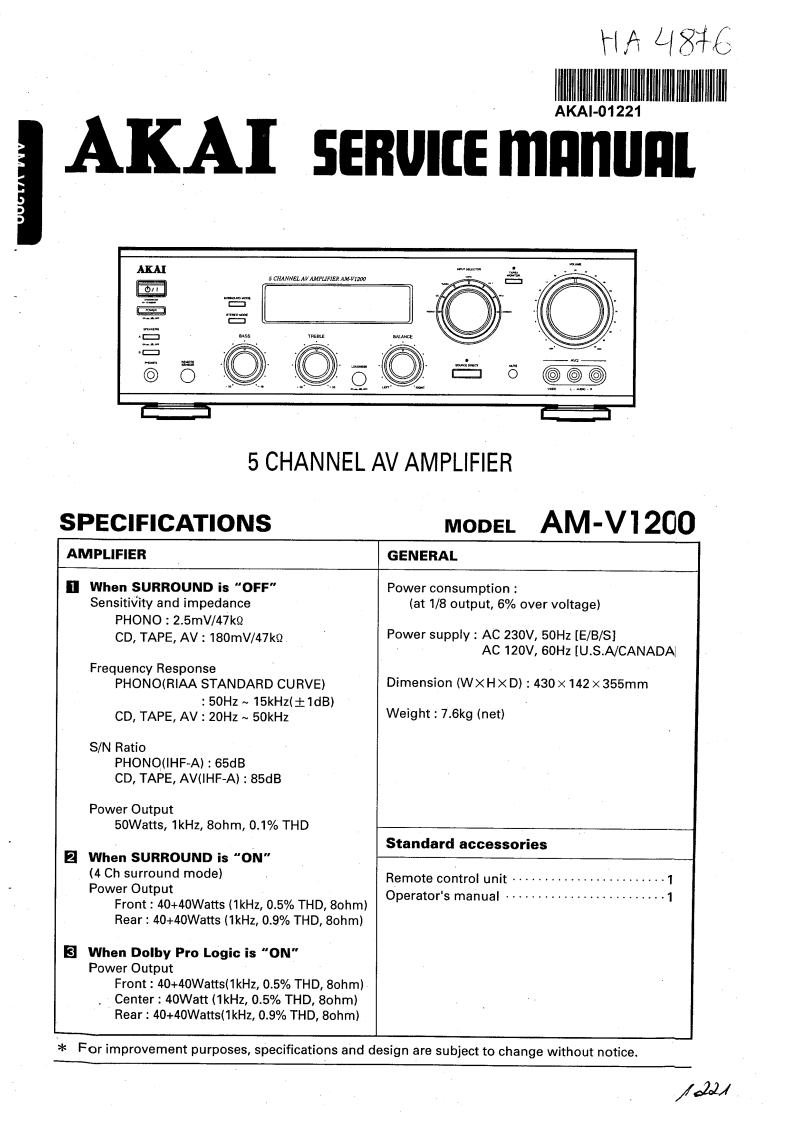

HA 4816AKAI-01221AKAI SERVICE MANUALAKAI@@@5 CHANNEL AV AMPLIFIERSPECIFICATIONSMODELAM-V1200AMPLIFIERGENERALWhen SURROUND is "OFF"Power consumptionSensitivity and impedance(at 1/8 output,6%over voltage)PHONO 2.5mV/47kgCD,TAPE,AV:180mV/47koPower supply AC 230V,50Hz [E/B/S]AC 120V,60Hz [U.S.A/CANADAIFrequency ResponsePHONO(RIAA STANDARD CURVE)Dimension(W×H×D):430×142×355mm:50Hz~15kHz(±1dB)CD,TAPE,AV 20Hz ~50kHzWeight:7.6kg(net)S/N RatioPHONO(IHF-A):65dBCD,TAPE,AV(IHF-A):85dBPower Output50Watts,1kHz,8ohm,0.1%THDStandard accessoriesWhen SURROUND is "ON"(4 Ch surround mode)Remote control unit…TPower OutputFront 40+40Watts (1kHz,0.5%THD,8ohm)Operator''s manual…1Rear 40+40Watts (1kHz,0.9%THD,8ohm)3When Dolby Pro Logic is "ON"Power OutputFront:40+40Watts(1kHz,0.5%THD,8ohm)Center 40Watt (1kHz,0.5%THD,8ohm)Rear:40+40Watts(1kHz,0.9%THD,8ohm)For improvement purposes,specifications and design are subject to change without notice.A22/
