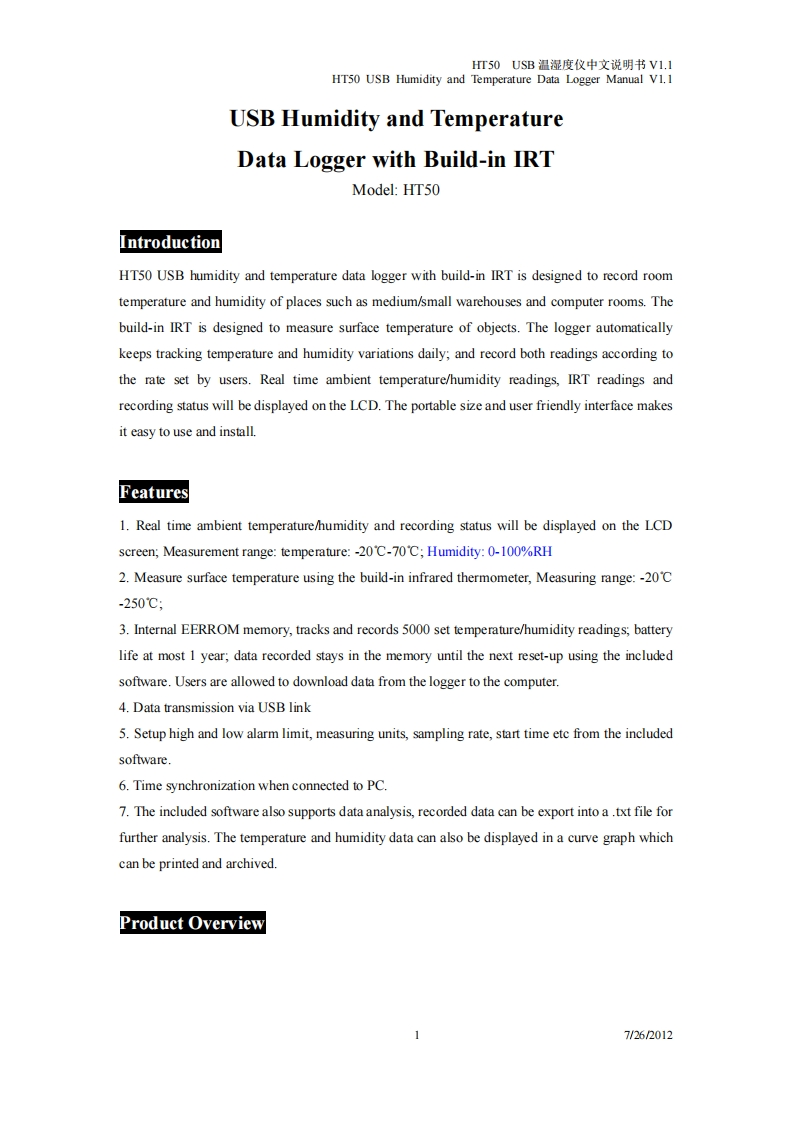

HT50USB温湿度仪中文说明书V1.1HT50 USB Humidity and Temperature Data Logger Manual V1.1USB Humidity and TemperatureData Logger with Build-in IRTModel:HT50IntroductionHT50 USB humidity and temperature data logger with build-in IRT is designed to record roomtemperature and humidity of places such as medium/small warehouses and computer rooms.Thebuild-in IRT is designed to measure surface temperature of objects.The logger automaticallykeeps tracking temperature and humidity variations daily;and record both readings according tothe rate set by users.Real time ambient temperature/humidity readings,IRT readings andrecording status will be displayed on the LCD.The portable size and user friendly interface makesit easy to use and install.Features1.Real time ambient temperature/humidity and recording status will be displayed on the LCDscreen;Measurement range:temperature:-20C-70'C;Humidity:0-100%RH2.Measure surface temperature using the build-in infrared thermometer,Measuring range:-20C-250℃；3.Internal EERROM memory,tracks and records 5000 set temperature/humidity readings;batterylife at most 1 year;data recorded stays in the memory until the next reset-up using the includedsoftware.Users are allowed to download data from the logger to the computer.4.Data transmission via USB link5.Setup high and low alarm limit,measuring units,sampling rate,start time etc from the includedsoftware.6.Time synchronization when connected to PC.7.The included software also supports data analysis,recorded data can be export into a.txt file forfurther analysis.The temperature and humidity data can also be displayed in a curve graph whichcan be printed and archived.Product Overview17/262012
