Akai-CDA70-cd-维修说明书手册含电器原理图

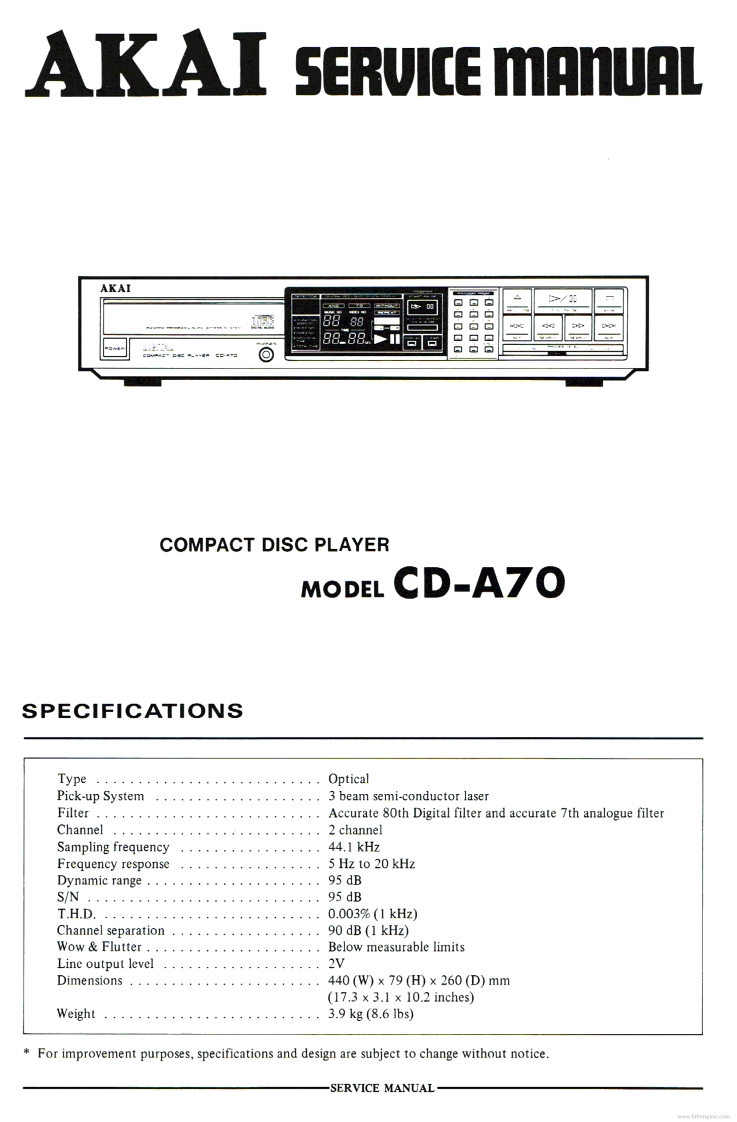

AKAI SERVICE mAnUALAKAI/口D88.88.回COMPACT DISC PLAYERMODELCD-A70SPECIFICATIONSType ..........................OpticalPick-up System....................3 beam semi-conductor laserFilter...Accurate 80th Digital filter and accurate 7th analogue filterChannel2 channelSampling frequency44.1 kHzFrequency response5 Hz to 20 kHzDynamic range ....................95 dB95 dBTHD.···0.003%(1kHz)Channel separation...·..,······90 dB (1 kHz)Wow FlutterBelow measurable limitsLine output level2VDimensions..···········440(W)×79(H)×260(D)mm(17.3×3.1×10.2 inches)Weight3.9kg(8.61bs)For improvement purposes,specifications and design are subject to change without noticeSERVICE MANUAL
