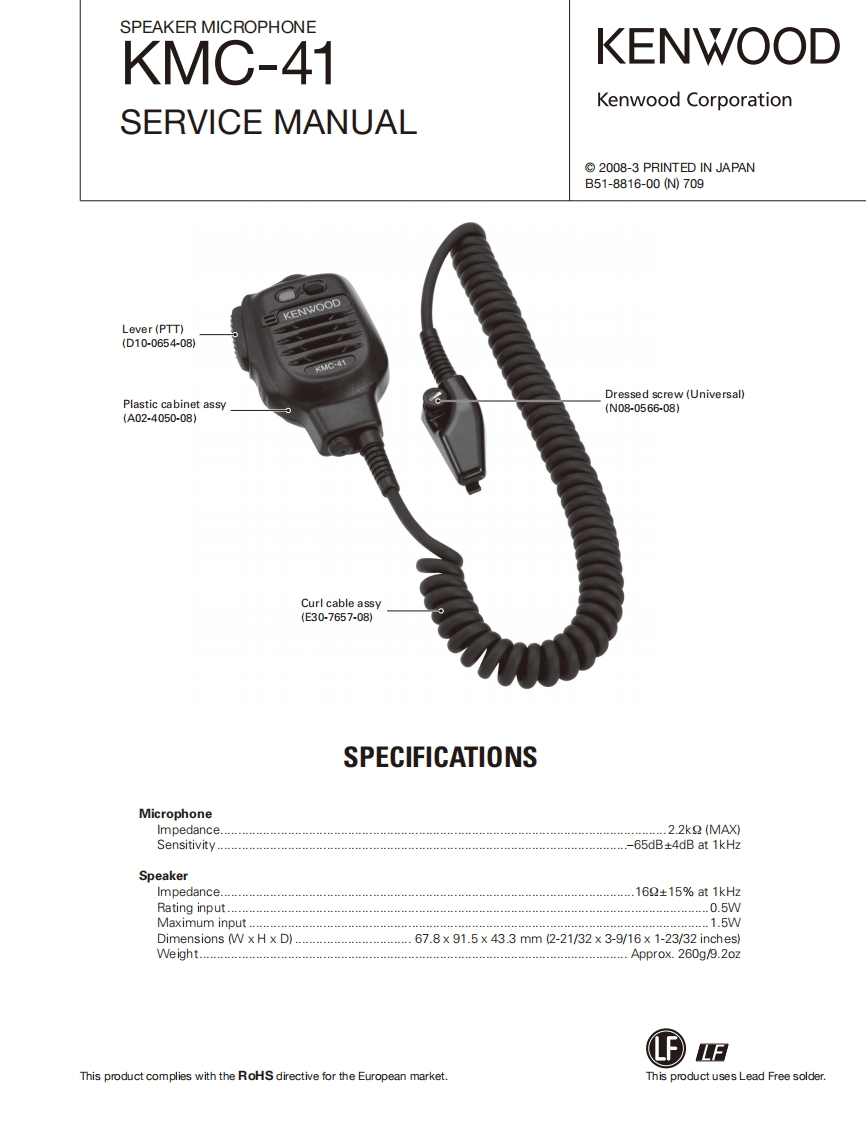

SPEAKER MICROPHONEKMC-41KENWOODKenwood CorporationSERVICE MANUAL2008-3 PRINTED IN JAPANB51-8816-00(N)709KENWOODLever(PTT)(D10-0654-08)Dressed screw(Universal)Plastic cabinet assy(N08-0566-08)(A02.4050-08)Curl cable assy(E30-7657-08)SPECIFICATIONSMicrophoneImpedance2.2kg (MAX)Sensitivity.........-65dB±4dBat1kHzSpeakermpedance......…...…..….160±15%at1kHzR治ting input..................……….…………....…….…......0.5WMaximum input........…..……...1.5WDimensions (W x H x D)67.8×91.5×43.3mm2-21/32×3-9/16×1-23/32 inchesWeight.........Approx.260g/9.2ozLFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.
