Akai-GX75MKll-tape-维修说明书手册含电器原理图

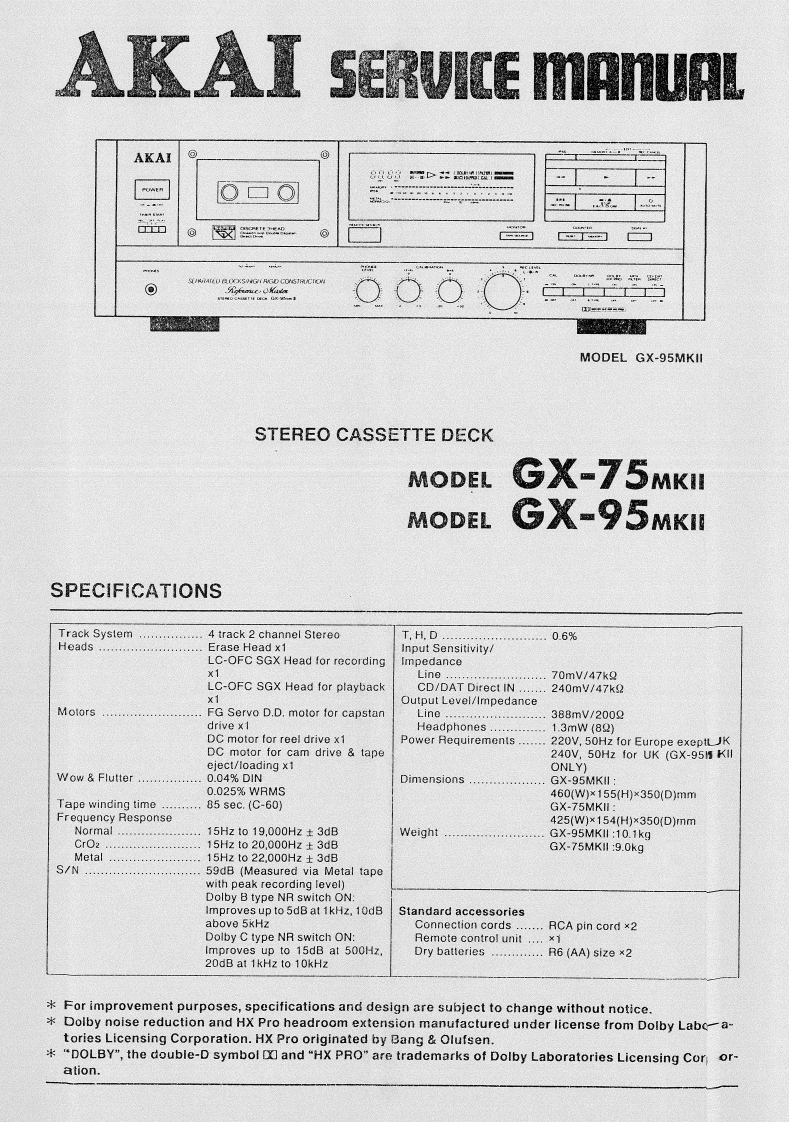

AKAIAKAI88888O▣O@智】MODEL GX-95MKIISTEREO CASSETTE DECKMODELGX-75MKIIMODELGX-95MKIISPECIFICATIONSTrack System.…4 track 2 channel StereoT,H.D....0.6%HeadsErase Head x1Input Sensitivity/LC-OFC SGX Head for recordingImpedancex1Line .70mV/47kQLC-OFC SGX Head for playbackCD/DAT Direct IN ......240mV/47k2x1Output Level/ImpedanceMotorsFG Servo D.D.motor for capstanLin0.38BmV/200Qdrive x1Headphones..............1.3mw(82DC motor for reel drive x1Power Requirements220V,50Hz for Europe exeptKDC motor for cam drive tape240V,50Hz for UK (GX-951 KIleject/loading x1ONLY)Wow Flutter0.04%D1NDimensions ..................GX-95MKIl:0.025%WRMS460(W×155(H)×350(D)mmTape winding time..85 sec.(C-60)GX-75MKII:Frequency Response425(W)×154(H)×350(D)rmmNormal ....................15Hzto19,000Hz±3dBWeightGX-95MKIl 10.1kgCrO215Hzto20,000Hz±3dBGX-75MKIl :9.0kgMetal15Hzto22.000Hz±3dBS/N....59dB (Measured via Metal tapewith peak recording level)Dolby B type NR switch ON:Improves up to 5dB at 1kHz,10dBStandard accessoriesabove 5kHzDolby C type NR switch ON:Connection cords.......RCA pin cord x2Remote control unit ...x1Improves up to 15dB at 500HzDry batteries..............R6 (AA)size x220dB at 1kHz to 10kHzFor improvement purposes,specifications and design are subject to change without notice.Dolby noise reduction and HX Pro headroom extension manufactured under license from Dolby Labo-a-tories Licensing Corporation.HX Pro originated by Bang Olufsen.*"DOLBY",the double-D symbol and"HX PRO"are trademarks of Dolby Laboratories Licensing Cor or-ation.
