Kenwood_TK-690H_B_维修维护电器原理图手册

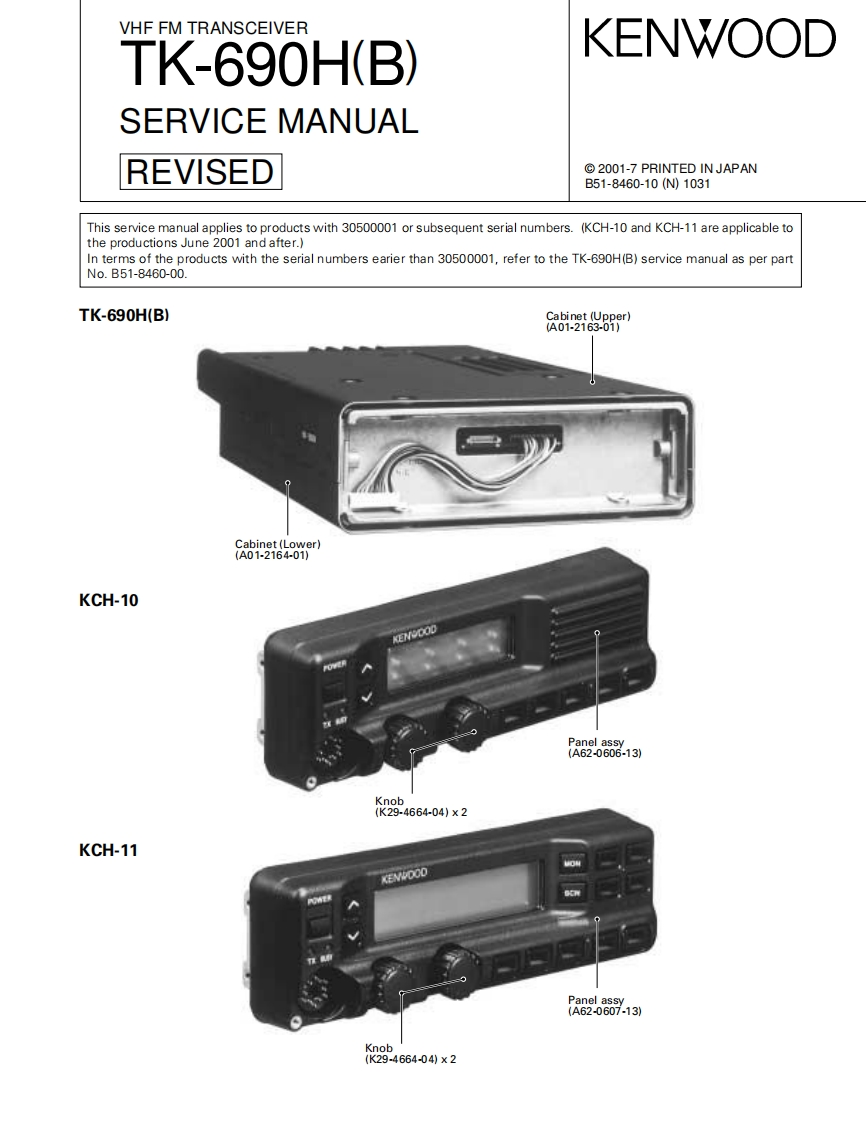

VHF FM TRANSCEIVERTK-690H(B)KENWOODSERVICE MANUALREVISED2001-7 PRINTED IN JAPANB51-8460-10(N)1031This service manual applies to products with 30500001 or subsequent serial numbers.(KCH-10 and KCH-11 are applicable tothe productions June 2001 and after.)In terms of the products with the serial numbers earier than 30500001,refer to the TK-690H(B)service manual as per partNo.B51-8460-00.TK-690H(B)a6028eCabinet(Lower)(A01-2164-01)KCH-10Panel assy(A62-0606-13)Knob(K29-4664-04)×2KCH-11EV000Panel assy(A62-0607-13)Knob(K29-4664-04)x2
