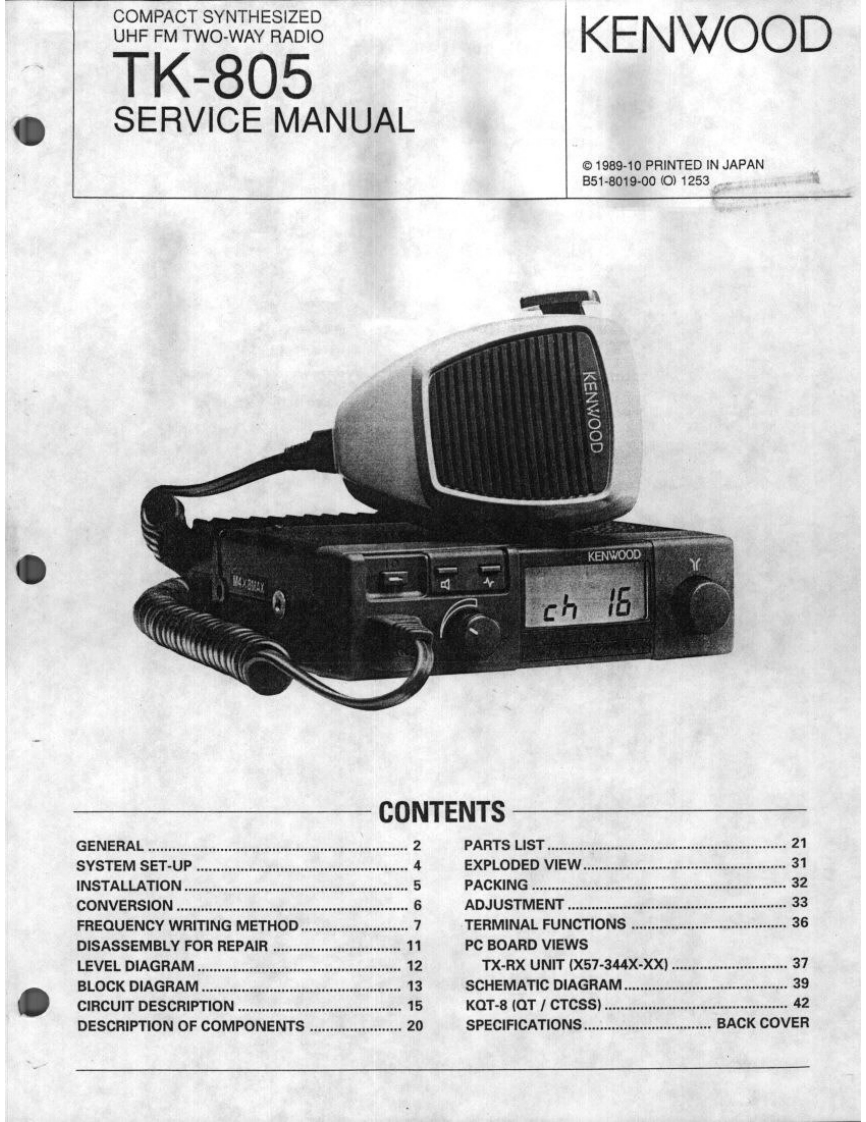

COMPACT SYNTHESIZEDUHF FM TWO-WAY RADIOKENWOODTK-805SERVICE MANUAL1989-10 PRINTED IN JAPANB51-8019-000)1253KENWOODKENWOODch 16CONTENTSGENERAL2PARTS LIST…21SYSTEM SET-UP…4EXPLODED VIEW......31INSTALLATION5PACKING…32CONVERSION..............6ADJUSTMENT............33FREQUENCY WRITING METHOD.7TERMINAL FUNCTIONS...36DISASSEMBLY FOR REPAIR..11PC BOARD VIEWSLEVELDIAGRAM....12TX-RX UNIT (X57-344X-XX).37BLOCK DIAGRAM…13SCHEMATIC DIAGRAM........................39CIRCUIT DESCRIPTION.5KQT-8(QT/CTCSS)…42DESCRIPTION OF COMPONENTS...20SPECIFICATIONS.BACK COVER
