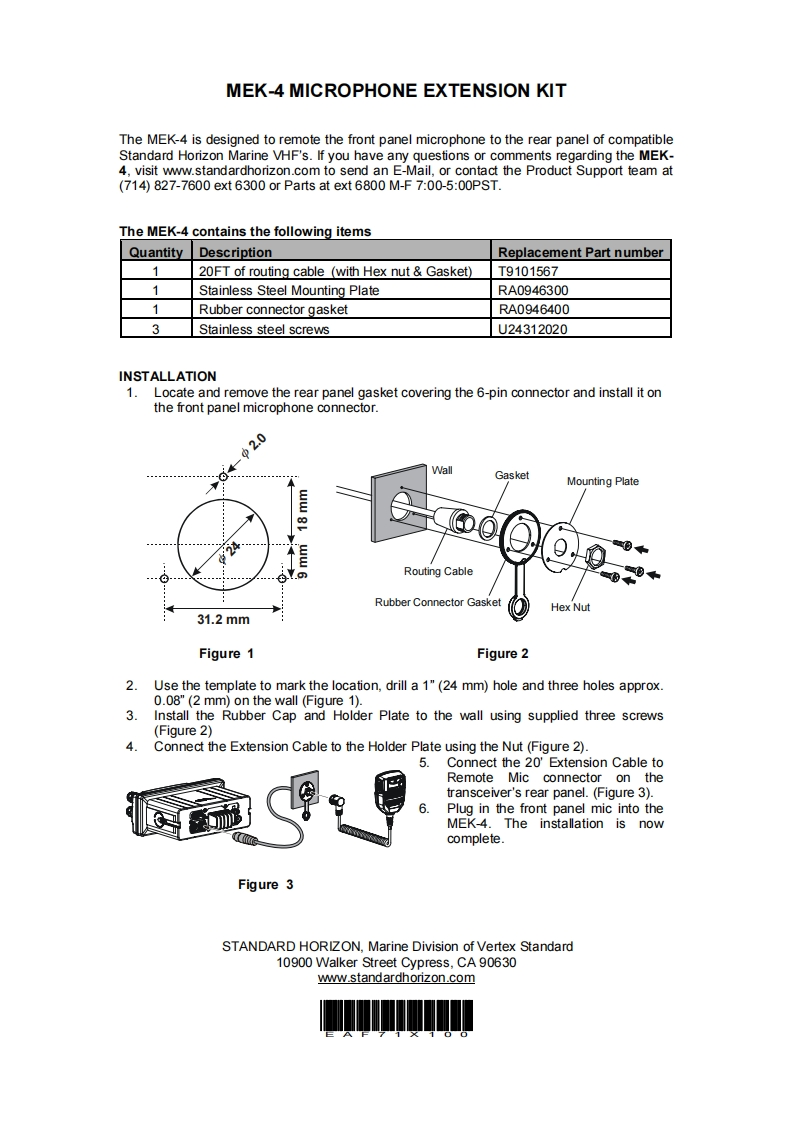

MEK-4 MICROPHONE EXTENSION KITThe MEK-4 is designed to remote the front panel microphone to the rear panel of compatibleStandard Horizon Marine VHF's.If you have any questions or comments regarding the MEK-4,visit ww.standardhorizon.com to send an E-Mail,or contact the Product Support team at(714)827-7600ext6300 or Parts at ext6800M-F7:00-5:00PST.The MEK-4 contains the following itemsQuantityDescriptionReplacement Part number120FT of routing cable (with Hex nut Gasket)T9101567Stainless Steel Mounting PlateRA09463001Rubber connector gasketRA09464003Stainless steel screwsU24312020INSTALLATION1.Locate and remove the rear panel gasket covering the 6-pin connector and install it onthe front panel microphone connector.20WallGasketMounting Platewwe世24wwoRouting CableRubber Connector GasketHex Nut31.2mmFigure 1Figure 22.Use the template to mark the location,drill a 1"(24 mm)hole and three holes approx.0.08"(2 mm)on the wall (Figure 1).3Install the Rubber Cap and Holder Plate to the wall using supplied three screws(Figure 2)4.Connect the Extension Cable to the Holder Plate using the Nut (Figure 2).Connect the 20'Extension Cable toRemote Mic connector on thetransceiver's rear panel.(Figure 3).6Plug in the front panel mic into theMEK-4.The installation is nowcomplete.Figure 3STANDARD HORIZON.Marine Division of Vertex Standard10900 Walker Street Cypress,CA 90630ww.standardhorizon.com
