手册编号259：ICOM-IC-718_维修说明书手册_addendum_2015

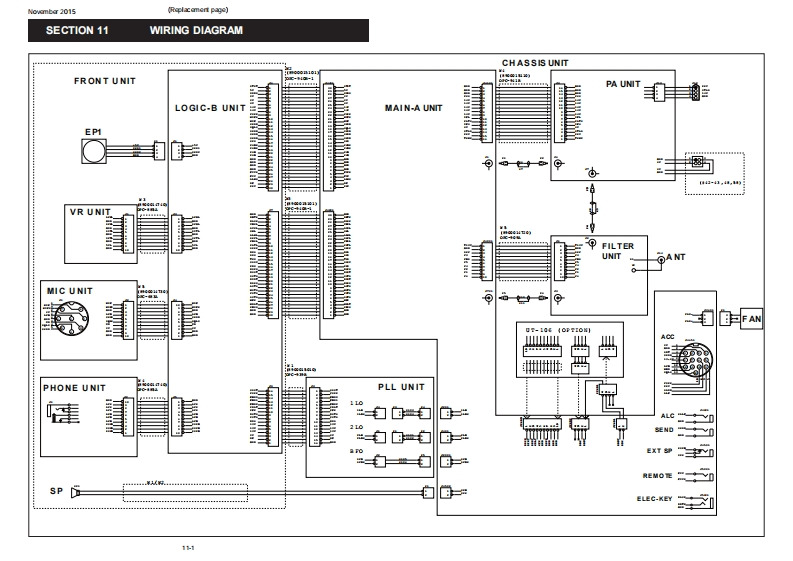

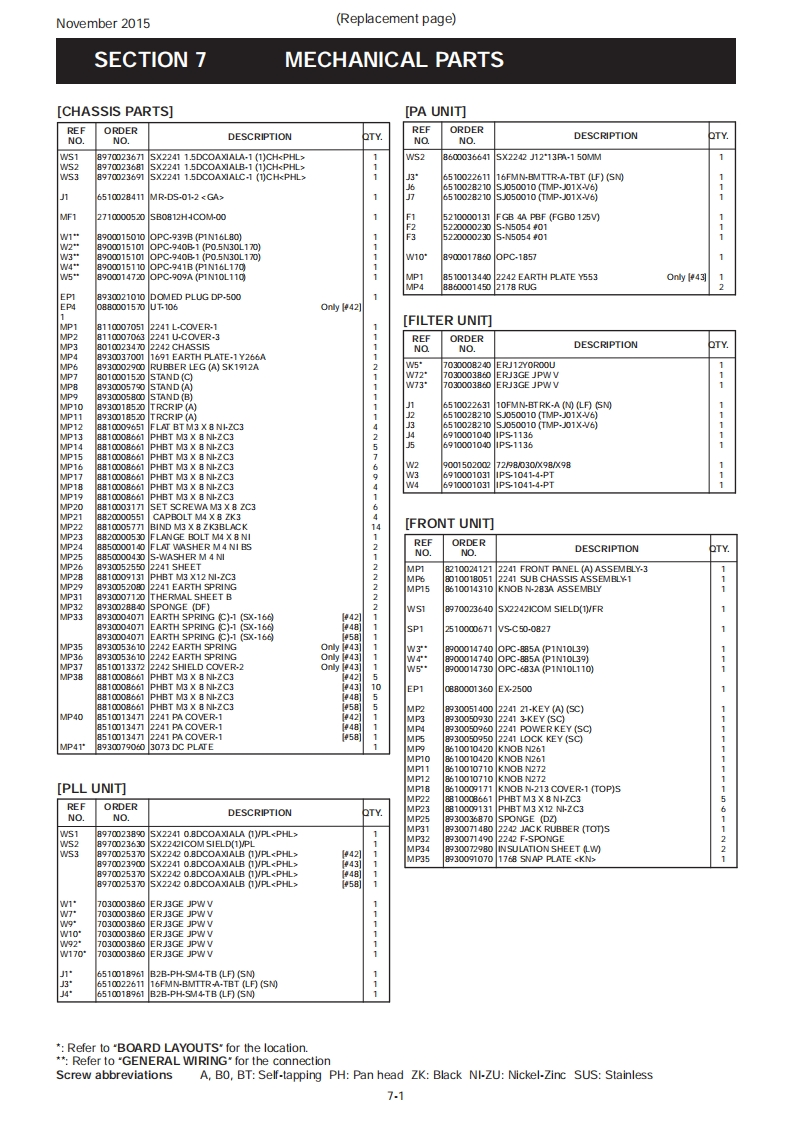

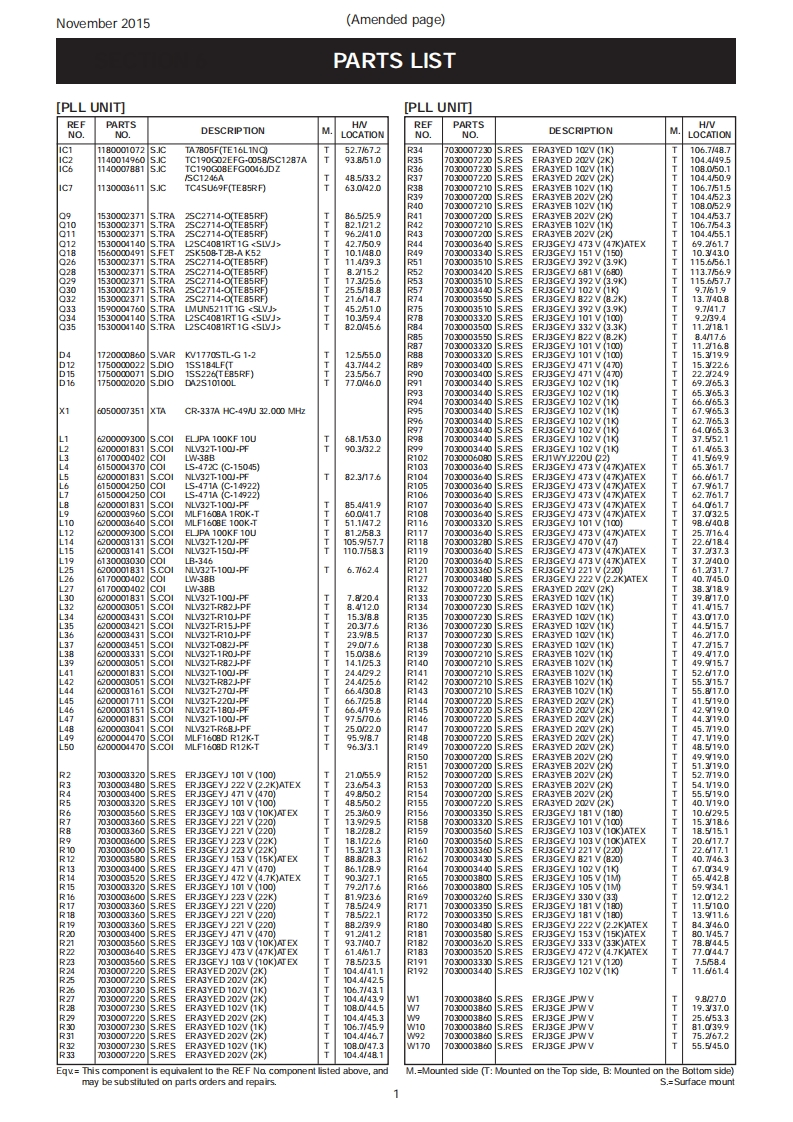

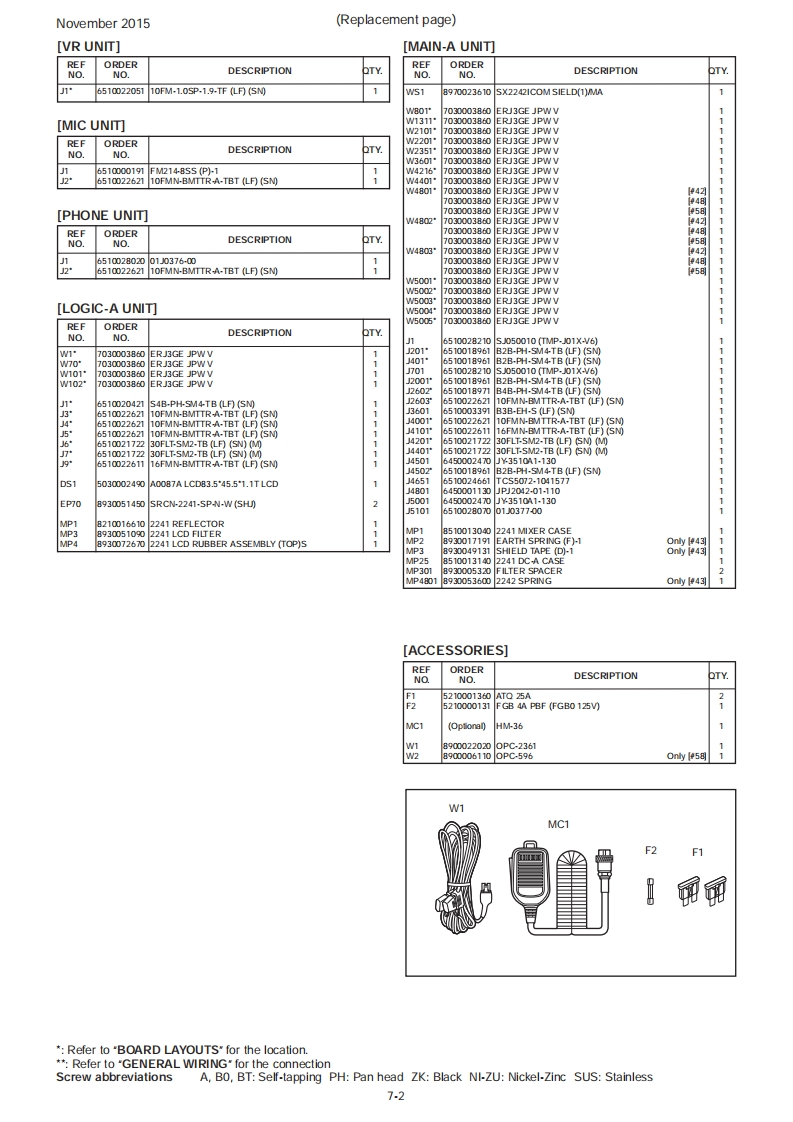

November 2015iCOMSERVICE MANUALADDENDUM1C-718NOTE:Use these amended pages as one addendum set.Do not mix them up with the previous master pages.CONTENTSREPLACEMENT PAGES...............................7-1,7-2and11-1AMENDED PAGES:PARTS LIST..·7B0 ARD LAYOUTS........................14(MAIN-A UNIT:B-7725G,PLL UNIT:B-8298A,FILTER UNIT:B-53811,MIC UNIT:B-7562A,PHONE UNIT:B-7563A,TRIMMER UNIT:B-8304)VOLTAGEDIAGRAM..................................20
