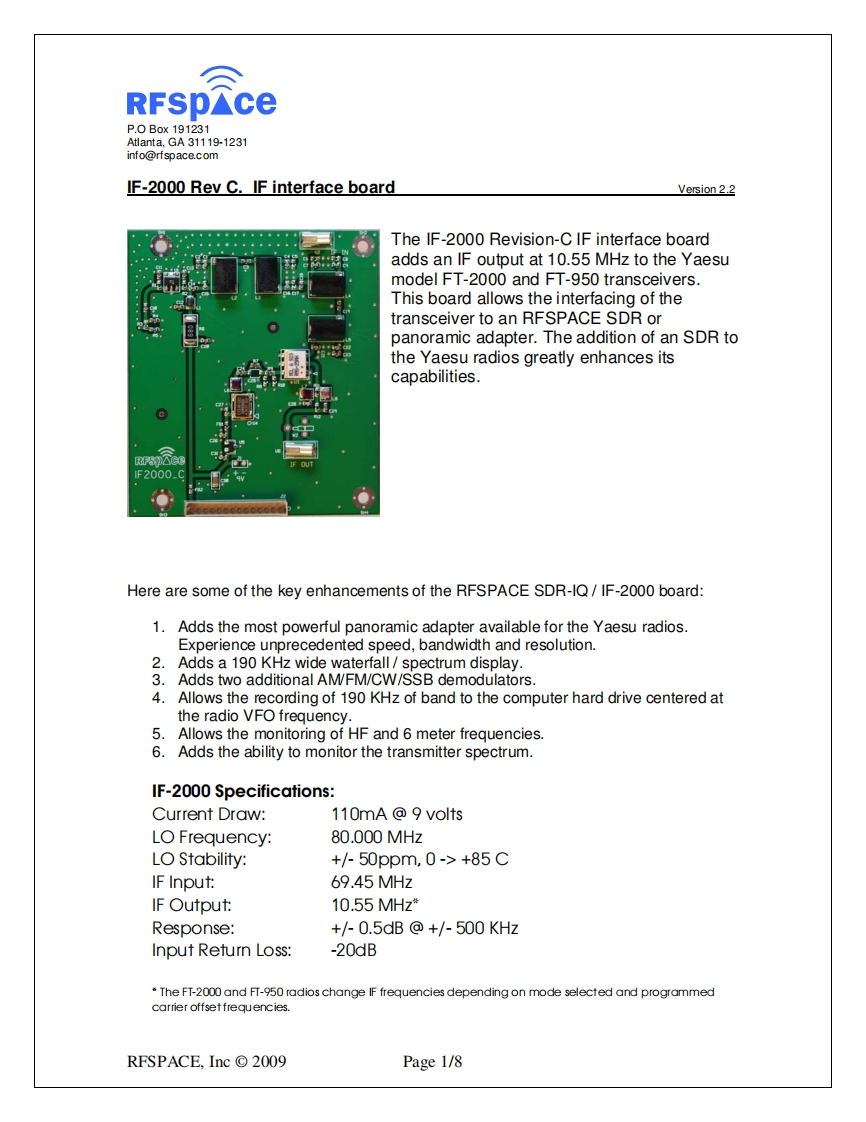

RFsp金ceP.0Box191231Atlanta,GA 31119-1231info@rfspace.comIF-2000 Rev C.IF interface boardVersion2.2The IF-2000 Revision-C IF interface boardadds an IF output at 10.55 MHz to the Yaesumodel FT-2000 and FT-950 transceivers.This board allows the interfacing of thetransceiver to an RFSPACE SDR orpanoramic adapter.The addition of an SDR tothe Yaesu radios greatly enhances itscapabilities.F2000.0Here are some of the key enhancements of the RFSPACE SDR-IQ/IF-2000 board:1.Adds the most powerful panoramic adapter available for the Yaesu radios.Experience unprecedented speed,bandwidth and resolution.2.Adds a 190 KHz wide waterfall/spectrum display.3.Adds two additional AMFM/CW/SSB demodulators4.Allows the recording of 190 KHz of band to the computer hard drive centered atthe radio VFO frequency.5.Allows the monitoring of HF and 6 meter frequencies6.Adds the ability to monitor the transmitter spectrum.IF-2000 Specifications:Current Draw:110mA@9 voltsLO Frequency:80.000MHzLO Stability:+/50ppm,0->+85CIF Input:69.45MHzIF Output:10.55MHzResponse:+/0.5dB@+/-500KHzInput Return Loss:-20dBThe FT-2000 and FT-950 radios change IF frequencies depending on mode selected and programmedcarrier offset frequencies.RFSPACE,Inc©2009Page 1/8
