八重洲Yaesu_FP-30_serv维修手册含电器原理图

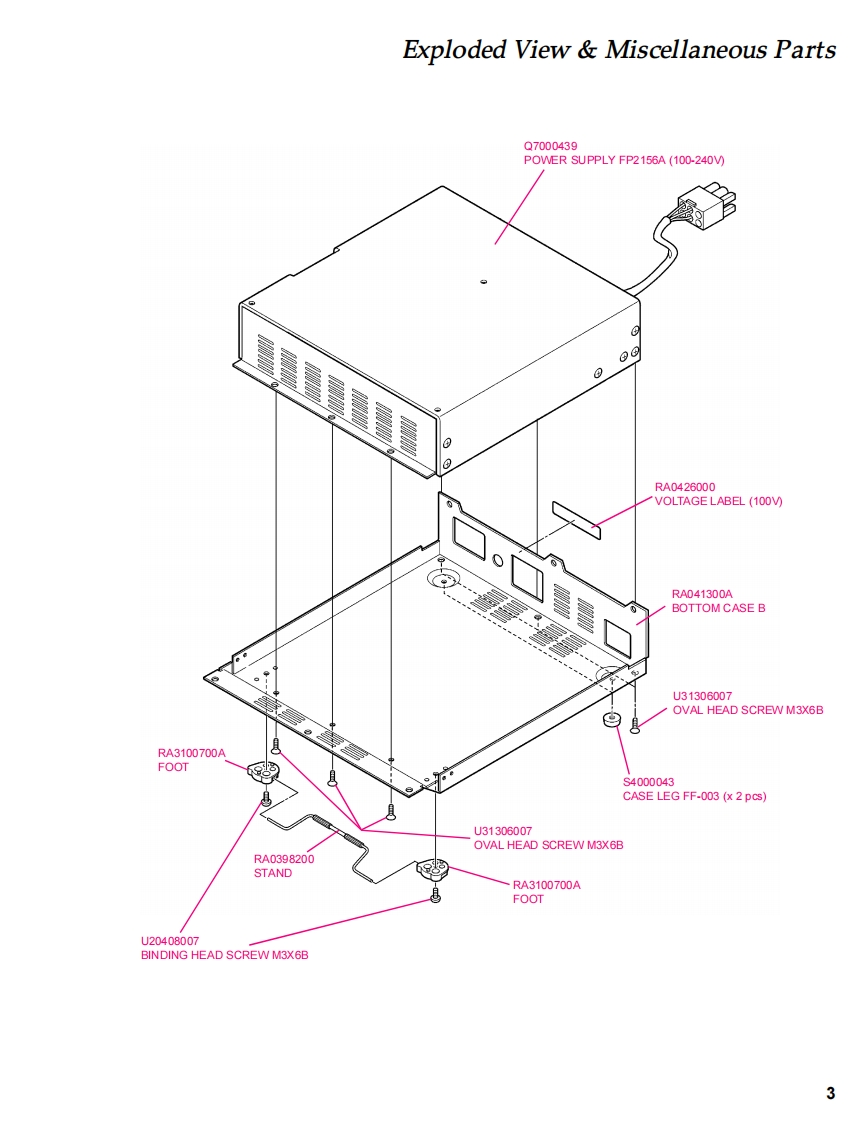

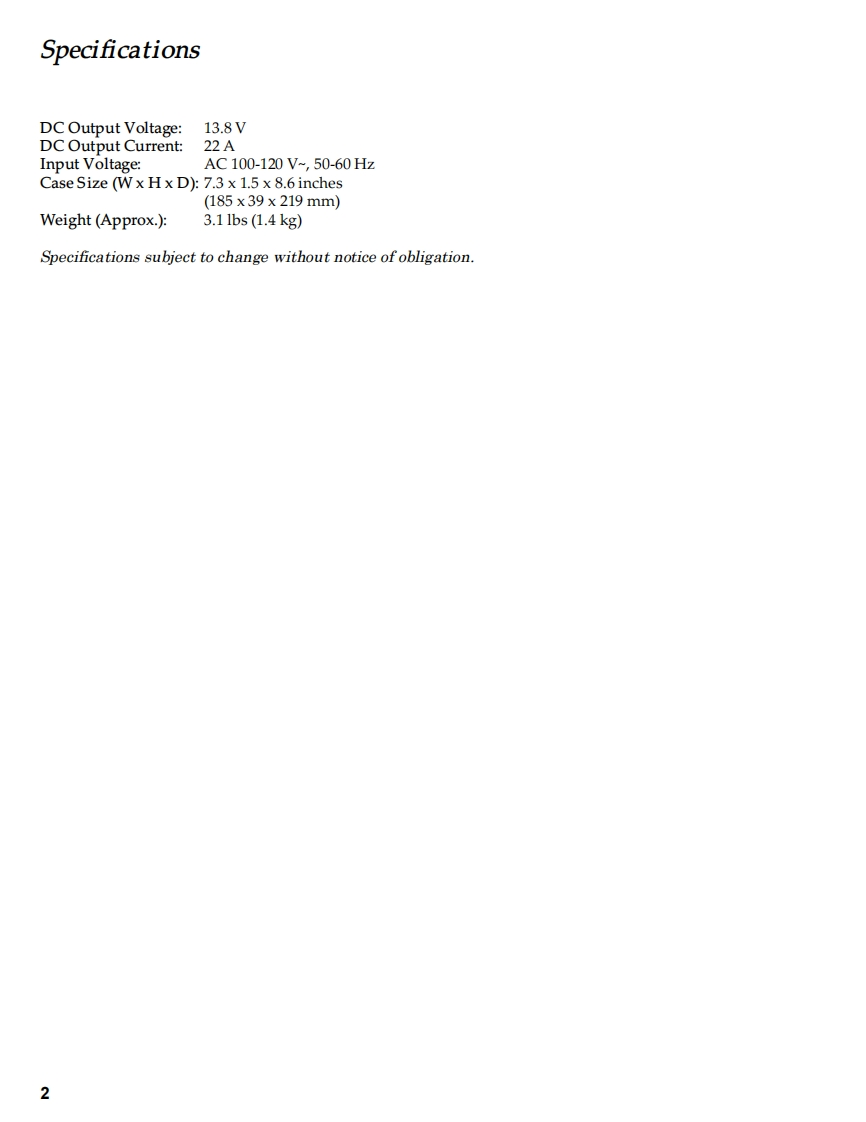

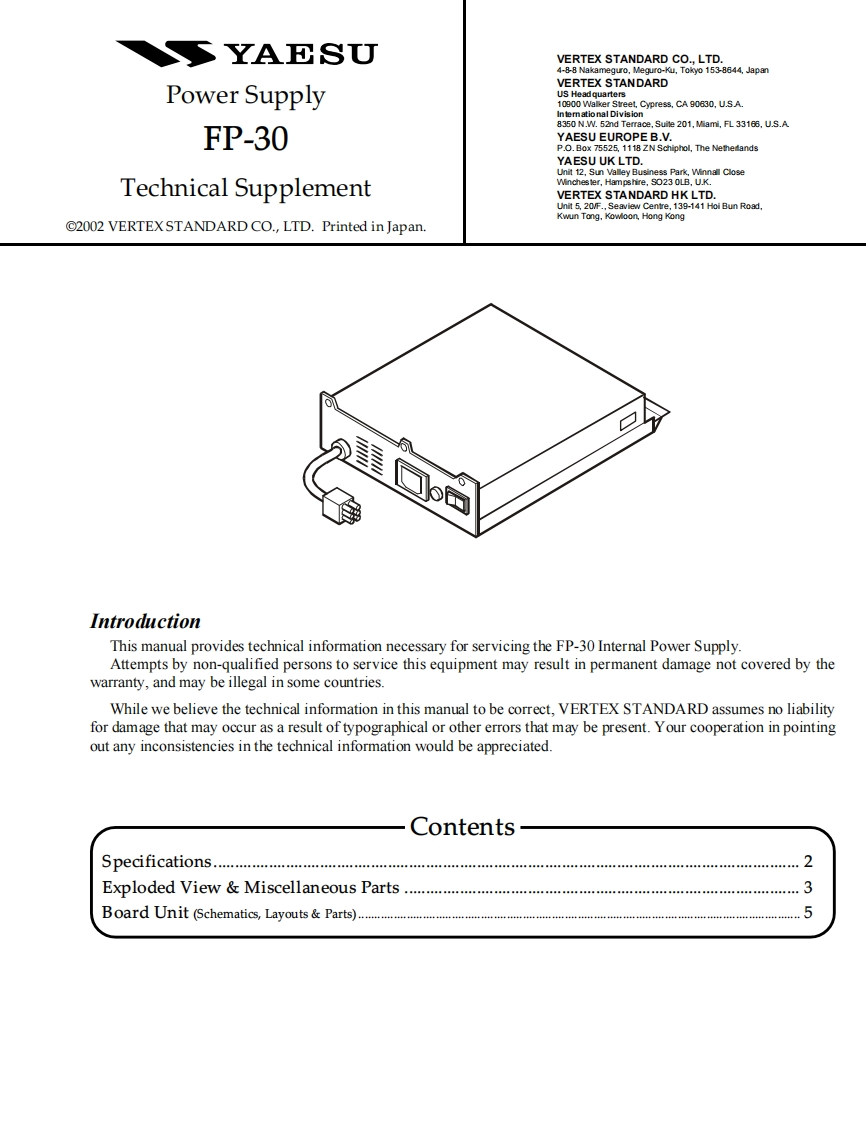

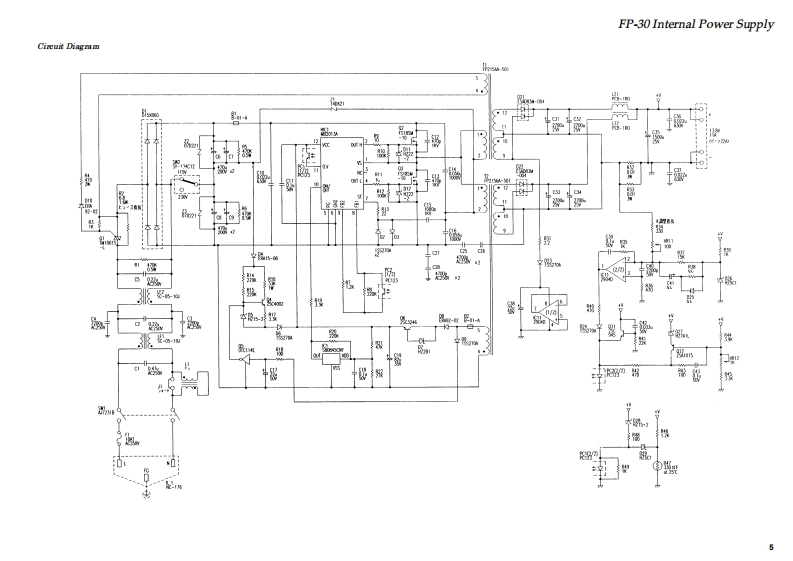

YAESUVERTEX STANDARD CO.,LTD.4-8-8 Nakameguro,Meguro-Ku,Tokyo 153-8644,JapanVERTEX STANDARDPower SupplyUS Head quarters10900 Walker Street,Cypress,CA 90630,U.SA.Intemnational Division8350 N.W.52nd Terrace,Suite 201,Miami,FL 33166,U.S.AFP-30YAESU EUROPE B.V.P.O.Box 75525,1118 ZN Schiphol,The NethedandsYAESU UK LTD.Unit 12,Sun Valley Business Park,Winnall CloseTechnical SupplementWinches ter,Hampshire,S023 0LB,U.K.VERTEX STANDARD HK LTD.Unit 5,20/F.,Seaview Centre,139-141 Hoi Bun Road,Kwun Tong.Kowloon,Hong Kong@2002 VERTEX STANDARD CO.,LTD.Printed in Japan.IntroductionThis manual provides technical information necessary for servicing the FP-30 Internal Power Supply.Attempts by non-qualified persons to service this equipment may result in permanent damage not covered by thewarranty,and may be illegal in some countries.While we believe the technical information in this manual to be correct,VERTEX STANDARD assumes no liabilityfor damage that may occur as a result of typographical or other errors that may be present.Your cooperation in pointingout any inconsistencies in the technical information would be appreciated.ContentsSpecifications.….2Exploded View Miscellaneous Parts.....3Board Unit (Schematics,Layouts Parts).5
