GX5500S_操作说明书手册_USA_ENG_EM028N208_5292013

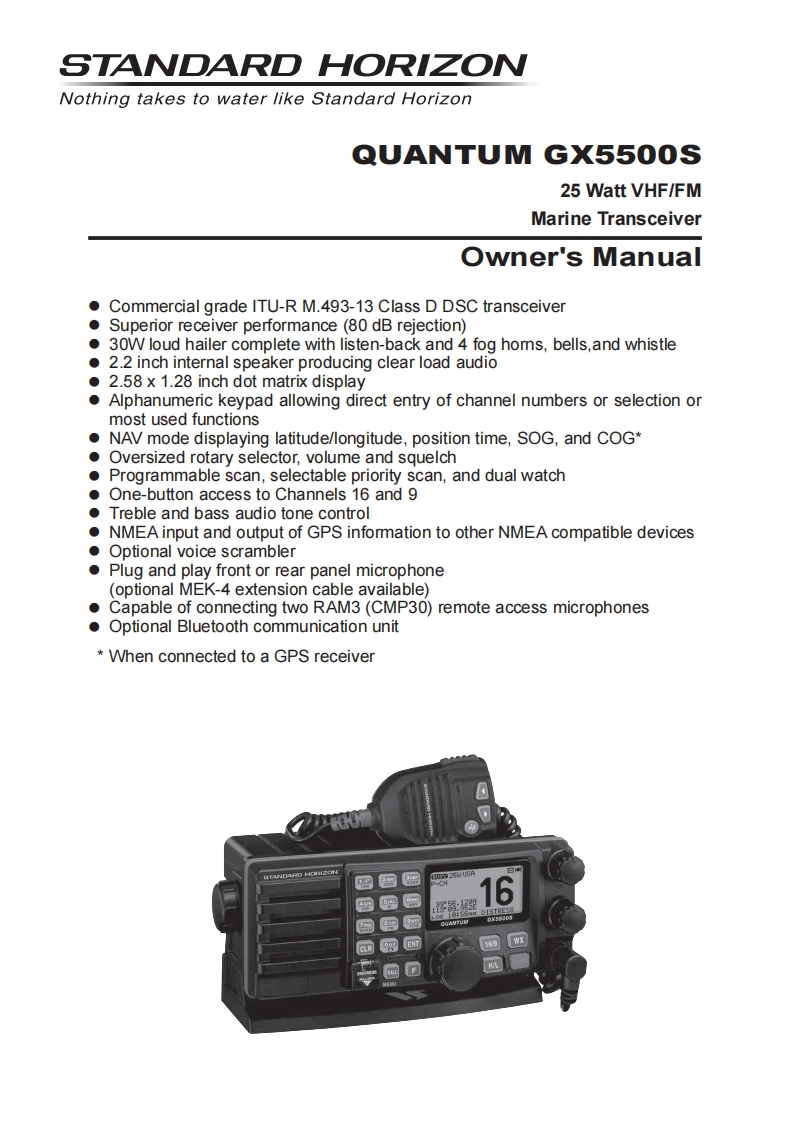

STANDARD HORIZONNothing takes to water like Standard HorizonQUANTUM GX5500S25 Watt VHF/FMMarine TransceiverOwner's ManualCommercial grade ITU-R M.493-13 Class D DSC transceiverSuperior receiver performance (80 dB rejection)30W loud hailer complete with listen-back and 4 fog homs,bells,and whistle2.2 inch internal speaker producing clear load audio2.58 x 1.28 inch dot matrix displayAlphanumeric keypad allowing direct entry of channel numbers or selection ormost used functionsNAV mode displaying latitude/longitude,position time,SOG,and COG*Oversized rotary selector,volume and squelchProgrammable scan,selectable priority scan,and dual watchOne-button access to Channels 16 and 9Treble and bass audio tone controlNMEA input and output of GPS information to other NMEA compatible devicesOptional voice scramblerPlug and play front or rear panel microphone(optional MEK-4 extension cable available)Capable of connecting two RAM3(CMP30)remote access microphonesOptional Bluetooth communication unitWhen connected to a GPS receiverANDARD HORIZON16
